file info

This block is part of the files group and was last modified in core v15.0.0.

file info v13.0.9 Updated v15.0.0

Get metadata for a file.

In pins 3 + flow
  • flow
  • Connection lxdconnection required

    The LXD connection

  • Instance name value required

    The name of the instance for this action.

  • path value required

    Path to the file.

Out pins 6 + flow
  • flow
  • Connection lxdconnection

    The LXD connection

  • Success condition

    If successful, this pin returns true.

  • type value

    Type of file (file, symlink or directory).

  • mode value

    Mode mask

  • modified value

    Last modified date

  • Error value

    Error message if the file could not be deleted.

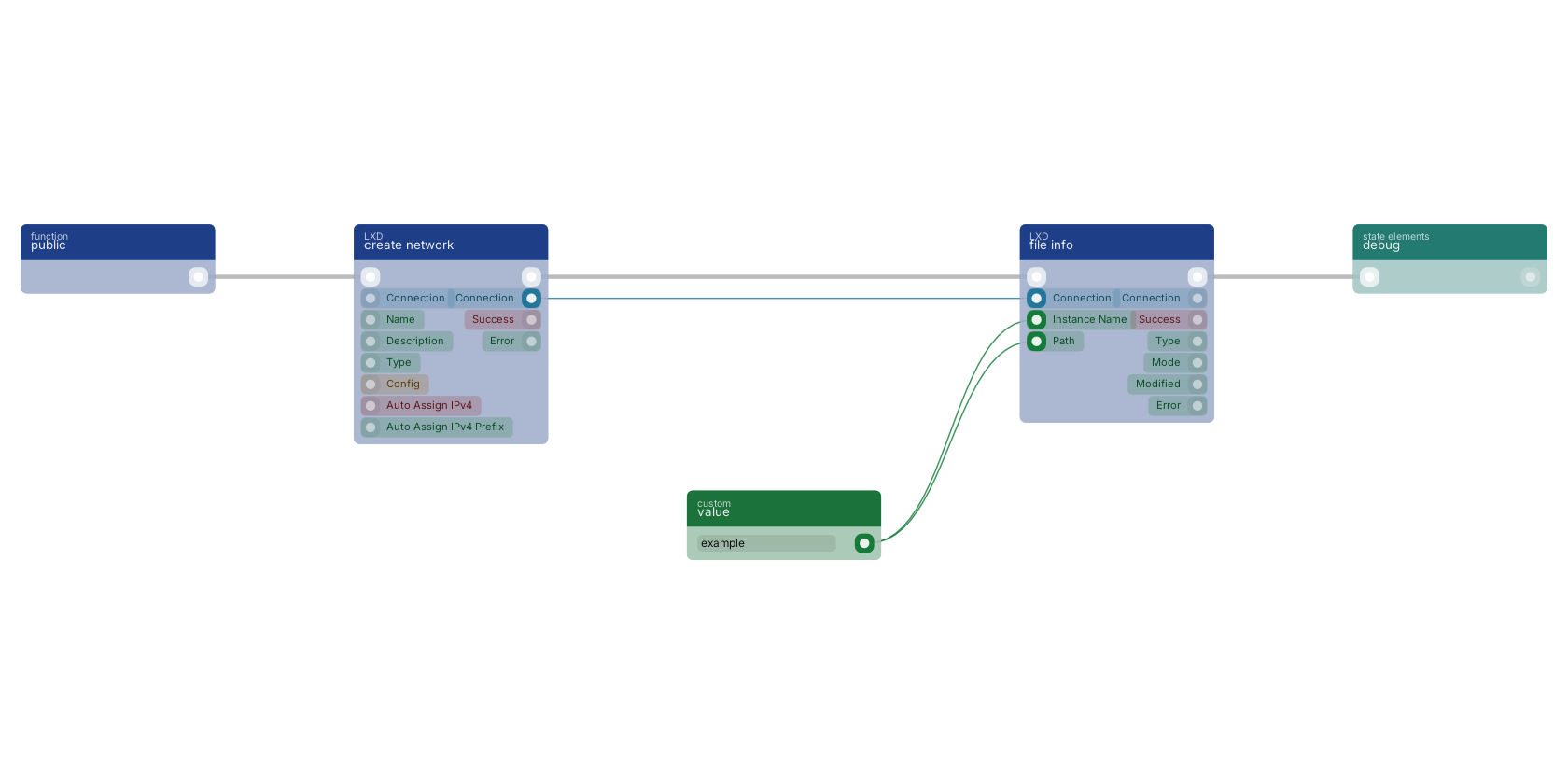

A typical wiring for file info: a function trigger starts the flow; create network feeds the connection pin; value feeds the instance_name pin; value feeds the path pin; the flow out pin feeds debug.

Studio canvas example for the file info block: typical wiring for file info.

Version history

Introduced in v13.0.9.

Last modified in v15.0.0.
