sequence

This block is part of the flow group and was last modified in core v10.4.28.

sequence execute_function v10.4.28

In pins 0 + flow

flow
flow

Out pins 4 + flow

Then 1
execute_function
Then 2
execute_function
Then 3
execute_function
Then 4
execute_function
Done
flow

Runs the functions wired to then_1..then_4 one after another in pin order, then continues on done. Each function's shared state is merged back before the next starts, so a later function sees variables set by an earlier one. A failing function aborts the block as an execution error : later functions and the done pin are not reached. Unwired pins are skipped.

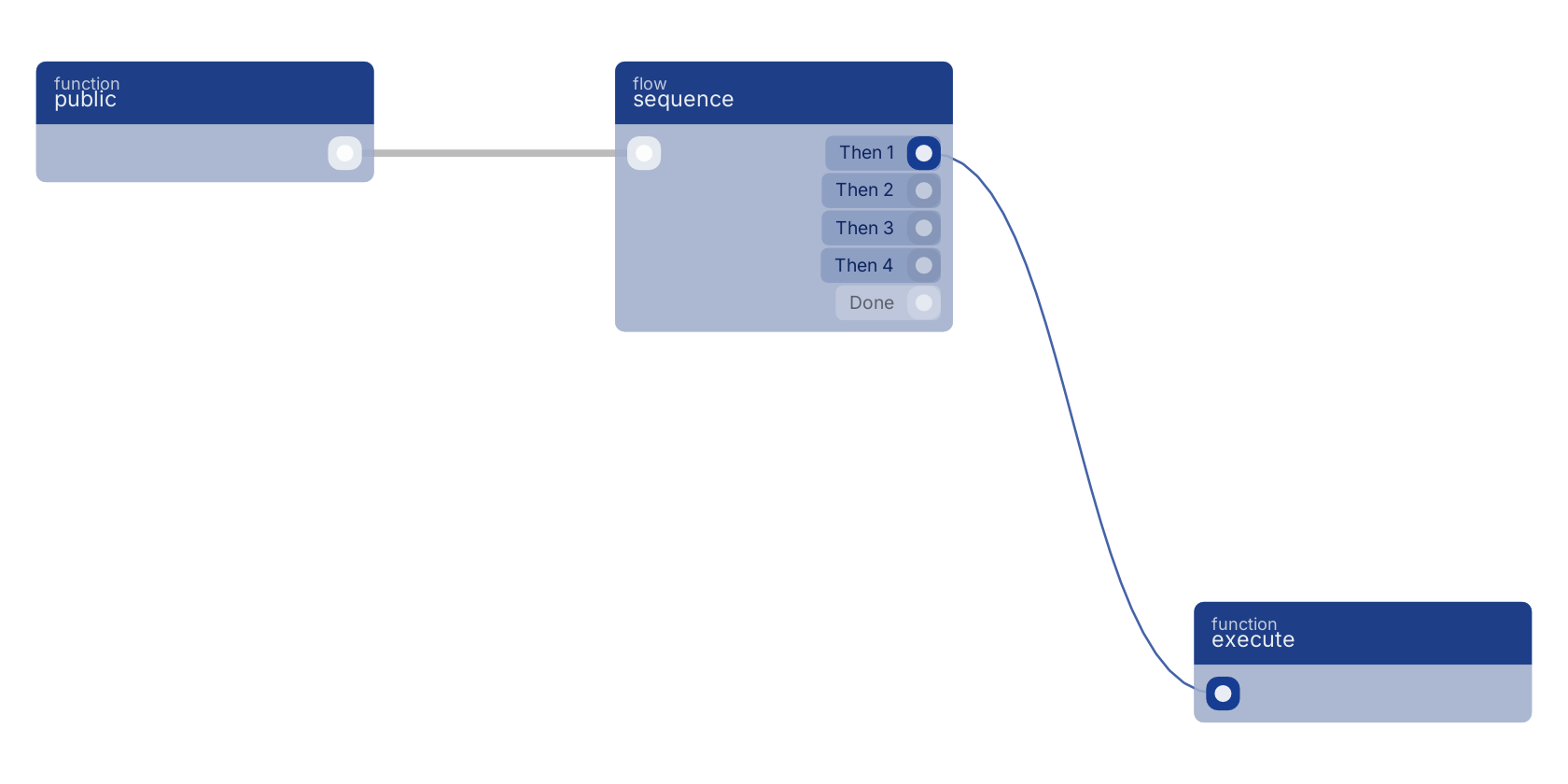

A typical wiring for sequence: a function trigger starts the flow; the function out pin wires to an execute block.

Version history

Introduced in v10.4.28.
