number prod/sim funnel
This block is part of the funnels group and was last modified in core v10.4.28.
number prod/sim funnel v10.4.28 In pins 2
- Production required
number - Simulation required
number
Out pins 1
- number
number
env |
production |
simulation |

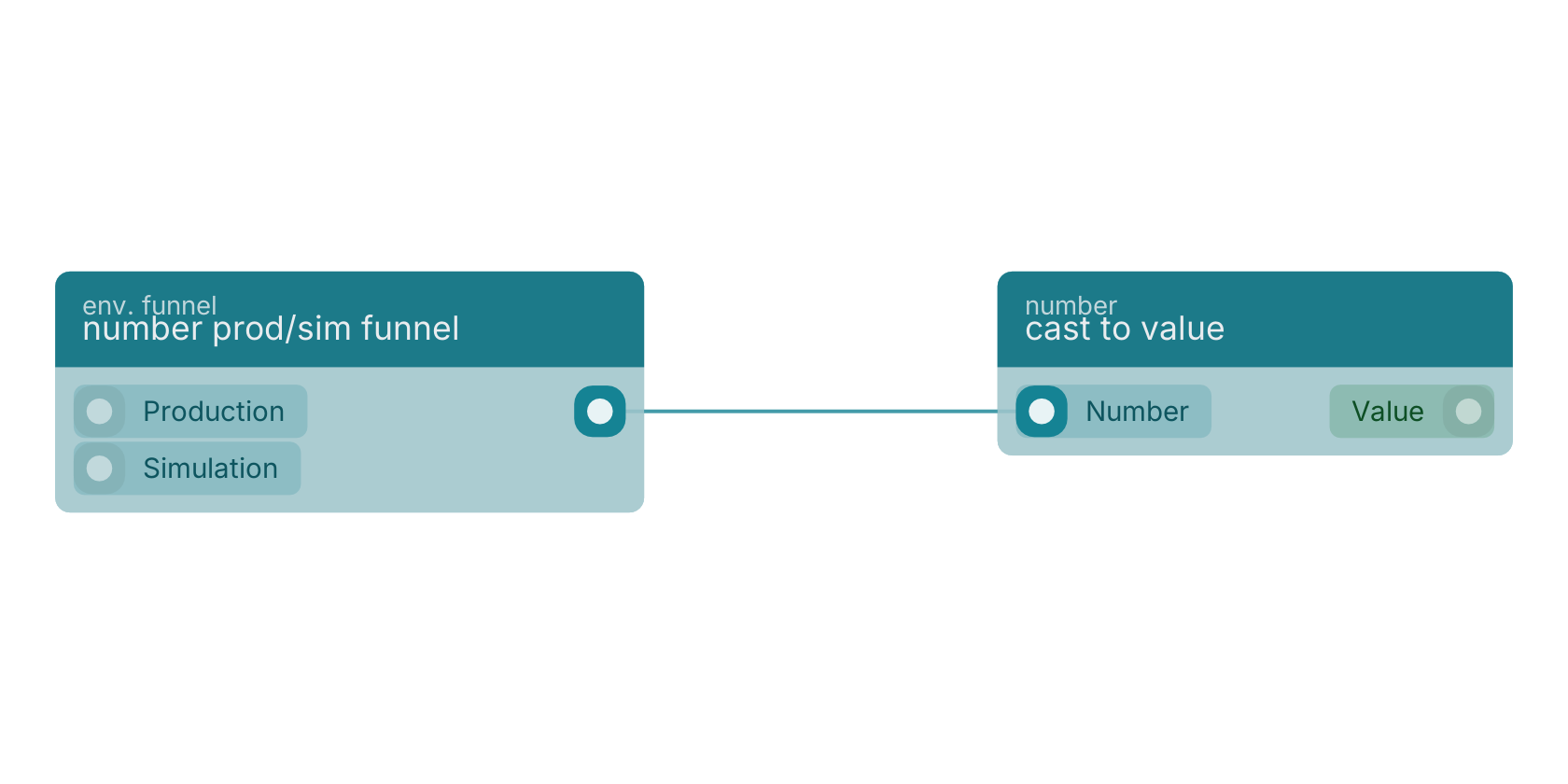

A typical wiring for number prod/sim funnel: the number out pin feeds cast to value.
Version history
Introduced in v10.4.28.
