device rename

This block is part of the globals group and was last modified in core v15.0.0.

device rename v15.0.0

Sets a device's friendly name and/or room.

In pins 3 + flow
  • flow v15.0.0
  • device value v15.0.0

    Device id, native address, or exact device name. Leave empty to use the device picked on the block.

  • name value v15.0.0
  • room value v15.0.0
Out pins 3 + flow
  • flow v15.0.0
  • ok condition v15.0.0
  • device object v15.0.0
  • error value v15.0.0

Renames a device in the RUAL registry. It does NOT rename it at the radio : the Zigbee2MQTT friendly name and the Hue bridge name are unchanged, so those apps keep showing the old name. Empty pins leave that field alone, so this can set a room without touching the name.

zigbee
zwave
matter
thread
hue
smart home

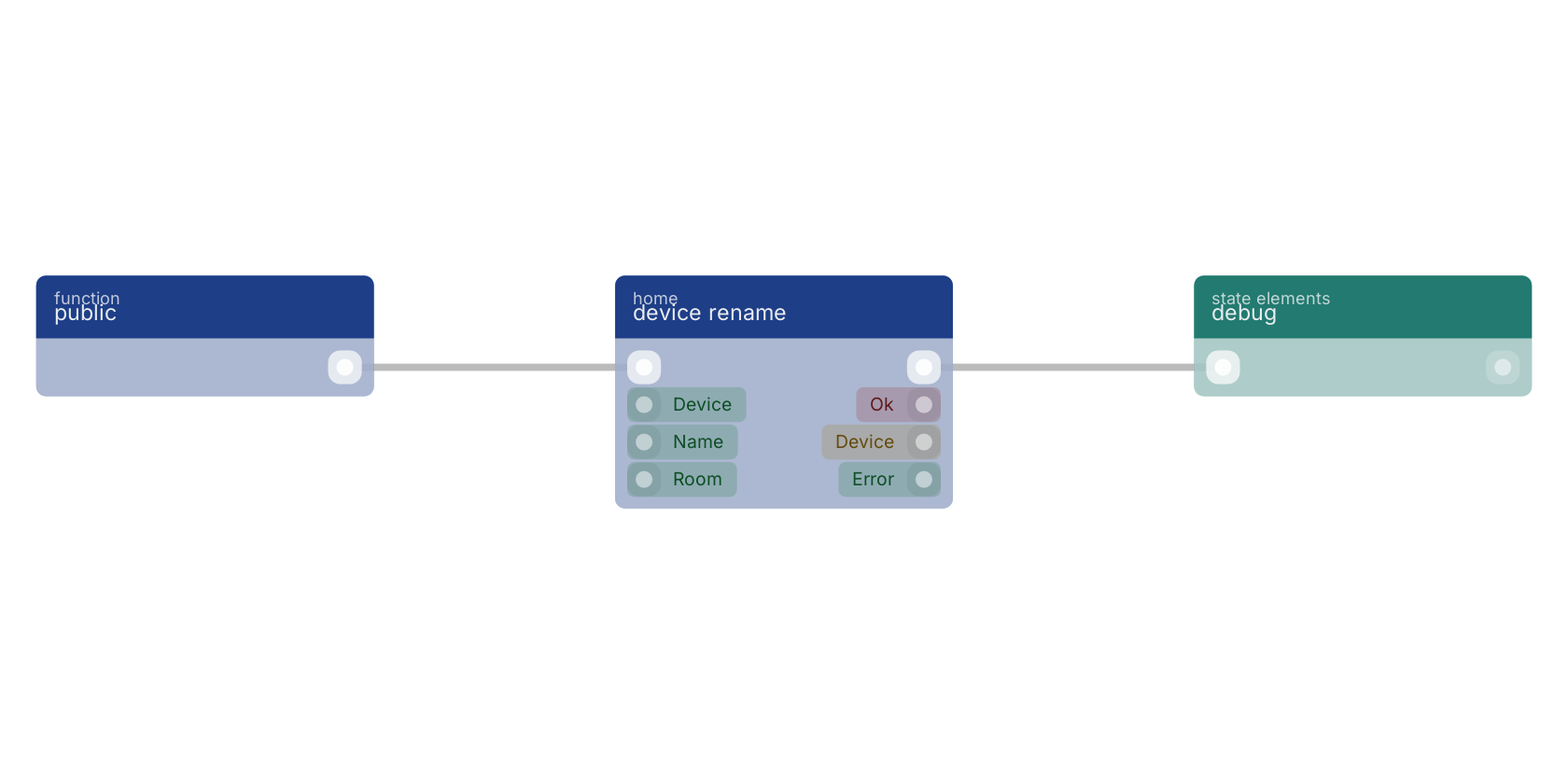

A typical wiring for device rename: a function trigger starts the flow; the flow out pin feeds debug.

Studio canvas example for the device rename block: typical wiring for device rename.

Used in these guides

These documentation pages use or explain this block:

Version history

Introduced in v15.0.0.
