gate open

This block is part of the globals group and was last modified in core v15.0.0.

gate open v15.0.0

Opens a gate or garage door.

In pins 1 + flow
  • flow v15.0.0
    flow
  • device v15.0.0
    value

    Device id, native address, or exact device name. Leave empty to use the device picked on the block.

Out pins 3 + flow
  • flow v15.0.0
    flow
  • ok v15.0.0
    condition

    True when the command reached the device.

  • device v15.0.0
    object

    The device the command was sent to.

  • error v15.0.0
    value

    Empty on success. HOMEASSIST_DEVICE_NOT_FOUND, HOMEASSIST_DEVICE_NOT_ADOPTED, HOMEASSIST_CAPABILITY_UNSUPPORTED or HOMEASSIST_NOT_AVAILABLE.

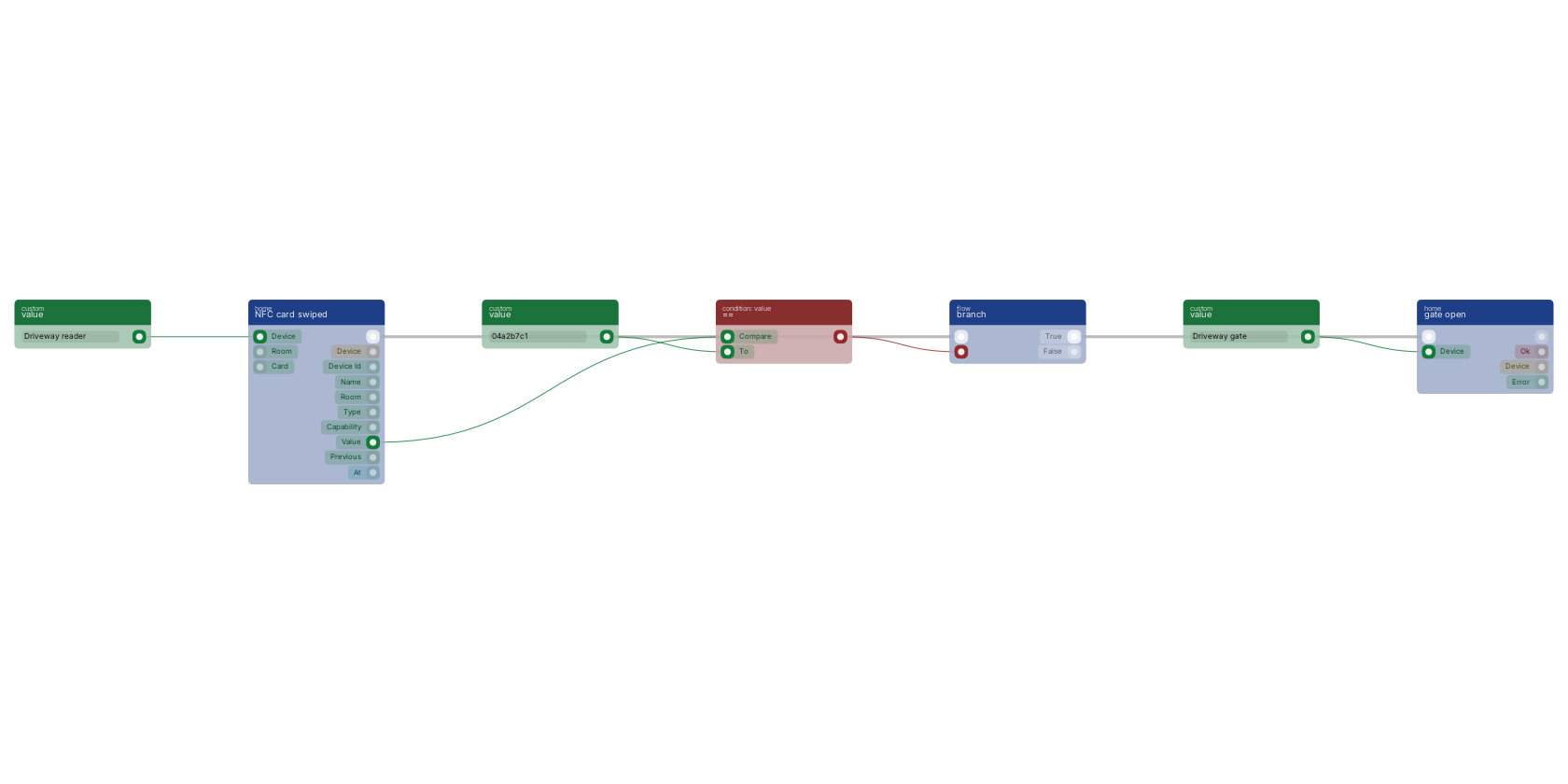

Opens a gate. Same underlying command as door unlock, named separately because a gate and a door read differently in a flow and a picker. On a controller where a gate is a momentary relay, this pulses it.

zigbee
zwave
matter
thread
hue
smart home

Version history

Introduced in v15.0.0.
