pairing open

This block is part of the globals group and was last modified in core v15.0.0.

pairing open condition v15.0.0

Opens the radio for new devices to join, for a bounded number of seconds.

In pins 2 + flow

flow v15.0.0
flow
adapter required v15.0.0
value
Which radio to open. • Suggestions: zigbee zwave matter hue
seconds v15.0.0
number
How long to stay open. 0 closes pairing.
Default 120

Out pins 2 + flow

flow v15.0.0
flow
ok v15.0.0
condition
error v15.0.0
value

Puts a radio into inclusion mode: Zigbee permit-join, Z-Wave inclusion, or a Matter commissioning window. The duration is clamped to the node's configured pairing window : a radio left permanently joinable is how a mesh acquires devices nobody added. Pass 0 to close pairing immediately. Hue does not have an inclusion mode; on that adapter this creates an application key against the bridge's link button instead.

zigbee

zwave

matter

thread

hue

smart home

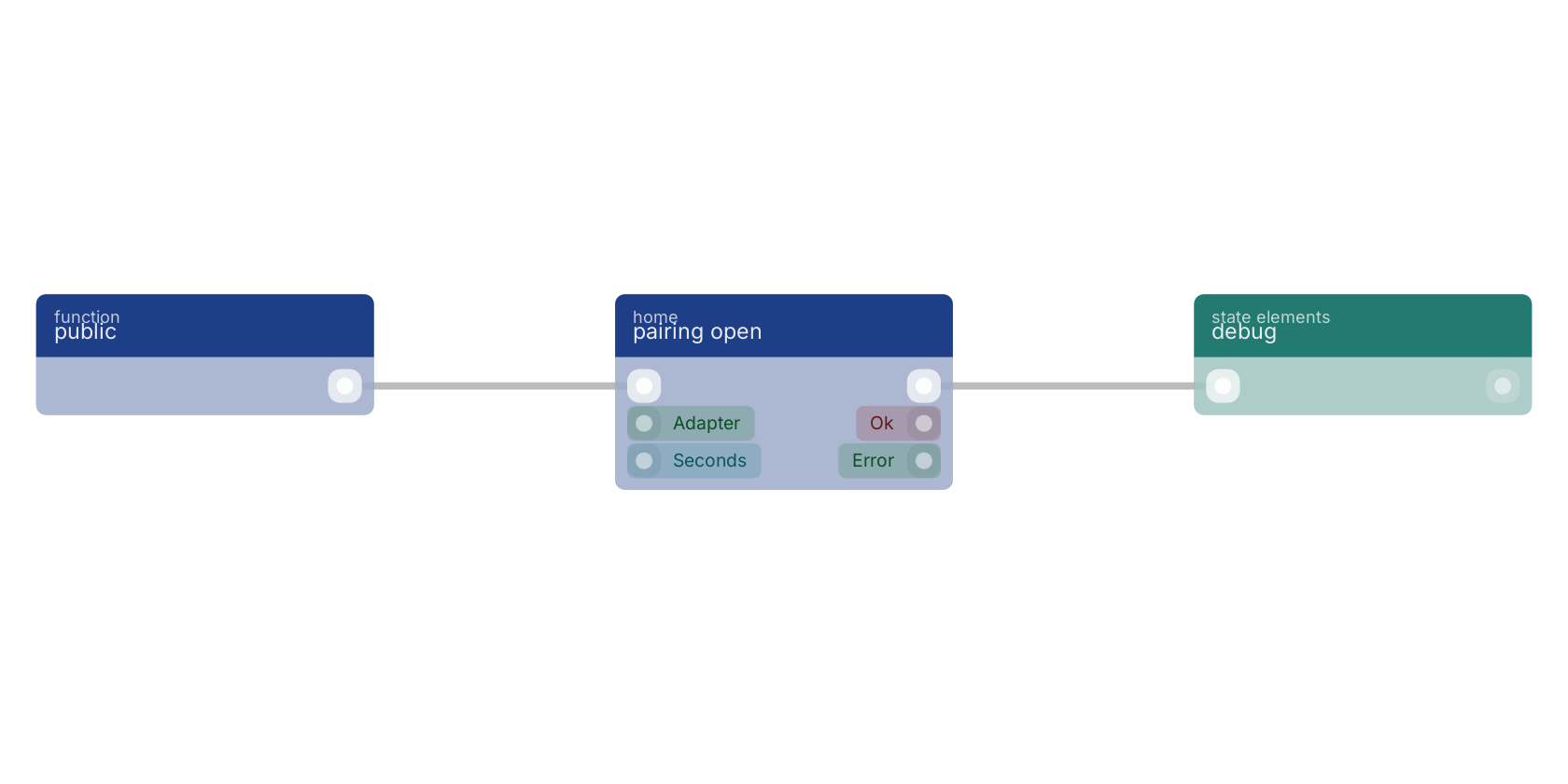

A typical wiring for pairing open: a function trigger starts the flow; the flow out pin feeds debug.

Used in these guides

These documentation pages use or explain this block:

Action Reference

Version history

Introduced in v15.0.0.
