get active sensors

This block is part of the globals group and was last modified in core v15.0.0.

get active sensors array v15.0.0

Returns every sensor that is currently triggered: motion present, doors open, leaks found.

In pins 2 + flow

flow v15.0.0
flow
sensor type v15.0.0
value
Leave empty for any kind of sensor. • Suggestions: occupancy contact water_leak smoke gas vibration
room v15.0.0
value

Out pins 2 + flow

flow v15.0.0
flow
devices v15.0.0
array
count v15.0.0
number

Reads the registry for adopted devices of type sensor whose current state has any sensor capability reading true. A sensor the node has never heard from is EXCLUDED rather than assumed inactive : after a restart this list is empty until devices report, which is honest rather than falsely reassuring.

zigbee

zwave

matter

thread

hue

smart home

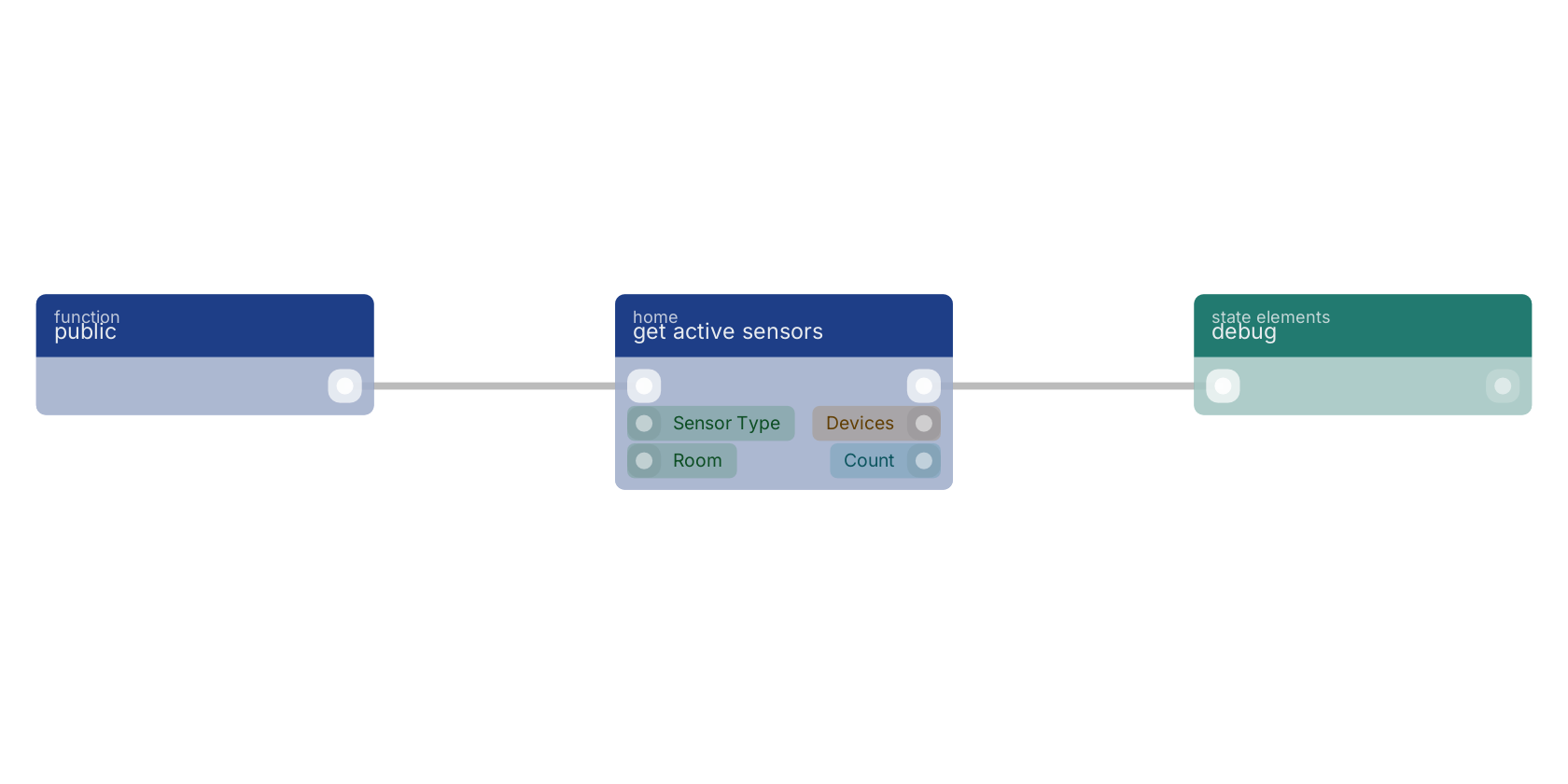

A typical wiring for get active sensors: a function trigger starts the flow; the flow out pin feeds debug.

Used in these guides

These documentation pages use or explain this block:

Action Reference

Version history

Introduced in v15.0.0.
