access granted

This block is part of the globals group and was last modified in core v15.0.0.

access granted object v15.0.0

Starts the flow when someone is let in: a valid card, PIN, wave or mobile credential. The actor and method are on the out-pins.

In pins 3

device value v15.0.0
Only fire for this door. Leave empty for every door.
room value v15.0.0
Only fire for devices in this room. Leave empty for every room.
method value v15.0.0
Only fire for this method. Leave empty for any. • Suggestions: nfc pin wave mobile touchpass

Out pins 12 + flow

flow v15.0.0
device object v15.0.0
The full device: id, name, room, type, capabilities, current state.
device id value v15.0.0
Stable platform id, e.g. zigbee:0x00158d0007e1a2b3.
name value v15.0.0
The device's friendly name.
room value v15.0.0
The room the device is assigned to, empty if none.
type value v15.0.0
sensor, light, switch, climate, cover, lock or button.
capability value v15.0.0
Which capability changed, e.g. occupancy, contact, power.
value value v15.0.0
The new value.
previous value v15.0.0
The value before this change, empty on the first report.
at number v15.0.0
Unix seconds the device reported.
actor value v15.0.0
Who: the user or credential name, empty when the reader could not identify them.
method value v15.0.0
How: nfc, pin, wave, mobile, touchpass or manual.
granted condition v15.0.0
True when access was allowed, false when the reader denied it.

Start-of-flow trigger for a SUCCESSFUL entry. Fires when an access_entry event is granted. The `actor` out-pin is who, `method` is how (nfc, pin, wave, mobile, touchpass, manual). Use this for 'unlock logging', 'welcome home' scenes, or 'notify when the cleaner's card is used'. It does NOT fire on a denied attempt : use access denied for that.

unifi

access

nfc

card

door

entry

trigger

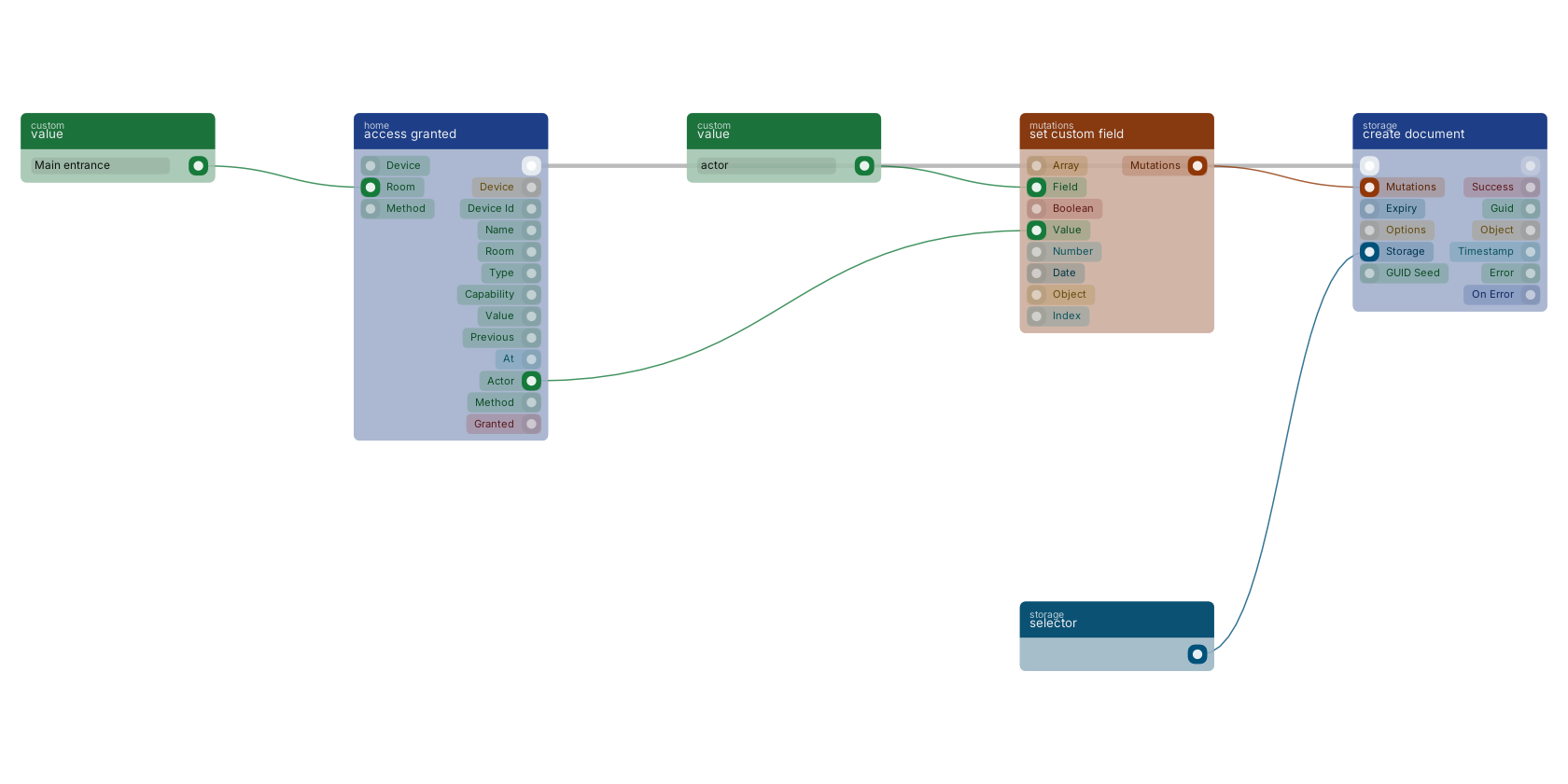

access granted fires once per accepted credential and carries both the actor and the method, so the door log writes down who came in and whether they used a card, a code or an app. Storing it through create document rather than only logging it is what makes "who was in the building on Tuesday" answerable later.

Used in these guides

These documentation pages use or explain this block:

Version history

Introduced in v15.0.0.
