timeout
This block is part of the http connection group and was last modified in core v10.3.11.
timeout v10.3.11 Updates the default connection timeout of 120 seconds
In pins 2 + flow
- flow
flow - connection required
httpconnection - seconds required
numberNumber of seconds the connection should wait before closing, a number between
1and600. We currently do not allow connections to exceed 10 minutes of wait time.
Out pins 1 + flow
- flow
flow - connection
httpconnection
Overrides the cluster default request timeout for this request, in seconds; the deadline is derived from the original request context, so it can EXTEND an already-shortened timeout. Values <= 1 or above 600 are silently ignored : note 1 is rejected, so the effective range is 2-600. The connection passes through unchanged.

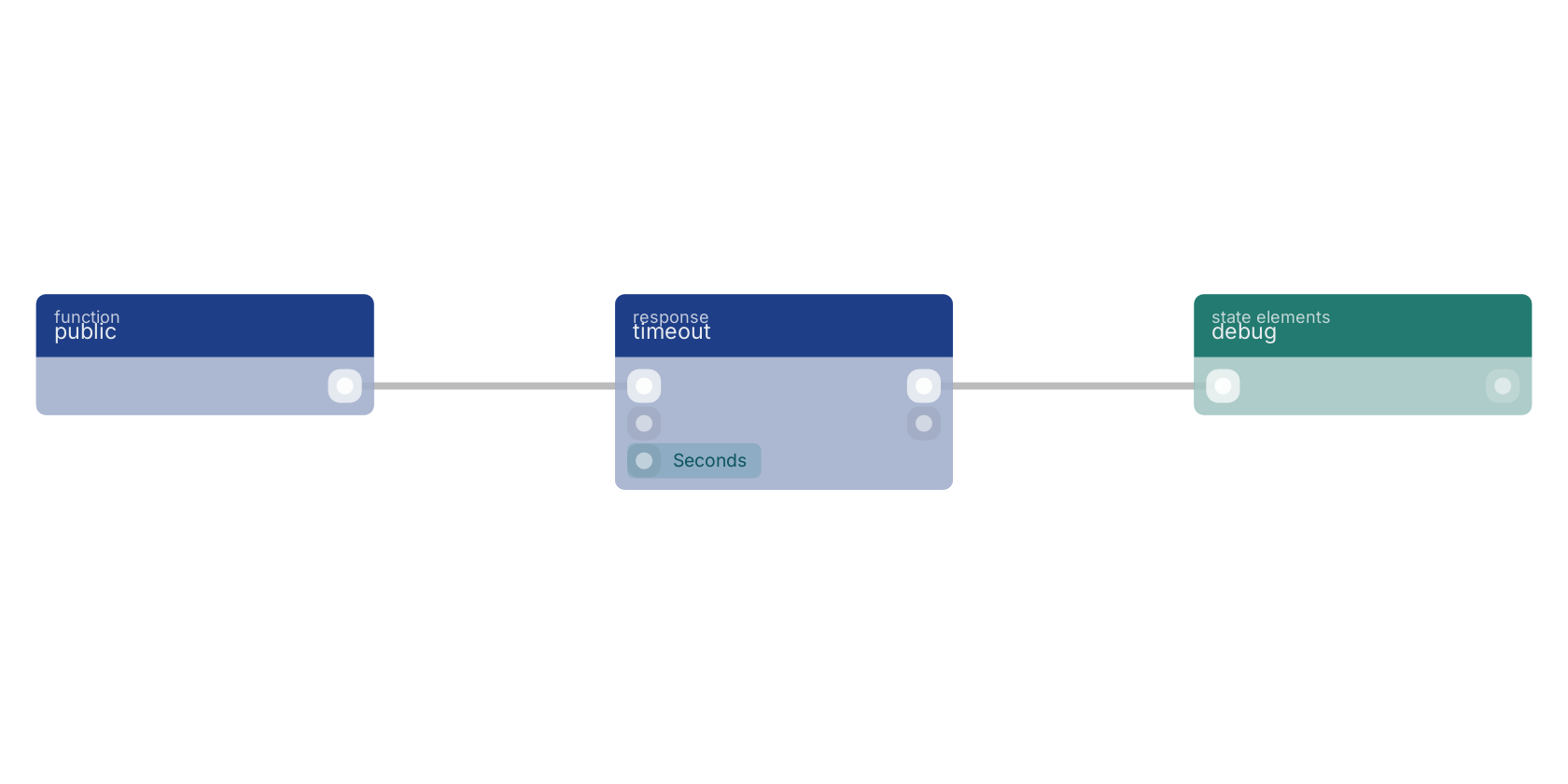

A typical wiring for timeout: a function trigger starts the flow; the flow out pin feeds debug.
Version history
Introduced in v10.3.11.
