on api delete

This block is part of the http connection group and was last modified in core v10.3.2.

on api delete execute_function v10.3.2

Exposes URI on /api/

In pins 1

lowercase body
condition
If set to true, we'll automatically lowercase all JSON root-body keys. userName will become username.
Default false

Out pins 1

On Request
execute_function

Startup registration block, not a flow executor: at startup (and on every save) it registers DELETE /api/{version}/{uri} and wires it to the function connected to the On Request outpin, which receives connection, params, query and body pins per request. Version defaults to v1; the lower_keys pin lowercases all root-level JSON body keys (userName -> username). A route without any scope is LOCKED with 403 : not public; use *public to expose it.

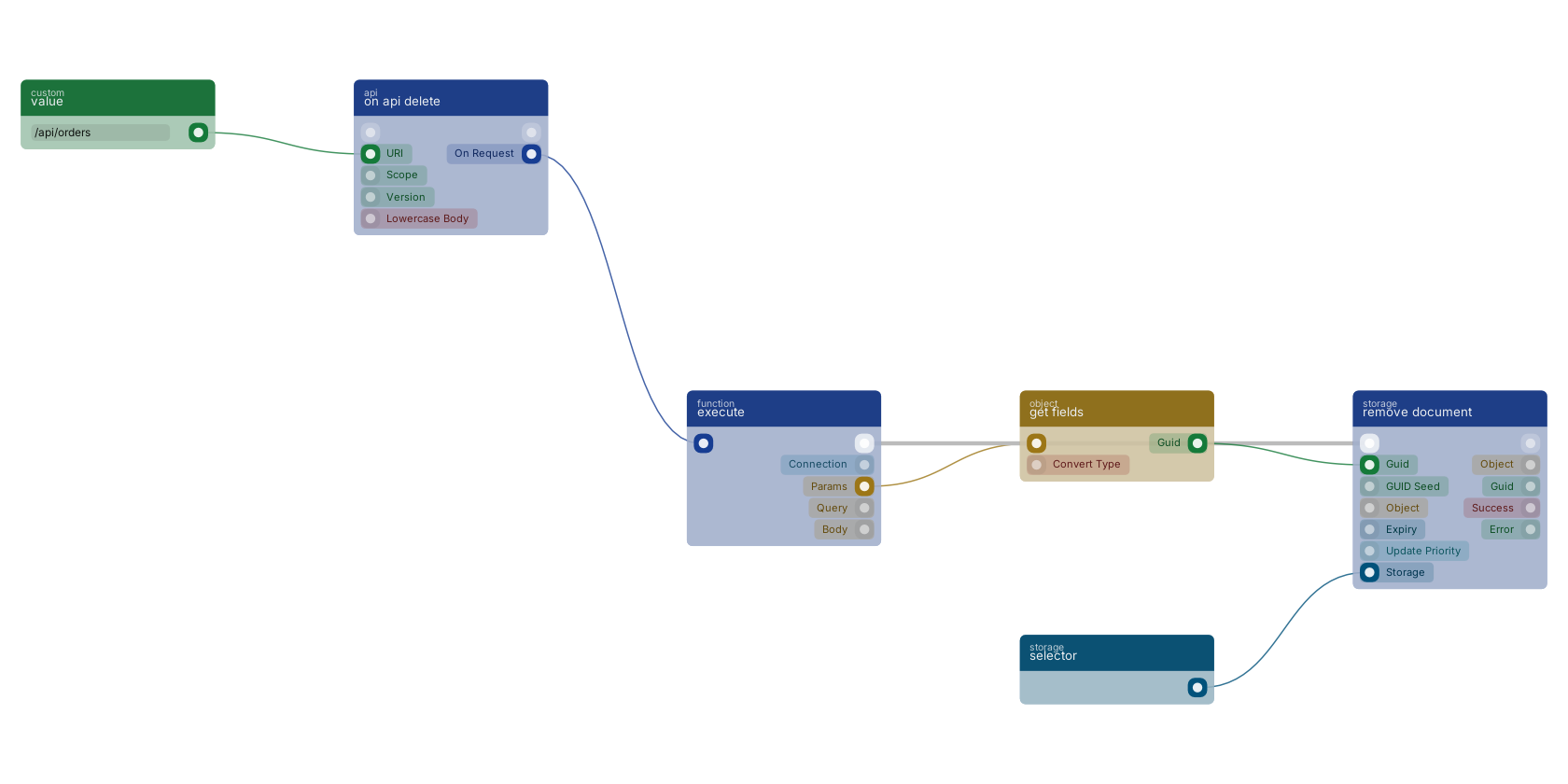

register delete

on api delete registers the uri and creates the execute handler with connection, params, query and body pins. The handler flow removes the document with remove document, taking the guid from the request params via get fields.

Commonly used with

In production blueprints, this block is most often wired together with:

execute: this block feeds into it. Executes the given funcion and waits for it to be executed.

Version history

Introduced in v10.3.2.
