This block is part of the math group and was last modified in core v10.4.28.
÷ v10.4.28 Produces the quotient of its operands where the first operand is the dividend and the second operand is the divisor.
In pins 2
- number_0 required
number - number_1 required
number
Out pins 1
- Number
number
Outputs number_0 divided by number_1. Both pins must resolve to valid finite numbers (numeric strings and booleans coerce); an unwired, nil, or non-numeric pin outputs nil, and division by zero also outputs nil instead of Infinity or NaN. Example: number_0=7 number_1=2 -> 3.5.
divide |
/ |

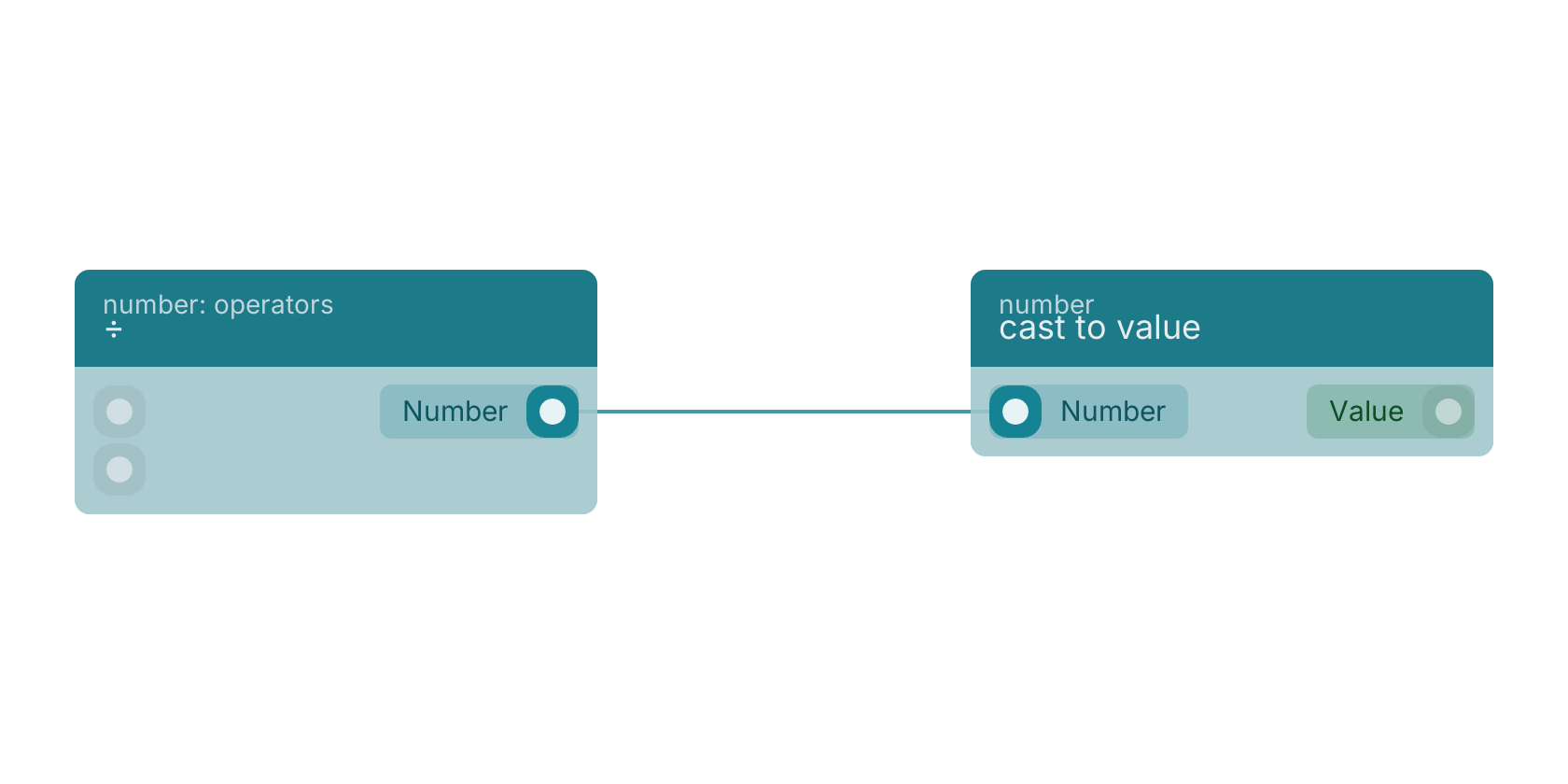

A typical wiring for ÷: the number out pin feeds cast to value.
Version history
Introduced in v10.4.28.
