exp

This block is part of the math group and was last modified in core v13.0.7.

exp number v13.0.7

Returns the value of E raised to the power of a number

In pins 1

number_0 required
number

Out pins 1

Number
number

Outputs e raised to the power number_0. Numeric strings and booleans coerce; a wired non-numeric value counts as 0 (so exp -> 1), and an unwired or nil pin writes nothing to the output. Example: number_0=1 -> 2.718281828459045.

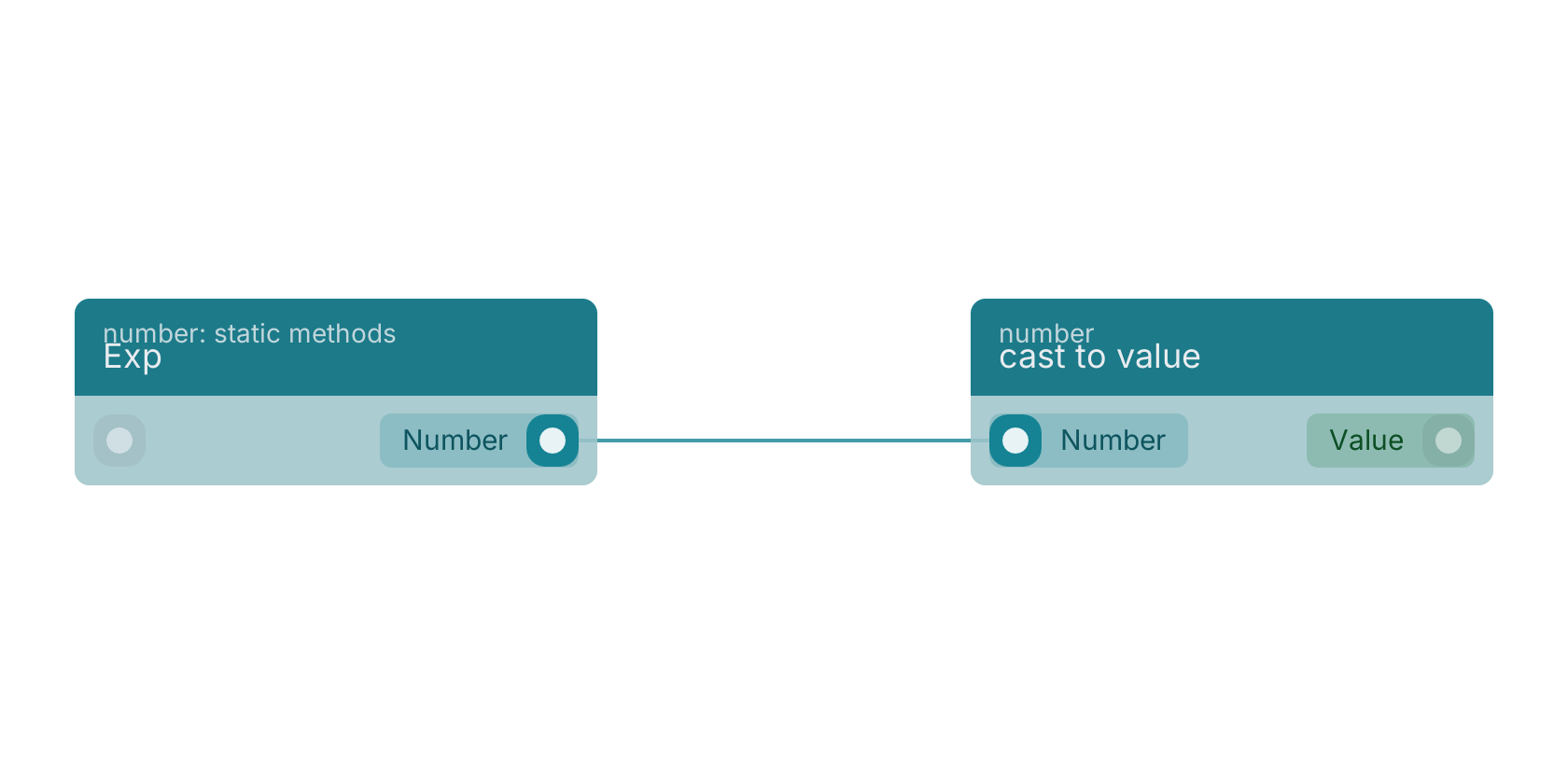

A typical wiring for Exp: the number out pin feeds cast to value.

Version history

Introduced in v13.0.7.
