pad end
This block is part of the number group and was last modified in core v14.0.1.
pad end v14.0.1 Pads the given number with char. on the right to match the given length.
In pins 3
- number required
number - length required
number - char
value
Out pins 1
- value
valueReturns the padded number as value
Outputs the number pin as a string, right-padded with the char pin until it reaches length characters; values already at or above length pass through unchanged. The number is stringified as-is without numeric validation (nil becomes "0"), char defaults to "0", and an empty char pads with spaces. Example: number=42 length=5 char="0" -> "42000".
rpad |

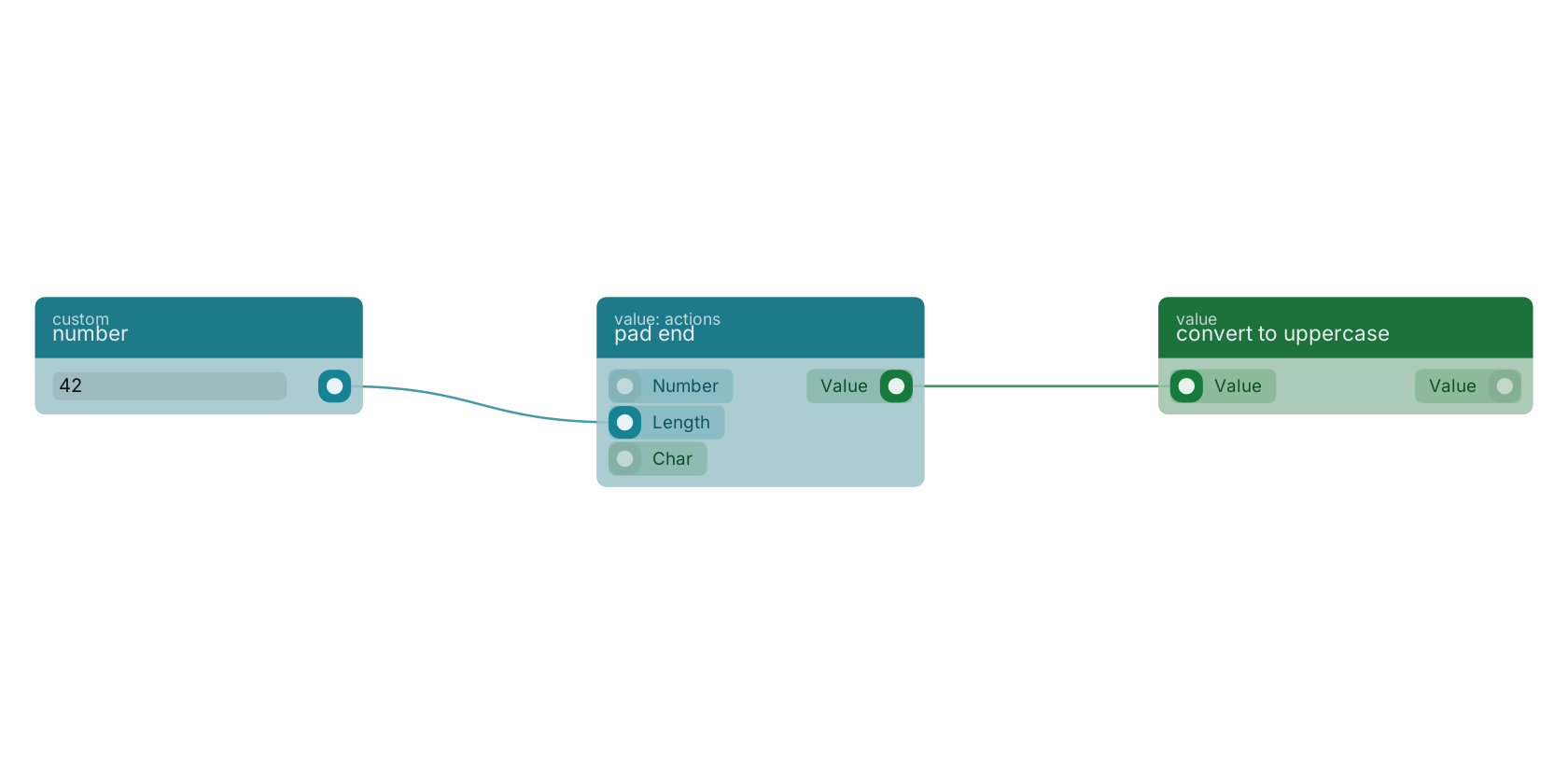

A typical wiring for pad end: number feeds the length pin; the value out pin feeds convert to uppercase.
Version history
Introduced in v14.0.1.
