generate ekt object

This block is part of the object group and was last modified in core v12.0.7.

generate ekt object object v11.5.18 Updated v12.0.7

Generates an EKT object for the edifact EKT formatter

In pins 10

Test Message condition
True if this is a test message
date date v12.0.7
The date to be used
Default Now
Sender Name value required
Sender GLN value required
Receiver name value required
Receiver name (or buyer number)
Unique ID value required
Unique ID for this order (most likely the order guid)
Buyer ID Code value required
Buyer number
Auction Code value required
The code for the flower auction
Seller GLN value required
GLN code of the seller
Lines array required
Array of product lines (TIP: Use "EKT Line" object type in a concat)

Out pins 1

EKT Object object

Bundles the values of all connected in-pins verbatim into one object keyed by pin id; nil pins are omitted and dates are formatted as ISO 8601 strings. Performs no EDIFACT encoding itself -- the output feeds the EKT formatter downstream.

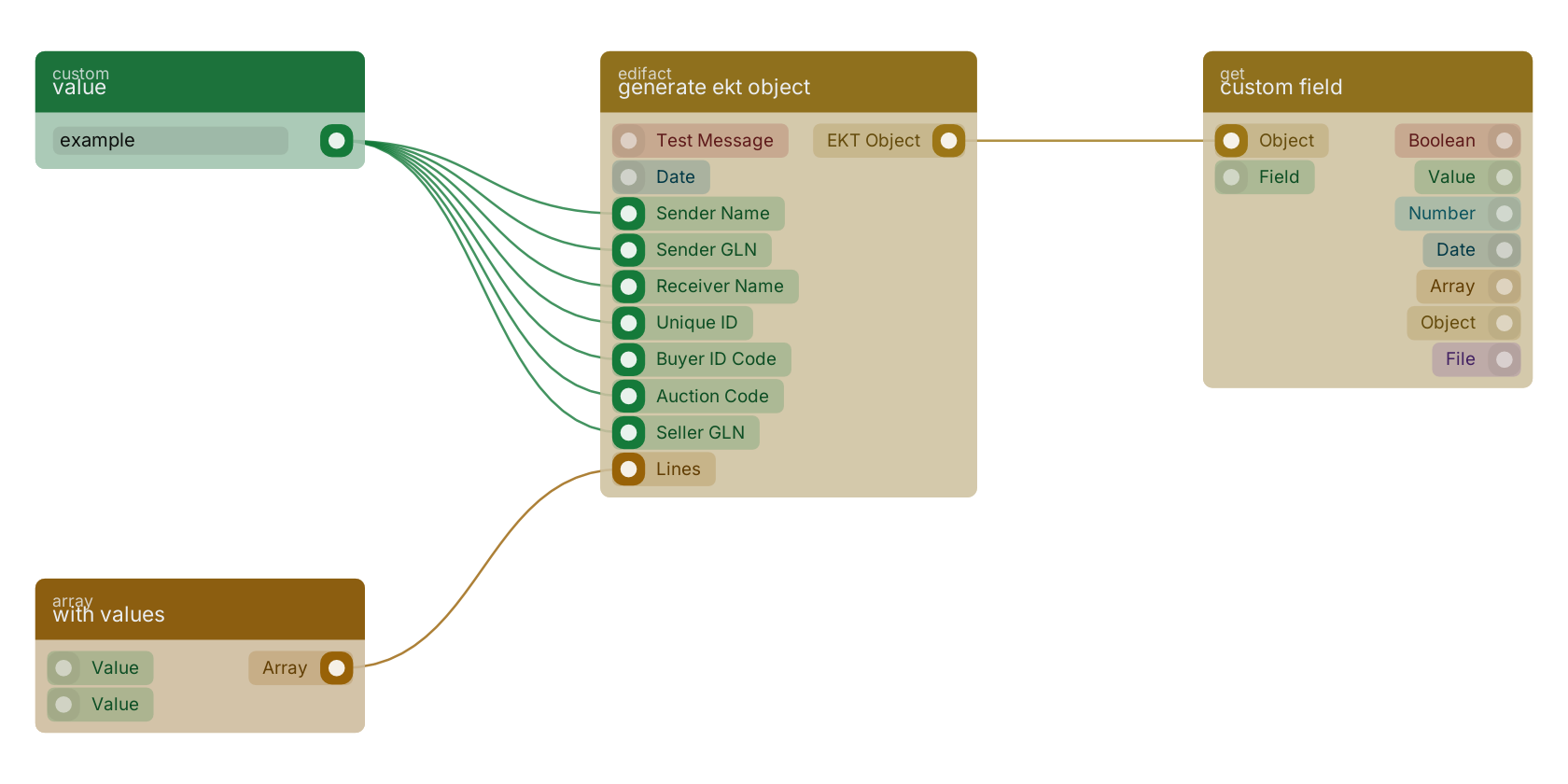

A typical wiring for generate ekt object: value feeds the sender_name pin; value feeds the sender_gln pin; value feeds the receiver_name pin; value feeds the unique_id pin; value feeds the buyer_identification_code pin; value feeds the auction_code pin; value feeds the seller_gln pin; with values feeds the lines pin; the ektinput out pin feeds custom field.

Version history

Introduced in v11.5.18.

Last modified in v12.0.7.
