parse xml
This block is part of the object group and was last modified in core v12.0.4.
parse xml v12.0.4 Parses an XML string into an object with XML attributed data
- XML required
value - normalize
conditionTransforms the keys to lowercase
- strip prefix
conditionStrips the xml namespace prefix from the keys
- parse numbers
conditionParses integer-like strings and float-like strings as floats
- parse booleans
conditionParses boolean-like strings to booleans
- object
object - success
condition - error
value
Parses XML into an xml2js-shaped object: child elements are wrapped in ARRAYS, attributes sit under '$', mixed text under '_', and text-only elements collapse to plain strings. Example: <a b="1"><c>x</c></a> -> {a:{$:{b:"1"},c:["x"]}}. On parse failure or empty input: success=false, error carries the message, object={}.

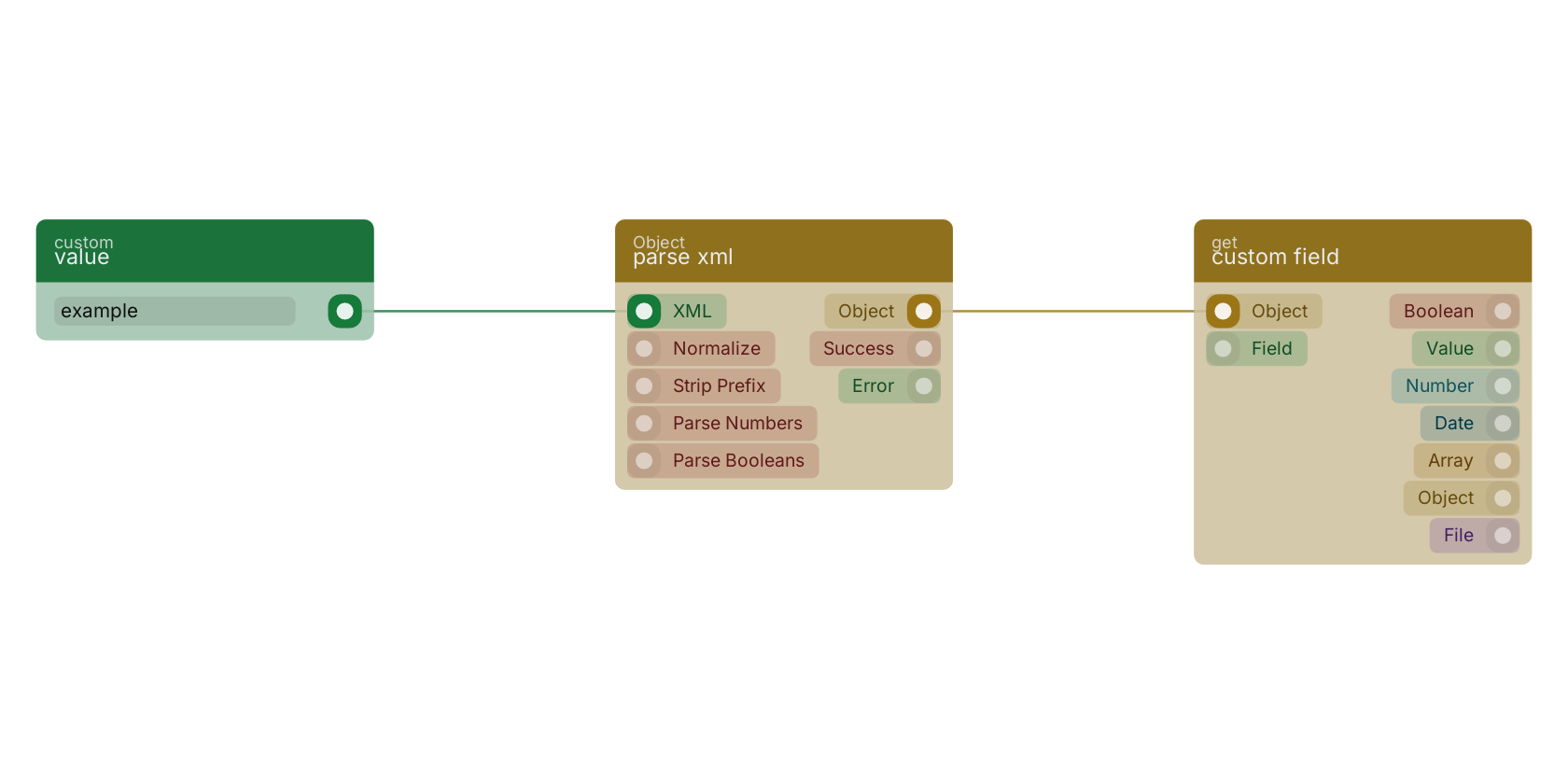

A typical wiring for parse xml: value feeds the xml pin; the object out pin feeds custom field.
Version history
Introduced in v12.0.4.
