elseif

This block is part of the query group and was last modified in core v10.4.28.

Connection Type

This block connects from a query type block. Make sure to connect this block to the appropriate left-hand side connection.

elseif query v10.4.28

In pins 3

default required
query
else if required
condition
then required
query

Out pins 1

query
query

Passes through exactly one input: the flow engine pre-selects the query pin of the first elseif whose condition is true (or the default pin), and this block outputs that pin's value unchanged : nil when the selected pin is unwired. The conditions are not evaluated here. Does nothing during precompile.

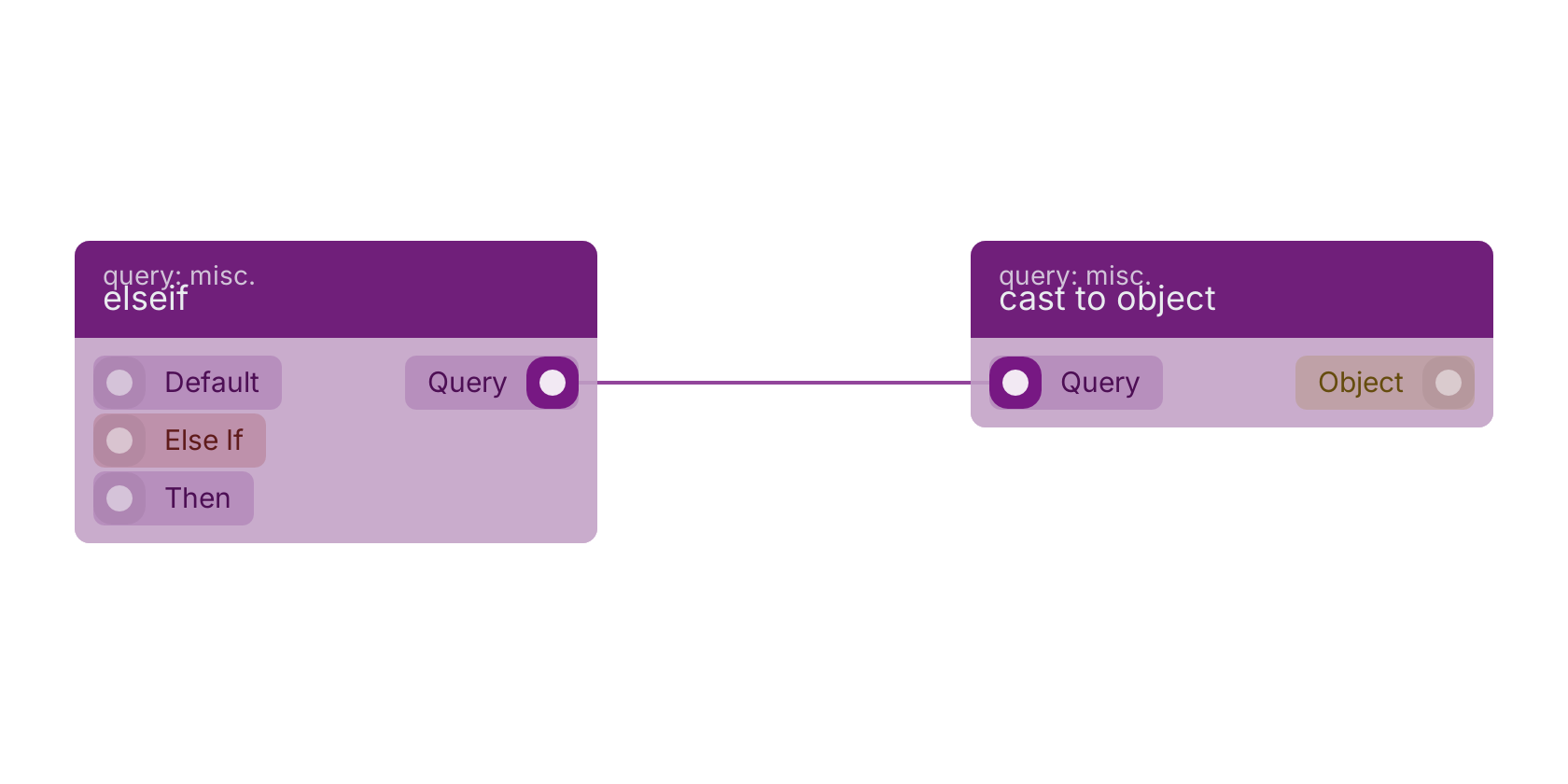

A typical wiring for elseif: the query out pin feeds cast to object.

Version history

Introduced in v10.4.28.
