get by index

This block is part of the redis group and was last modified in core v13.0.7.

Redis Key Selection Required

This block relies on a Redis key to perform its redis releated actions. You must manually select the Redis key you want to use in the flow in the blueprint using the Redis key selector modal. To access the modal, click the white button on the block.

get by index v13.0.7

Get an element from a list by its index

In pins 1 + flow
  • flow
    flow
  • index required
    number

    the index to retrieve the element from.

Out pins 4 + flow
  • flow
    flow
  • element
    value
  • success
    condition
  • error
    value
  • key v13.0.7
    value
redis lindex
lindex

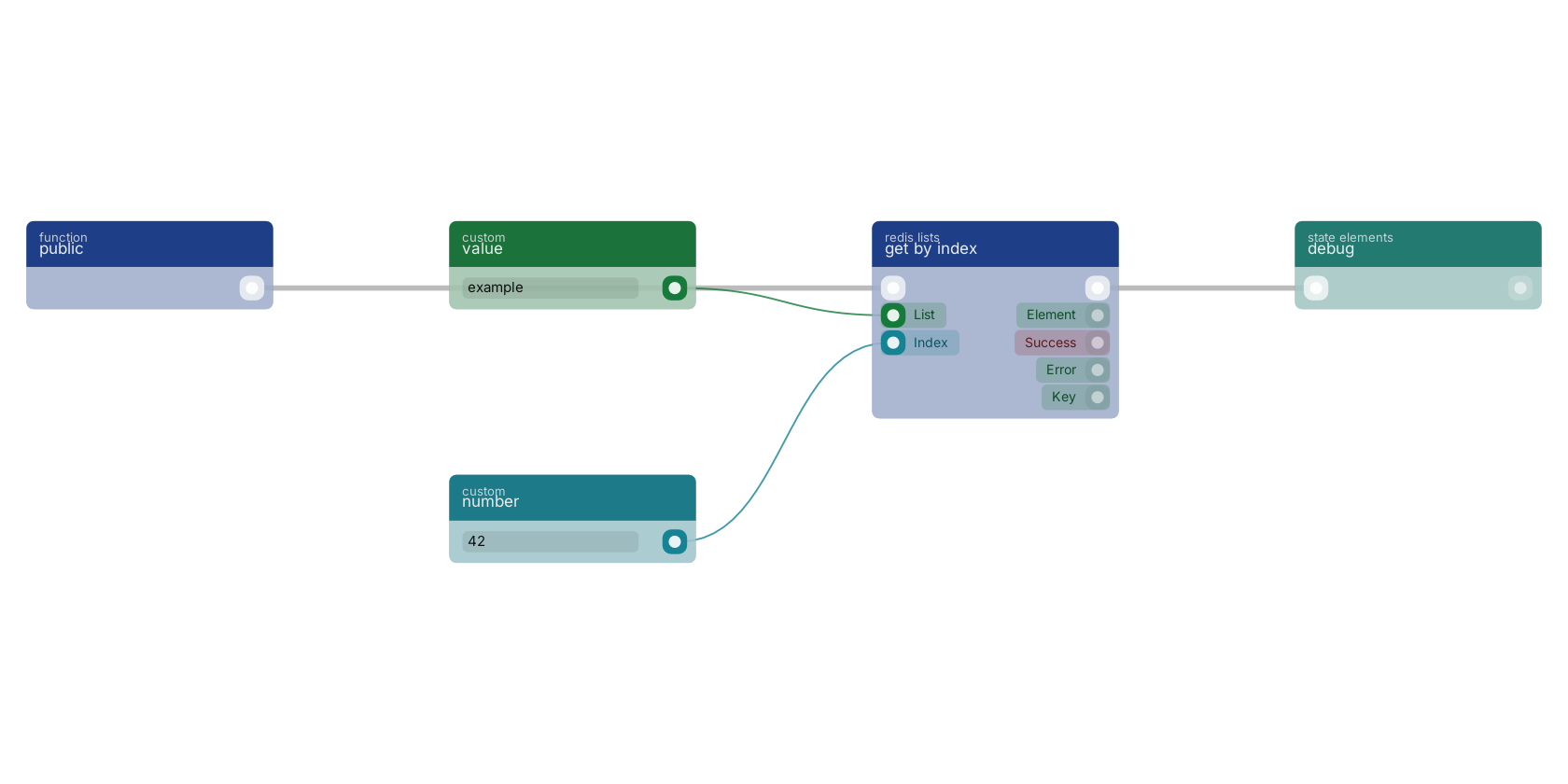

A typical wiring for get by index: a function trigger starts the flow; value feeds the list pin; number feeds the index pin; the flow out pin feeds debug.

Studio canvas example for the get by index block: typical wiring for get by index.

Version history

Introduced in v13.0.7.

Service documentation

External API reference This block wraps a third-party service. Click here for the service's own documentation of the underlying endpoint.
