set

This block is part of the redis group and was last modified in core v13.0.7.

Redis Key Selection Required

This block relies on a Redis key to perform its redis releated actions. You must manually select the Redis key you want to use in the flow in the blueprint using the Redis key selector modal. To access the modal, click the white button on the block.

set v13.0.7

set the value of an element in a list by its index

In pins 2 + flow
  • flow
  • index number required

    the index to update the element at.

  • element value required

    the new value of the element.

Out pins 4 + flow
  • flow
  • result value
  • success condition
  • error value
  • key value v13.0.7
redis lset
lset

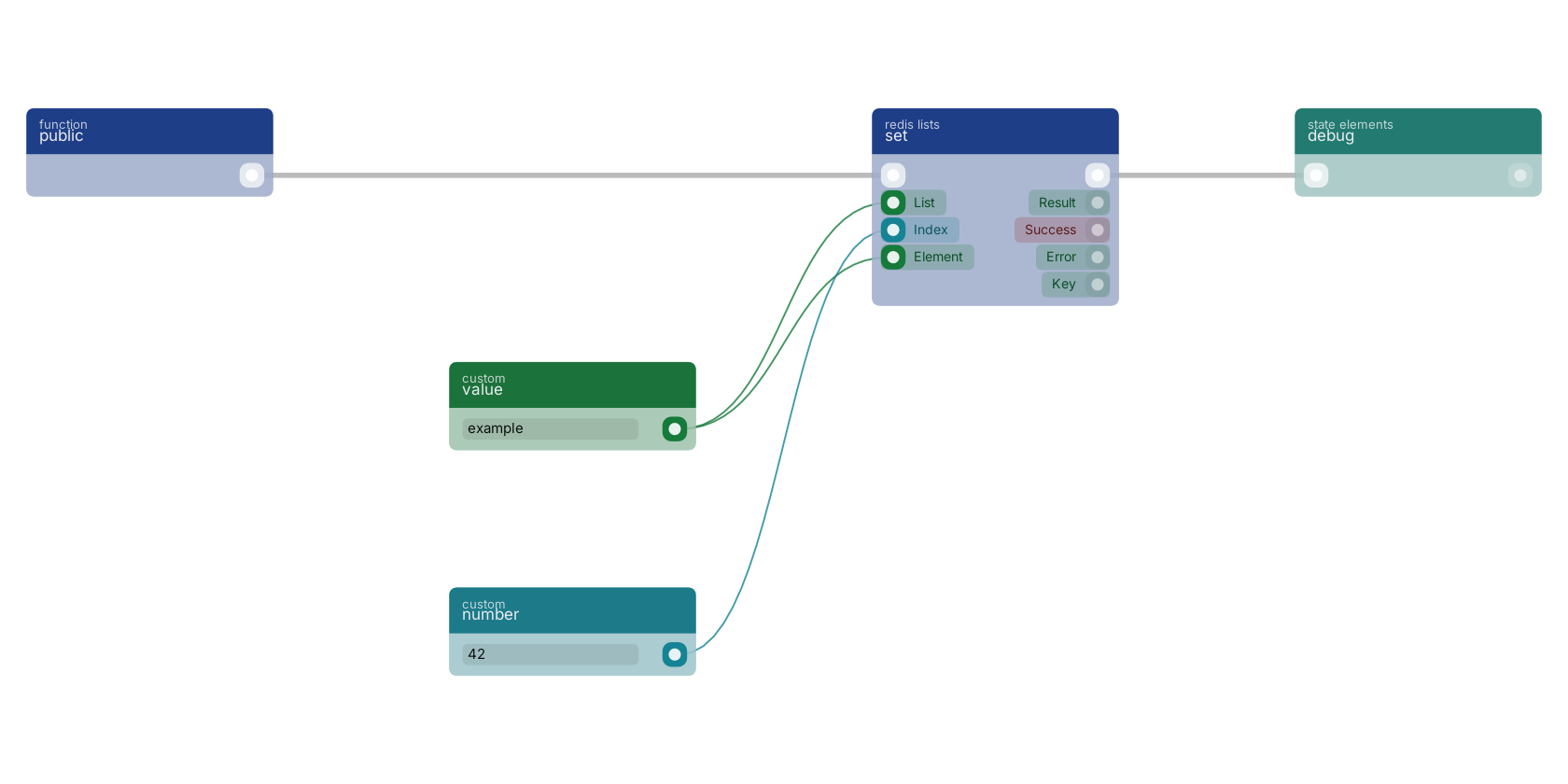

A typical wiring for set: a function trigger starts the flow; value feeds the list pin; number feeds the index pin; value feeds the element pin; the flow out pin feeds debug.

Studio canvas example for the set block: typical wiring for set.

Version history

Introduced in v13.0.7.

Service documentation

External API reference This block wraps a third-party service. Click here for the service's own documentation of the underlying endpoint.
