Blocks Deprecated

Deprecated: use the web blocks for new pages This block belongs to state pages and UI components. Existing pages keep running, but new pages should use the web blocks. See Web Pages and the migration guide.

checkbox buttons

This block is part of the group and was last modified in core v13.0.6.

Field Selection Required

This block relies on a field that you select to perform its data actions. You must manually select the field you want to use in your flow using the field selector modal. To access the modal, click the white button on the block.

checkbox buttons state v13.0.1 Updated v13.0.6

Generates a set of buttons and multiple values can be choosen. The field will be used as state key.

In pins 7

form id value required
A unique ID for the form this field is used in.
options array required
The options to be shown in the dropdown. Can either be a list of values or [{key, value}].
vertical condition
Provide this if you want the buttons to be aligned vertical.
Default false
disabled condition v13.0.9
Disables all buttons if set to true.
Default false
class uiclass
Assigns a CSS class to the element. • Hidden when unused
style uistyle
Applies inline CSS style to the element • Hidden when unused
attributes uiattributes
Adds custom attributes to the element. • Hidden when unused

Out pins 1

state state
Returns the element to the frontend state.

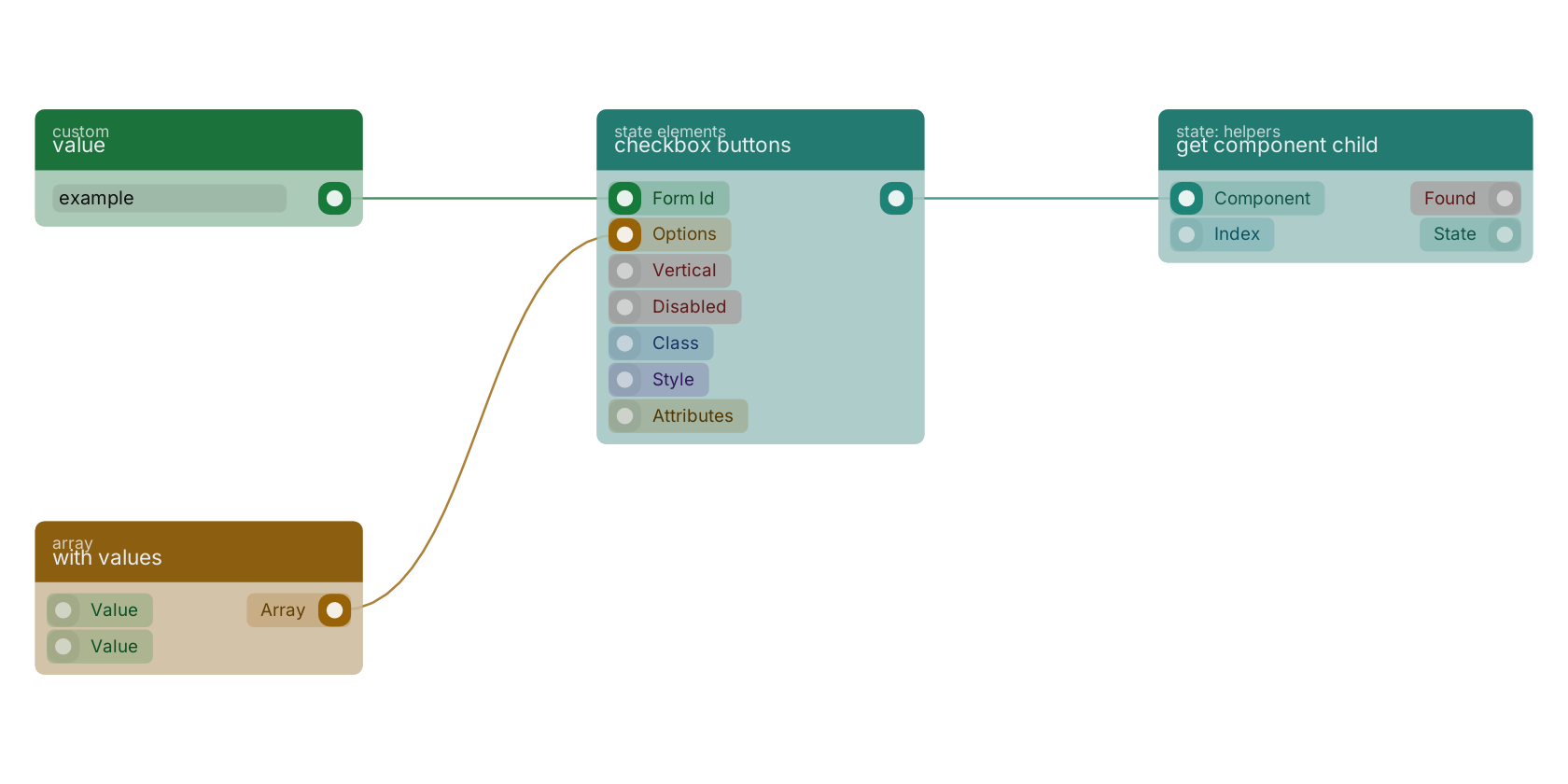

A typical wiring for checkbox buttons: value feeds the form_id pin; with values feeds the options pin; the state out pin feeds get component child.

Version history

Introduced in v13.0.1.

Last modified in v13.0.6.

v13.0.9 This block or one of its pins was updated in v13.0.9, click here to see the release notes.
