on change

This block is part of the state events group and was last modified in core v14.0.1.

on change v14.0.1

Triggers the event everytime a change has been registered within the UI for the connected element. Primarily used with input elements.

In pins 2
  • DOM action required
    value

    Default DOM interaction of the returned state of the function you choose. Options: append | replace | prepend | none

    Default none

  • debounce required
    number

    By default no debounce is applied to the events, provide the debounce in ms if you would like this event to debounce before executing

    Default 0ms

Out pins 1
  • stateevents
    stateevents

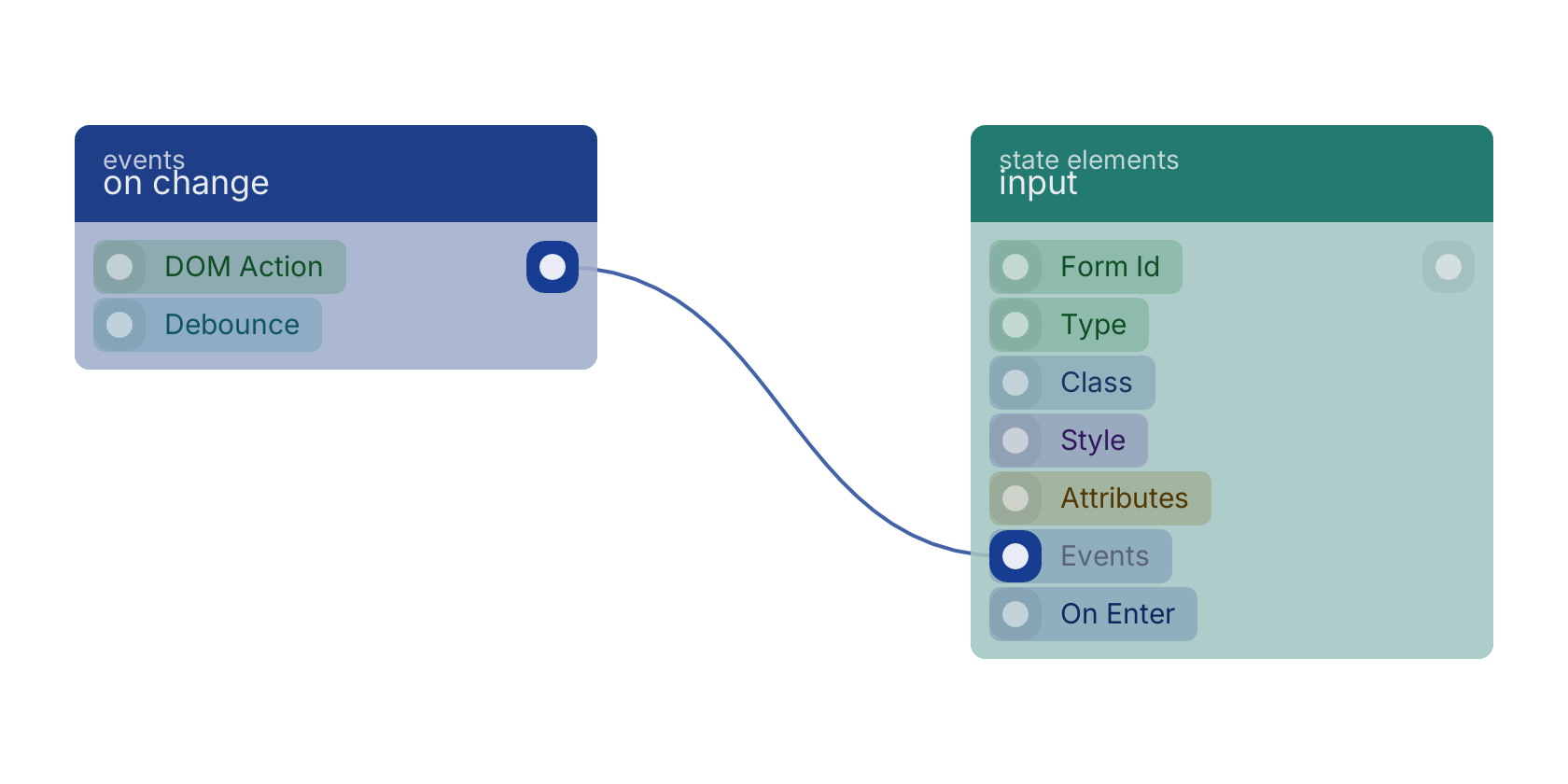

A typical wiring for on change: the stateevents out pin feeds input.

Studio canvas example for the on change block: typical wiring for on change.

Version history

Introduced in v14.0.1.
