on click

This block is part of the state events group and was last modified in core v14.0.1.

on click stateevents v14.0.1

Triggers the event everytime a left click has been registered within the UI for the connected element

In pins 2

DOM action required
value
Default DOM interaction of the returned state of the function you choose. Options: append | replace | prepend | none
Default none
debounce required
number
By default no debounce is applied to the events, provide the debounce in ms if you would like this event to debounce before executing
Default 0ms

Out pins 1

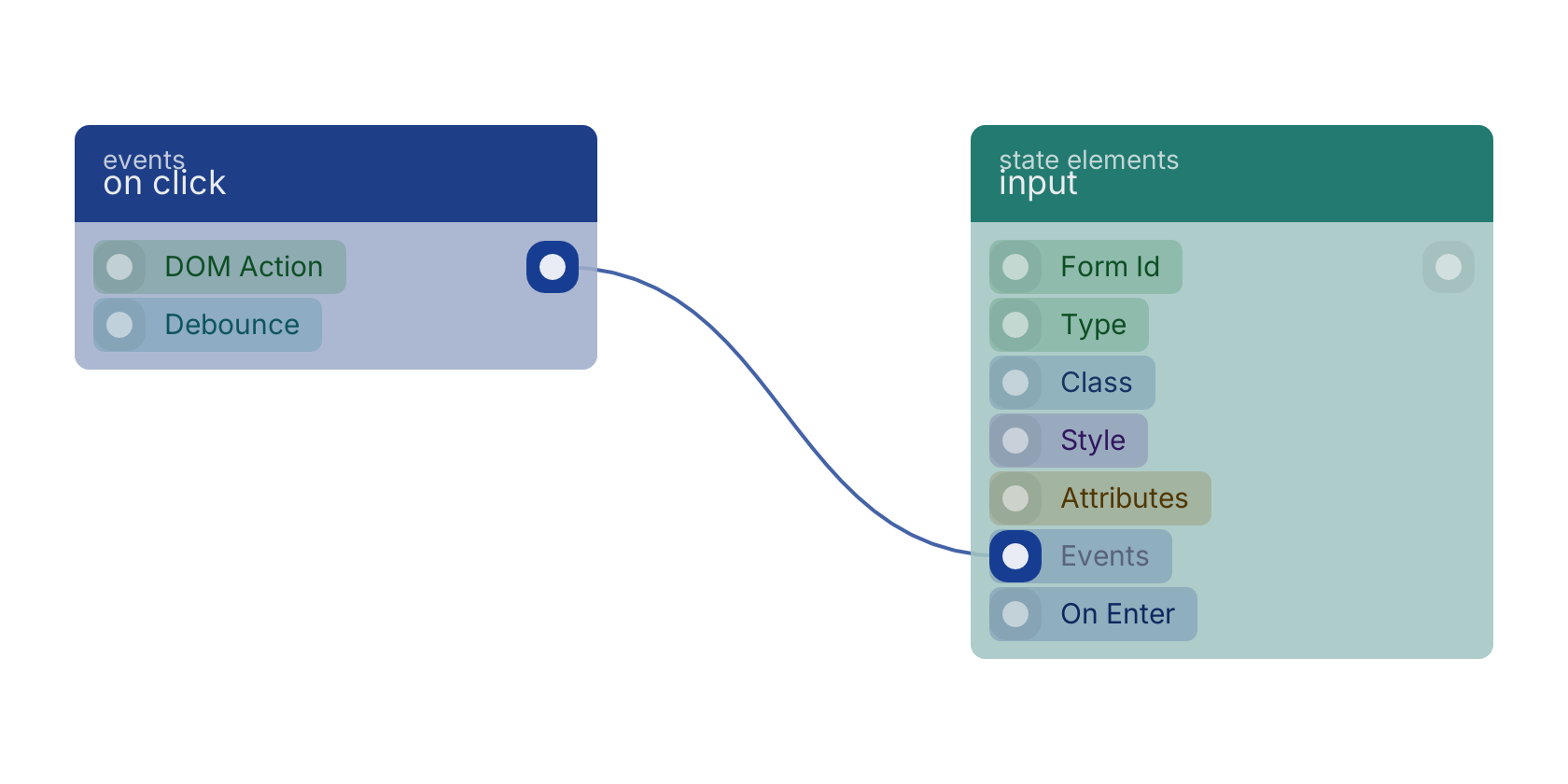

A typical wiring for on click: the stateevents out pin feeds input.

Studio canvas example for the on click block: typical wiring for on click.

Introduced in v14.0.1.

Cluster
