outlined alert

This block is part of the state ui group and was last modified in core v13.0.6.

outlined alert state v13.0.1 Updated v13.0.6

Generates outline styled information alert element with a icon next to the text.

In pins 6

text required
value
Text to be shown within the alert. Can be updated using state.value.
description
value
Description to be shown within the alert. Can be updated using state.description.
icon
value
Icon to be shown next to the text, be aware to include the icon font in your HTML/template. Icon can be updated using state.icon
class
uiclass
Assigns a CSS class to the element. • Hidden when unused
style
uistyle
Applies inline CSS style to the element • Hidden when unused
attributes
uiattributes
Adds custom attributes to the element. • Hidden when unused

Out pins 1

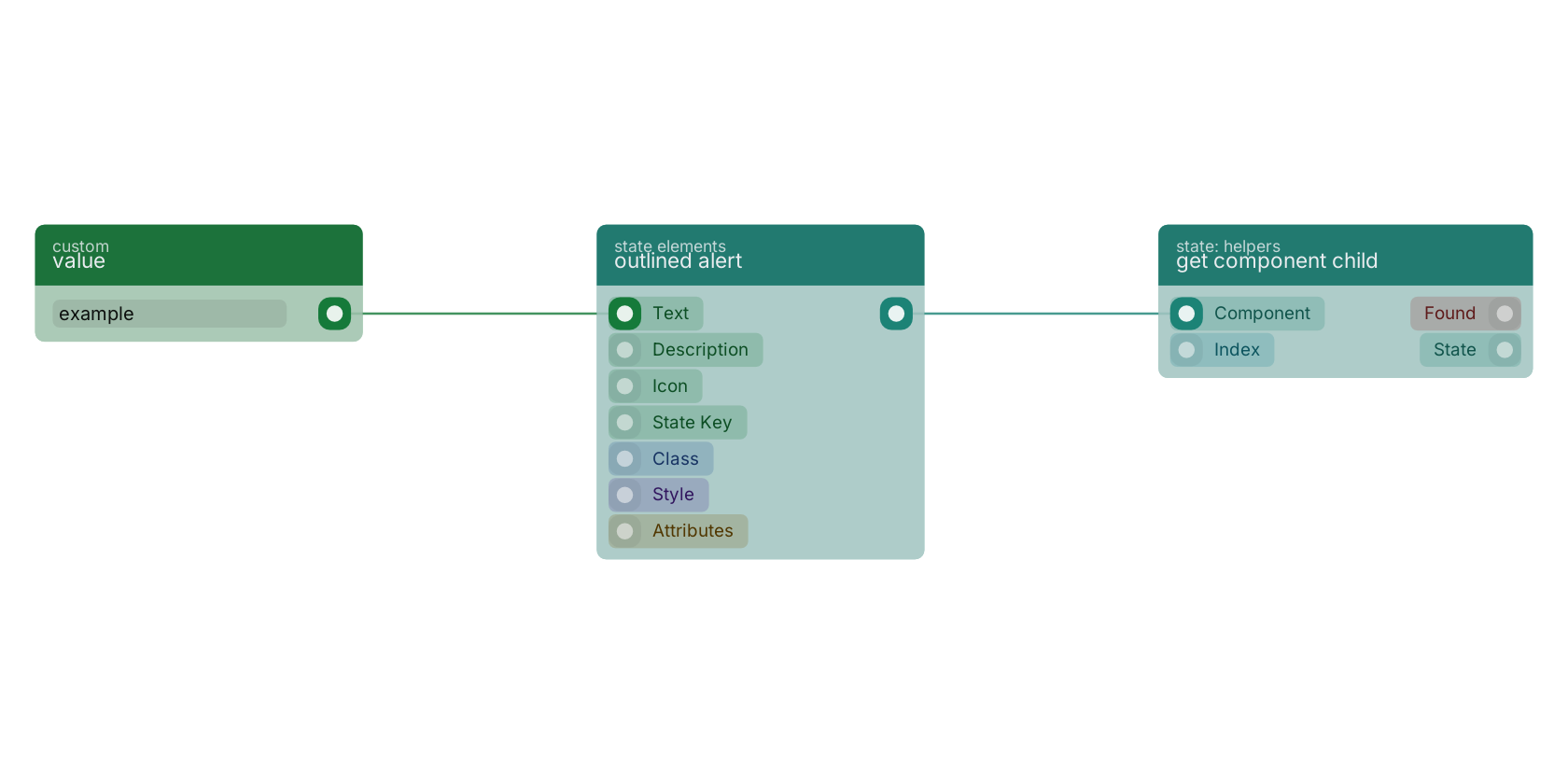

A typical wiring for outlined alert: value feeds the value pin; the state out pin feeds get component child.

Studio canvas example for the outlined alert block: typical wiring for outlined alert.

Introduced in v13.0.1.

Last modified in v13.0.6.
