Deprecated: use the web blocks for new pages This block belongs to state pages and UI components. Existing pages keep running, but new pages should use the web blocks. See Web Pages and the migration guide.

ul foreach

This block is part of the state ui group and was last modified in core v13.0.7.

Type Selection Required

This block requires you to select the data type you want to work with. You must manually select the type using the type selector modal. To access the modal, click the white button on the block.

ul foreach v13.0.7

Serves as a dynamic ul container.

In pins 5
  • array array required

    This array is the source of data for generating the individual elements. • Hidden when other fields are filled

  • state key value required

    This state key is the source of data for generating the individual elements. • Hidden when other fields are filled

  • class uiclass

    Assigns a CSS class to the element. • Hidden when unused

  • style uistyle

    Applies inline CSS style to the element • Hidden when unused

  • attributes uiattributes

    Adds custom attributes to the element. • Hidden when unused

Out pins 2
  • state state

    Returns the element to the frontend state.

  • iterator execute_function

    Allows you to execute a custom function to determine the content of each element.

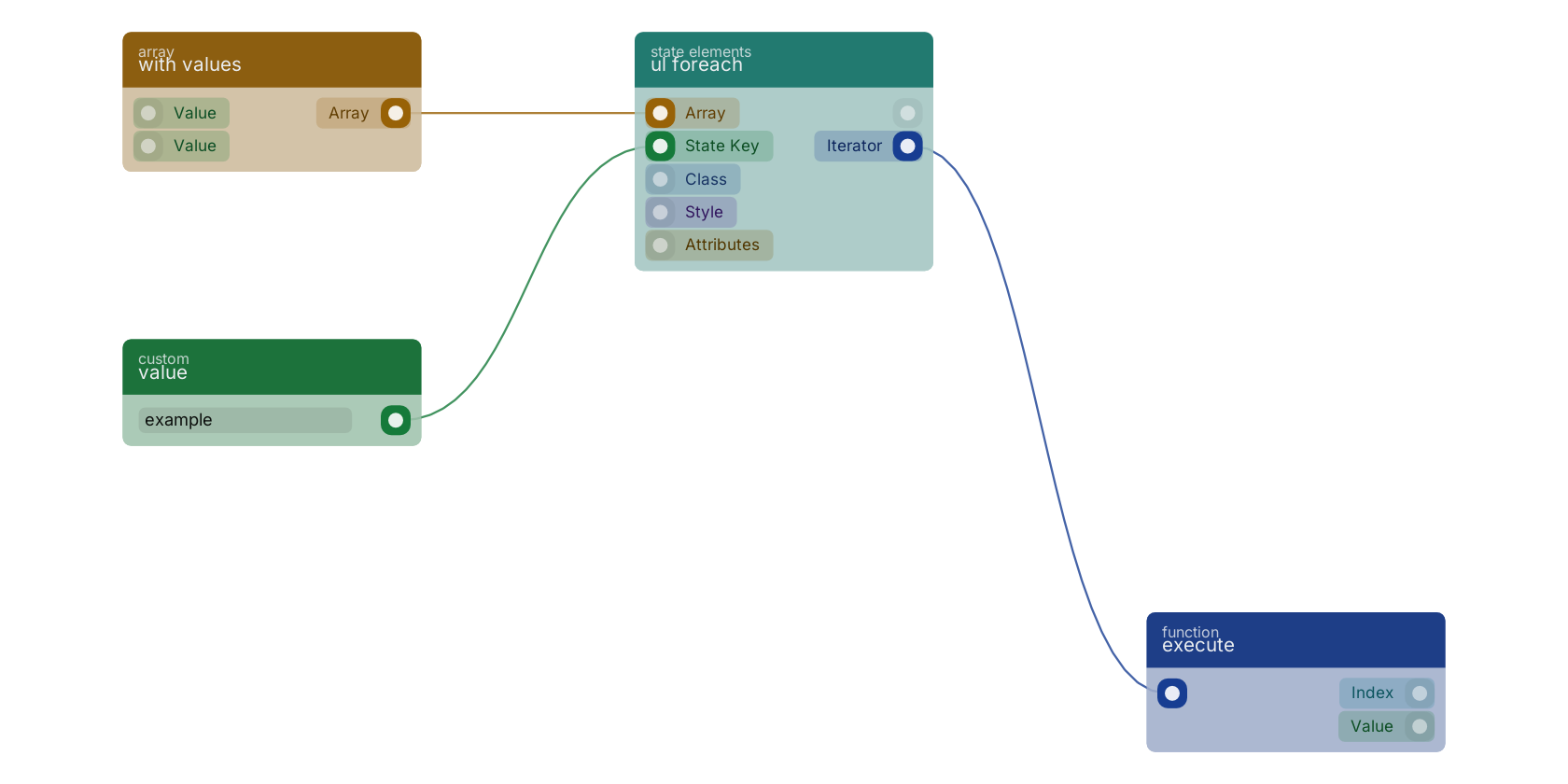

A typical wiring for ul foreach: with values feeds the array pin; value feeds the state pin; the function out pin wires to an execute block.

Studio canvas example for the ul foreach block: typical wiring for ul foreach.

Used in these guides

These documentation pages use or explain this block:

Version history

Introduced in v13.0.7.
