Blocks Deprecated

Deprecated: use the web blocks for new pages This block belongs to state pages and UI components. Existing pages keep running, but new pages should use the web blocks. See Web Pages and the migration guide.

iframe

This block is part of the state ui group and was last modified in core v13.0.6.

iframe state v13.0.1 Updated v13.0.6

A iframe element with URL state binding.

In pins 6

state value required
The state key this iframe URL binds to.
src value required
The URL that the iframe points to. • Hidden when other fields are filled
srcdoc value required
HTML that should be displayed in the iframe. • Hidden when other fields are filled
class uiclass
Assigns a CSS class to the element. • Hidden when unused
style uistyle
Applies inline CSS style to the element • Hidden when unused
attributes uiattributes
Adds custom attributes to the element. • Hidden when unused

Out pins 1

state state
Returns the element to the frontend state.

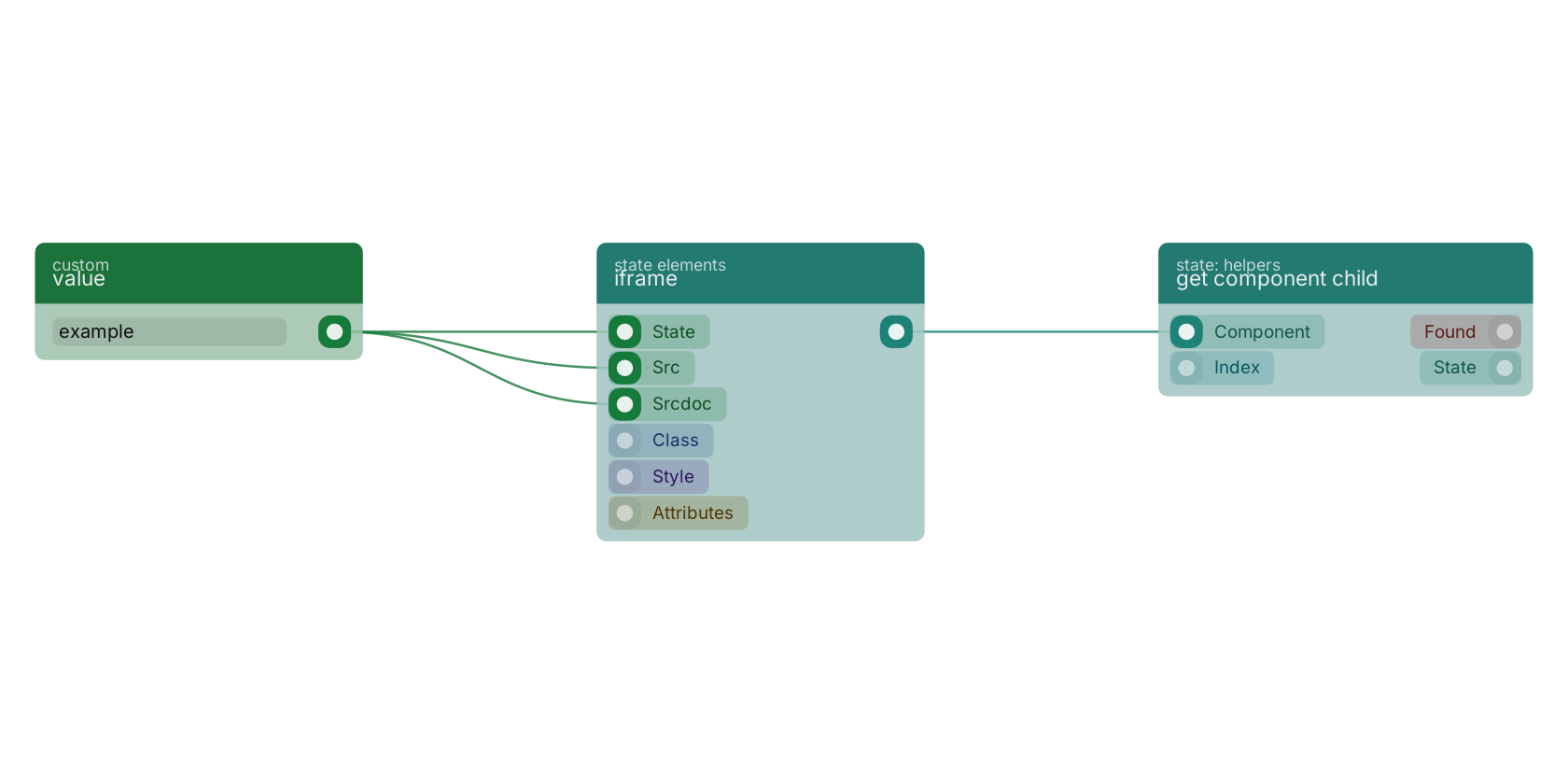

A typical wiring for iframe: value feeds the state pin; value feeds the src pin; value feeds the srcdoc pin; the state out pin feeds get component child.

Version history

Introduced in v13.0.1.

Last modified in v13.0.6.

Back to state ui Return to the main group to view all sub-groups Back to state elements Return to the group to view all blocks within this group
