label

This block is part of the state ui group and was last modified in core v13.0.6.

label v13.0.1 Updated v13.0.6

Represents a caption for an item in a user interface.

In pins 4
  • Text required
    value

    The text of the label element.

  • class
    uiclass

    Assigns a CSS class to the element. • Hidden when unused

  • style
    uistyle

    Applies inline CSS style to the element • Hidden when unused

  • attributes
    uiattributes

    Adds custom attributes to the element. • Hidden when unused

Out pins 1
  • state
    state

    Returns the element to the frontend state.

label
input label

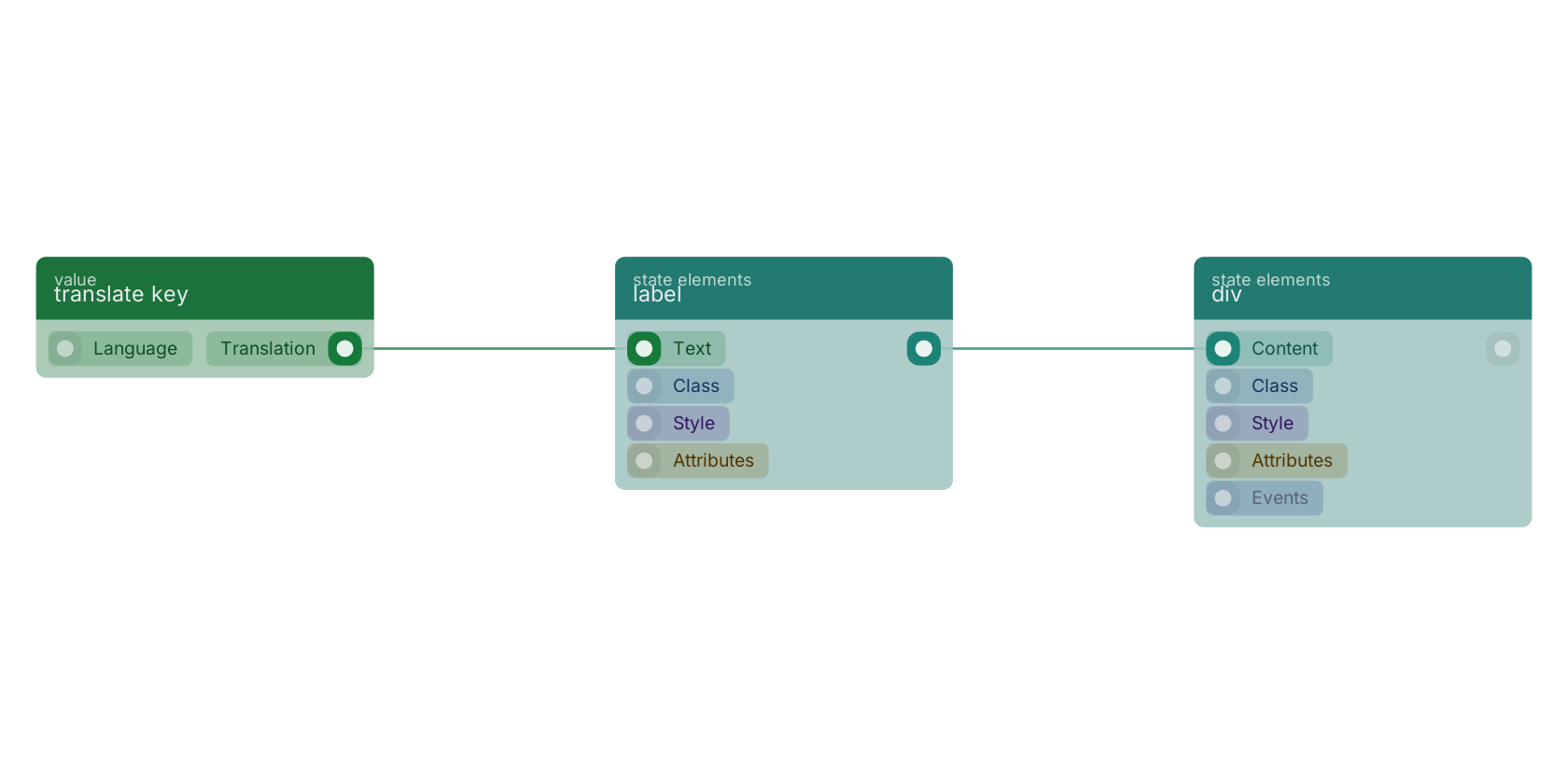

A typical wiring for label: translate key feeds the text pin; the state out pin feeds div.

Studio canvas example for the label block: typical wiring for label.

Commonly used with

In production blueprints, this block is most often wired together with:

  • div: this block feeds into it. Creates a dynamic and customizable div element on your web page.
  • translate key: feeds into this block. Translates a given key.

Version history

Introduced in v13.0.1.

Last modified in v13.0.6.
