play audio

This block is part of the state ui group and was last modified in core v10.4.28.

play audio flow v10.4.28

Plays the given audio file in the users browser

In pins 2 + flow

flow
flow
url required
value
The (whitelisted) URL of the Audio track you want to play
volume percentage
number
The volume you would like to play this sound at (0% - 100%)
Default 100

Out pins 0 + flow

flow
flow

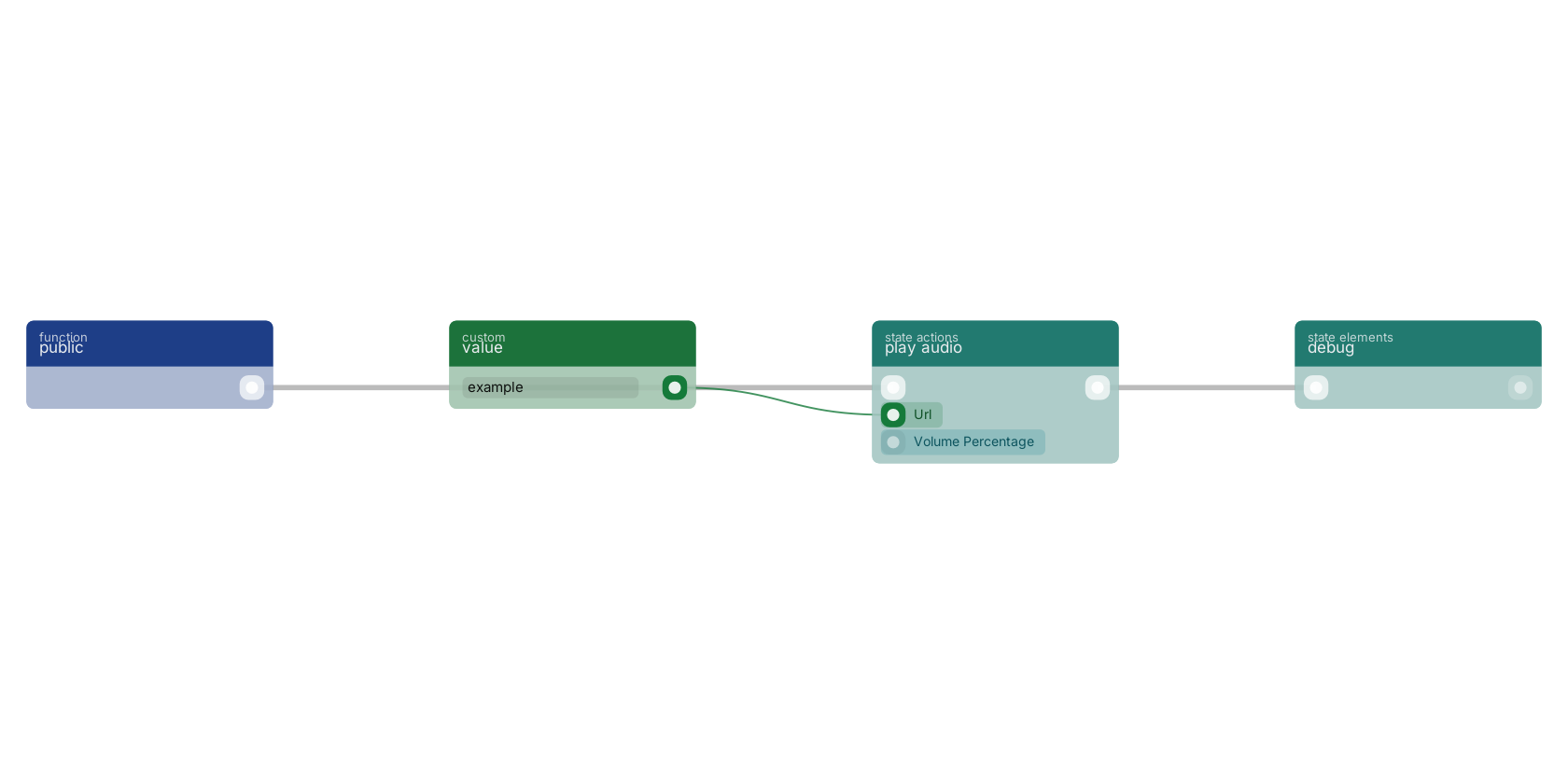

A typical wiring for play audio: a function trigger starts the flow; value feeds the url pin; the flow out pin feeds debug.

Studio canvas example for the play audio block: typical wiring for play audio.

Version history

Introduced in v10.4.28.
