progressbar
This block is part of the state ui group and was last modified in core v13.0.6.
progressbar v13.0.1 Updated v13.0.6A progress bar filled up to certain percentage.
In pins 4
- percentage required
numberSpecifies the progress percentage for the progress bar.
- class
uiclassAssigns a CSS class to the element. • Hidden when unused
- style
uistyleApplies inline CSS style to the element • Hidden when unused
- attributes
uiattributesAdds custom attributes to the element. • Hidden when unused
Out pins 1
- state
stateReturns the element to the frontend state.
progress bar |
percentage bar |

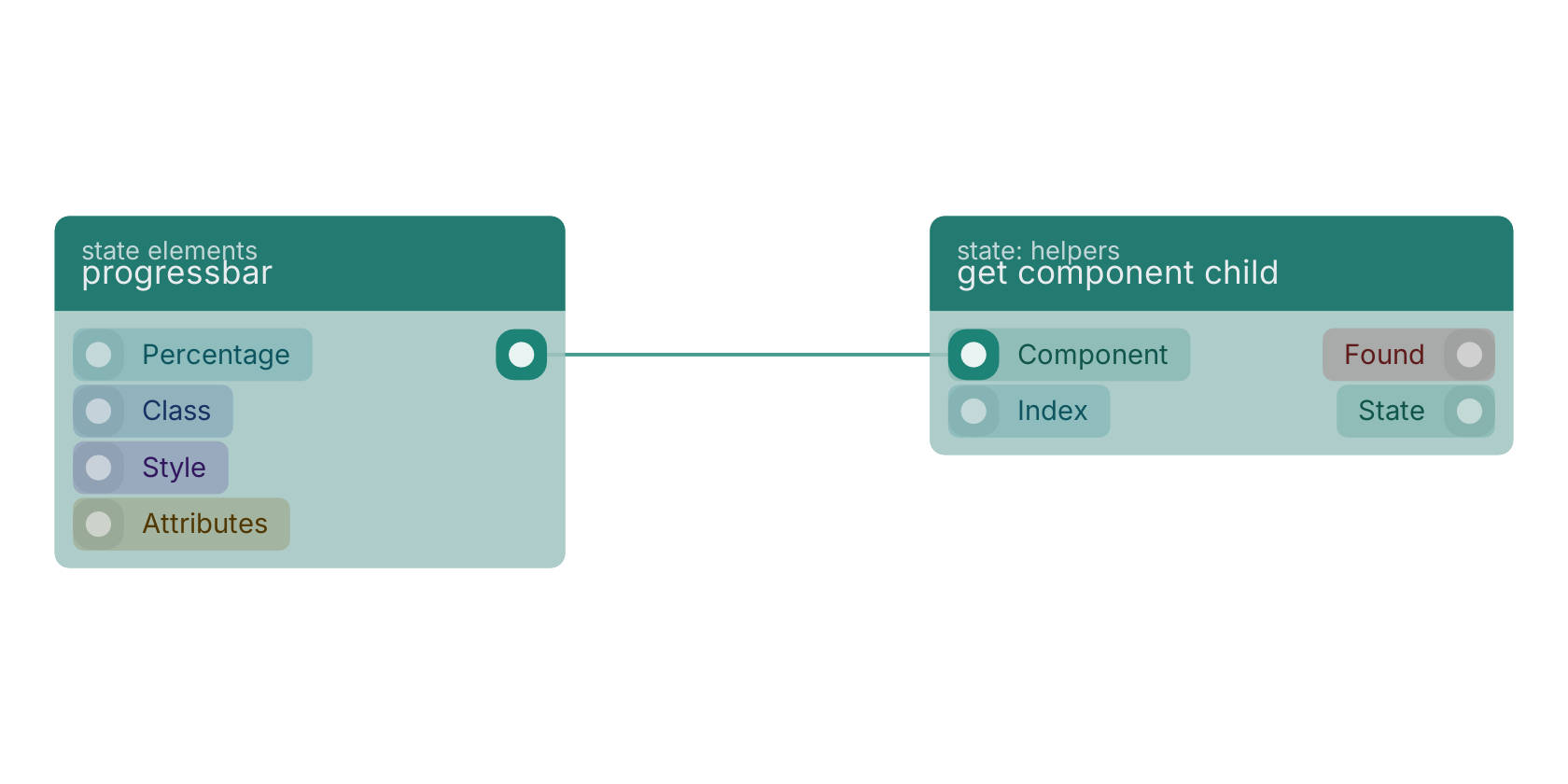

A typical wiring for progressbar: the state out pin feeds get component child.
Version history
Introduced in v13.0.1.
Last modified in v13.0.6.
