Blocks Deprecated
Deprecated: use the web blocks for new pages This block belongs to state pages and UI components. Existing pages keep running, but new pages should use the web blocks. See Web Pages and the migration guide.

set access token

This block is part of the state ui group and was last modified in core v10.4.28.

set access token v10.4.28

In pins 3 + flow
  • flow
  • value value required
  • path value

    Path to be used as cookie.

    Default /

  • duration number

    Seconds this cookie should be alive.

    Default 3600

Out pins 0 + flow
  • flow

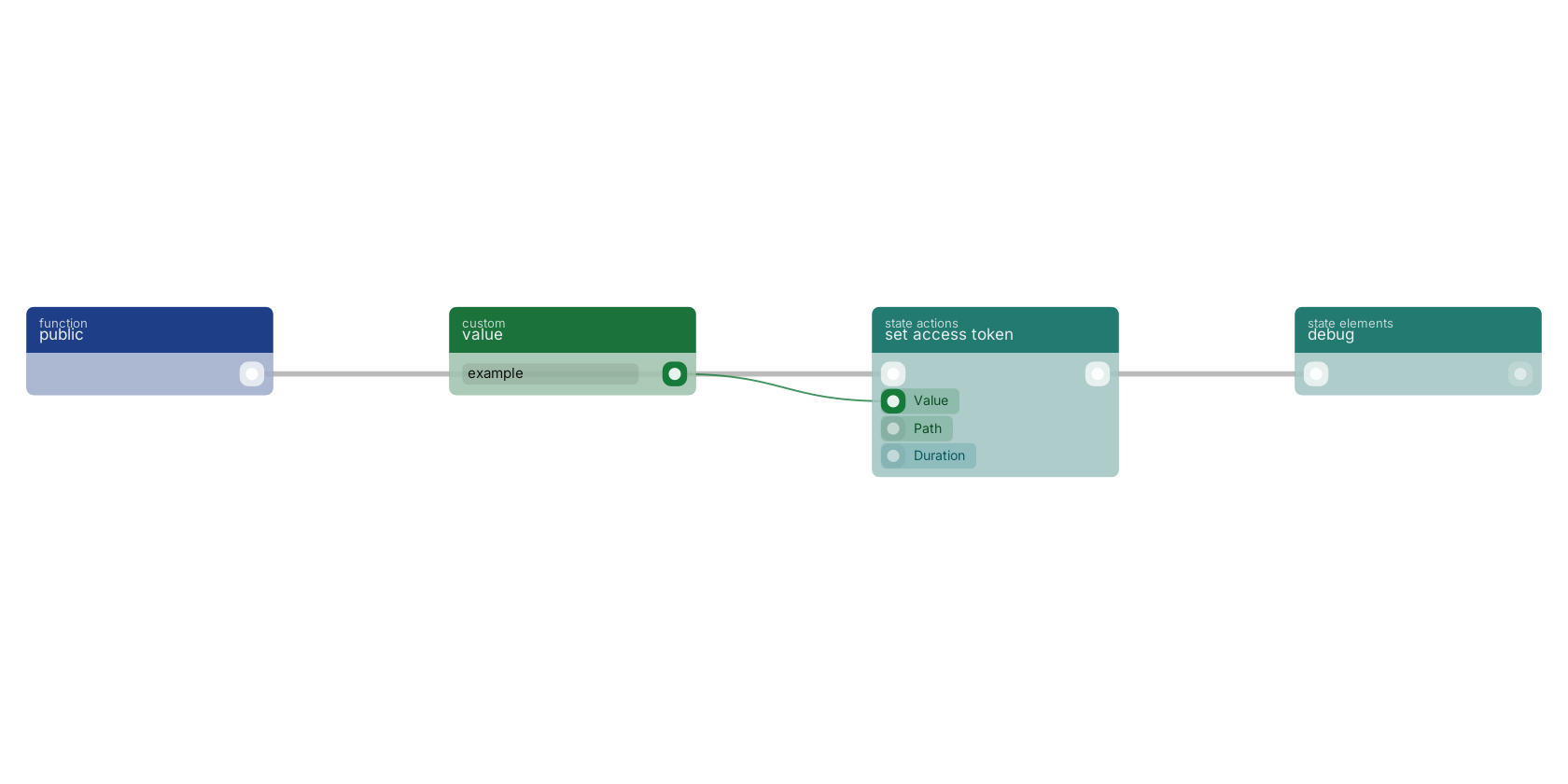

A typical wiring for set access token: a function trigger starts the flow; value feeds the value pin; the flow out pin feeds debug.

Studio canvas example for the set access token block: typical wiring for set access token.

Version history

Introduced in v10.4.28.
