Blocks Deprecated
Deprecated: use the web blocks for new pages This block belongs to state pages and UI components. Existing pages keep running, but new pages should use the web blocks. See Web Pages and the migration guide.

update server state fields

This block is part of the state ui group and was last modified in core v10.4.28.

Type Selection Required

This block requires you to select the data type you want to work with. You must manually select the type using the type selector modal. To access the modal, click the white button on the block.

Field Selection Required

This block requires field selection (in). You must manually select the fields you want to work with using the field selector modal. To access the modal, click the white button on the block.

update server state fields v10.4.28

Sends a state update to the frontend and triggers updates based of it.

In pins 2 + flow
  • flow
  • state keys array required

    State keys to update

  • skip trigger condition

    if true given, it will not send this update back to the backend.

Out pins 0 + flow
  • flow
update multiple states

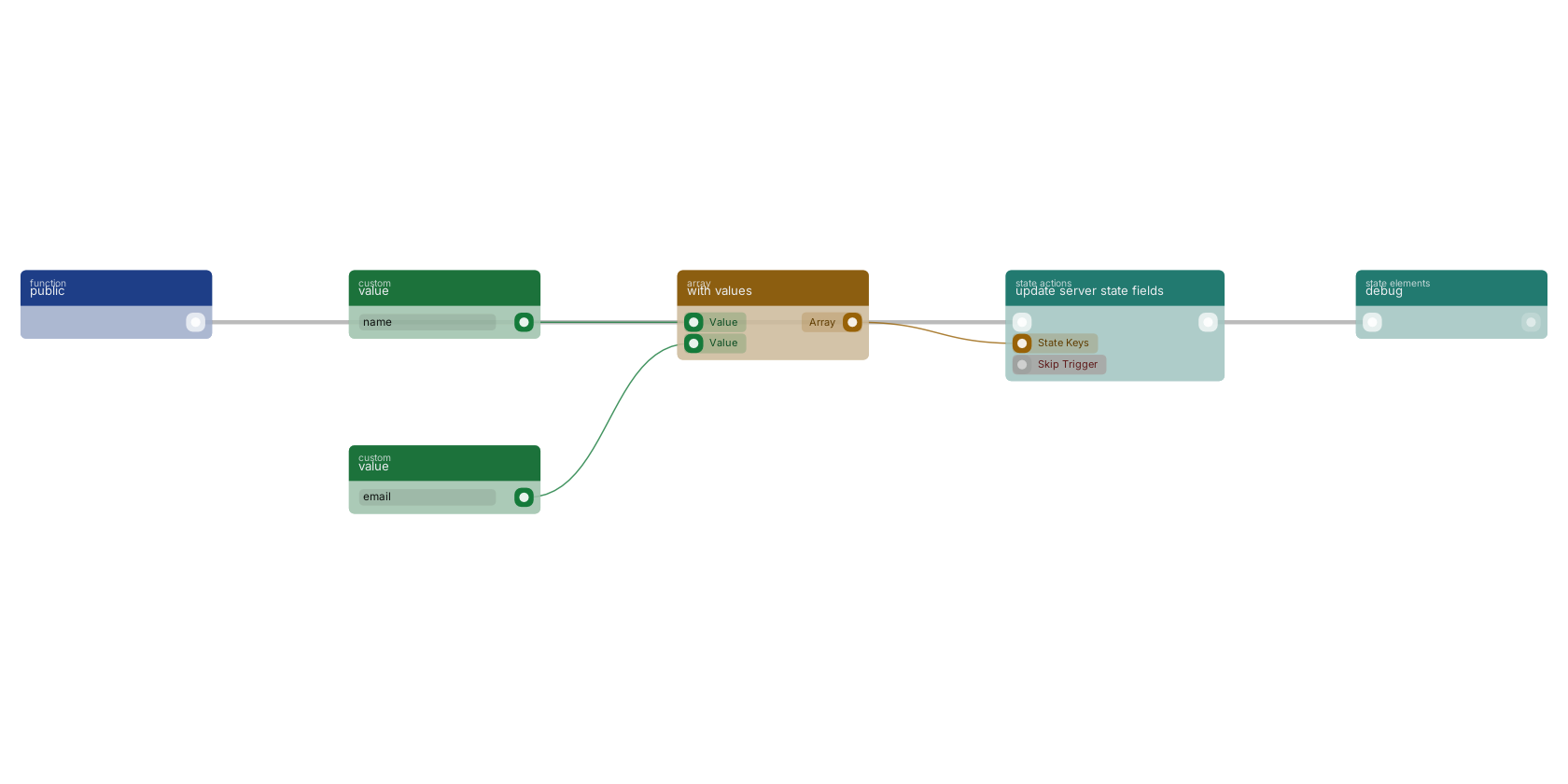

A function trigger starts the flow and update server state fields writes the named keys from the page state back to the backend. The keys pin takes an array of key names, built here with with values from two values. The flow then continues, here into a debug block that logs the state.

Studio canvas example for the update server state fields block: pushing fields to the page state.

Used in these guides

These documentation pages use or explain this block:

Version history

Introduced in v10.4.28.
