Blocks Deprecated

Deprecated: use the web blocks for new pages This block belongs to state pages and UI components. Existing pages keep running, but new pages should use the web blocks. See Web Pages and the migration guide.

button

This block is part of the state ui group and was last modified in core v13.0.6.

Function Selection Required

This block requires you to choose a custom function to execute when triggered. You must manually select the function you want to use using the function selector modal. To access the modal, click the white button on the block.

Connection Type

This block connects from a statedatatableconnection type block. Make sure to connect this block to the appropriate left-hand side connection.

button statedatatableconnection v13.0.1 Updated v13.0.6

Adds a button that can be placed anywhere in the row.

In pins 11

text value required
To be shown within the button, you can use data from the result like {{ name }}
icon value
To be shown next to the next.
class icon uiclass v13.0.6
Hidden when unused
style icon uistyle v13.0.6
Hidden when unused
attributes icon uiattributes v13.0.6
Hidden when unused
column title value v13.0.6
Column title to be shown for the column • Hidden when unused
class uiclass
Hidden when unused
style uistyle
Hidden when unused
attributes uiattributes
Hidden when unused
add before fielddefinitions
Adds the button before the given column. • Hidden when other fields are filled
add after fielddefinitions
Adds the button after the given column. • Hidden when other fields are filled

Out pins 1

statedatatableconnection statedatatableconnection

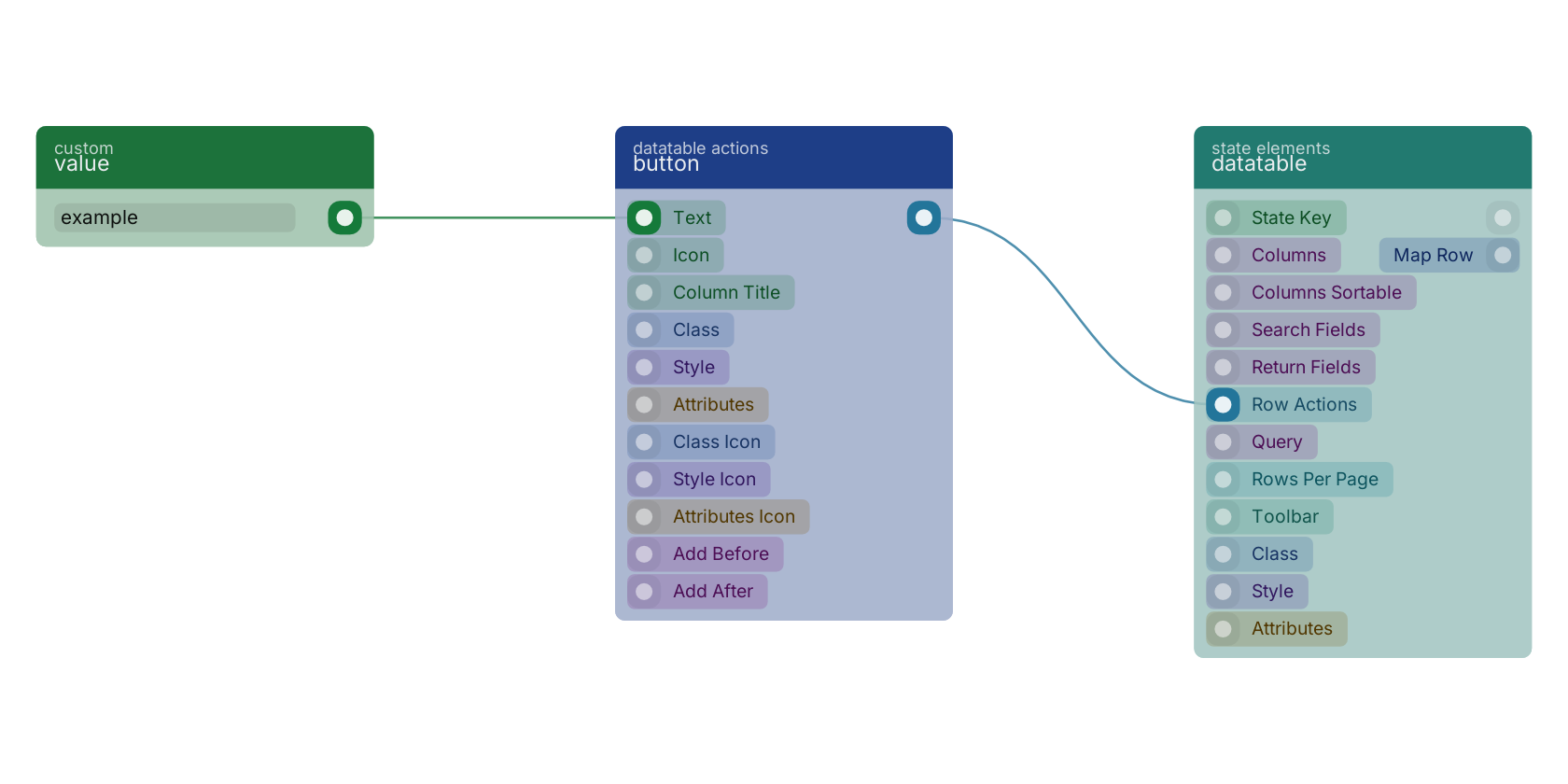

A typical wiring for button: value feeds the text pin; the statedatatableconnection out pin feeds datatable.

Version history

Introduced in v13.0.1.

Last modified in v13.0.6.
