get dynamic setting
This block is part of the system settings group and was last modified in core v10.4.28.
get dynamic setting v10.4.28 get a setting key using a dynamic value
In pins 1
- field required
value
Out pins 1
- value
value
Reads a system setting whose key comes from the field pin, FALLING BACK to the block's label text when field is empty. Outputs the setting's stored value, or nil when the key does not exist or the lookup fails; when both field and label are empty NO output is written at all.
get system key |

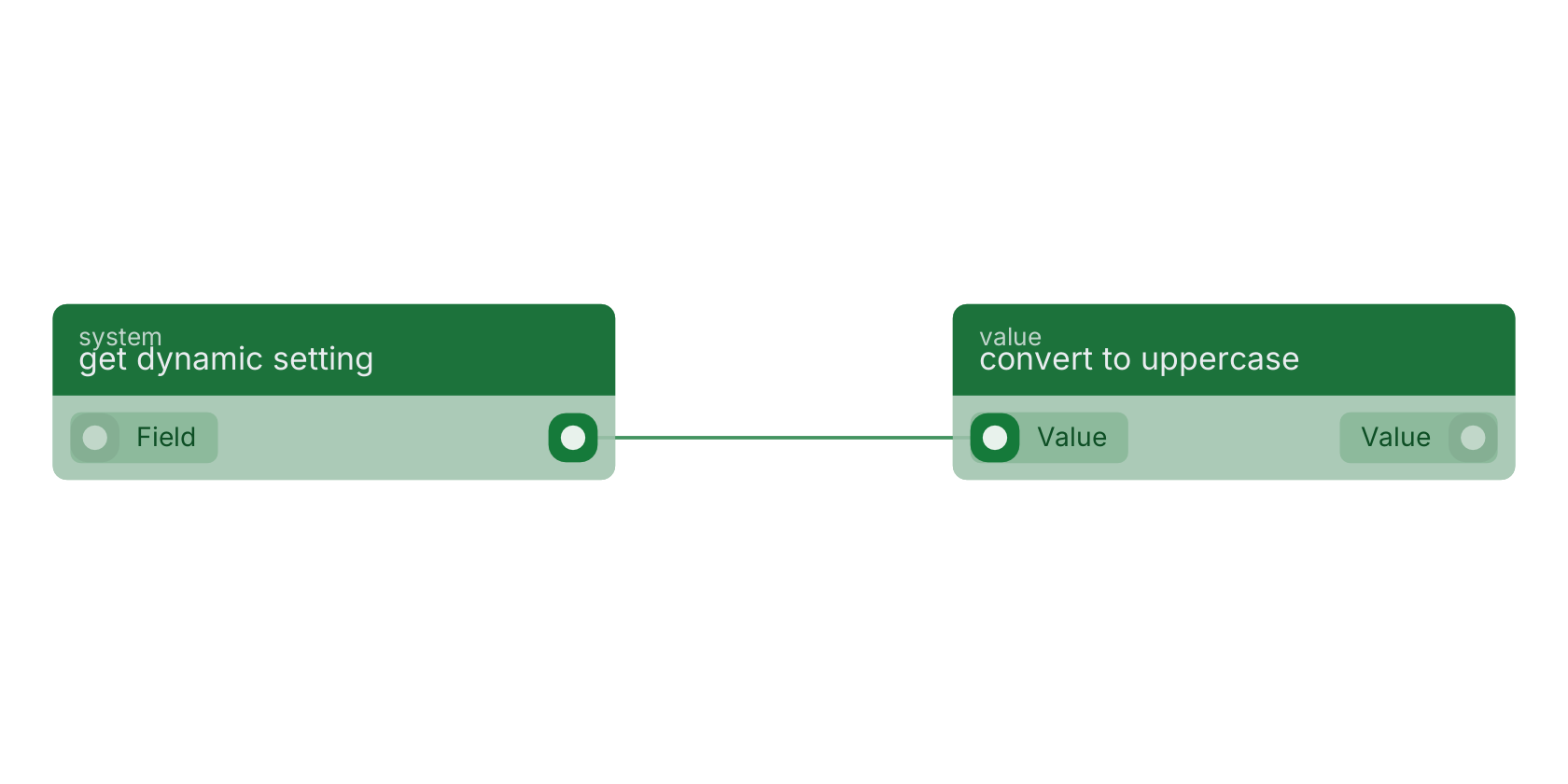

A typical wiring for get dynamic setting: the value out pin feeds convert to uppercase.
Version history
Introduced in v10.4.28.
