create timeout

This block is part of the timers group and was last modified in core v10.4.28.

create timeout v10.4.28

Creates a timeout to run the given function in X seconds.

In pins 2 + flow
  • flow
  • ID value required

    Unique ID across all blueprints to identify this timer.

  • seconds number required

    In how many seconds the given function should be executed

Out pins 1 + flow
  • flow
  • Function execute_function

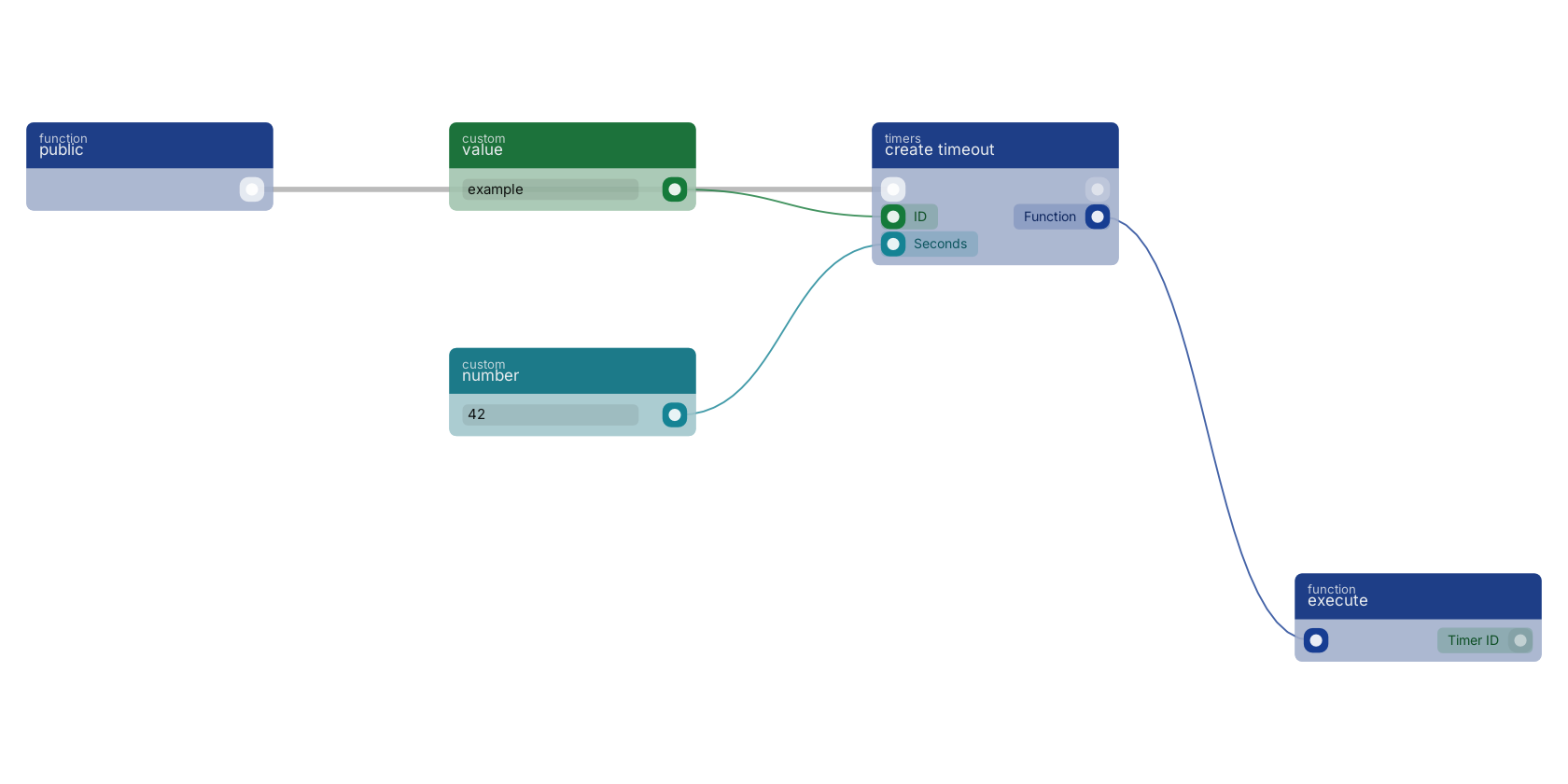

A typical wiring for create timeout: a function trigger starts the flow; value feeds the id pin; number feeds the seconds pin; the function out pin wires to an execute block.

Studio canvas example for the create timeout block: typical wiring for create timeout.

Version history

Introduced in v10.4.28.
