Blocks

open connection

This block is part of the twinfield group and was last modified in core v14.0.1.

Twinfield integration
open connection v12.0.1 Updated v14.0.1

Connects using oAuth 2.0 with your secured Twinfield environment.

In pins 1 + flow
  • flow
  • Office ID value

    The office to connect with by default.

Out pins 4 + flow
  • flow
  • connection twinfieldconnection
  • success condition

    Connection succeeded or not

  • user code value

    The user organisation code we verified

  • organisation code value

    The organisation code we verified

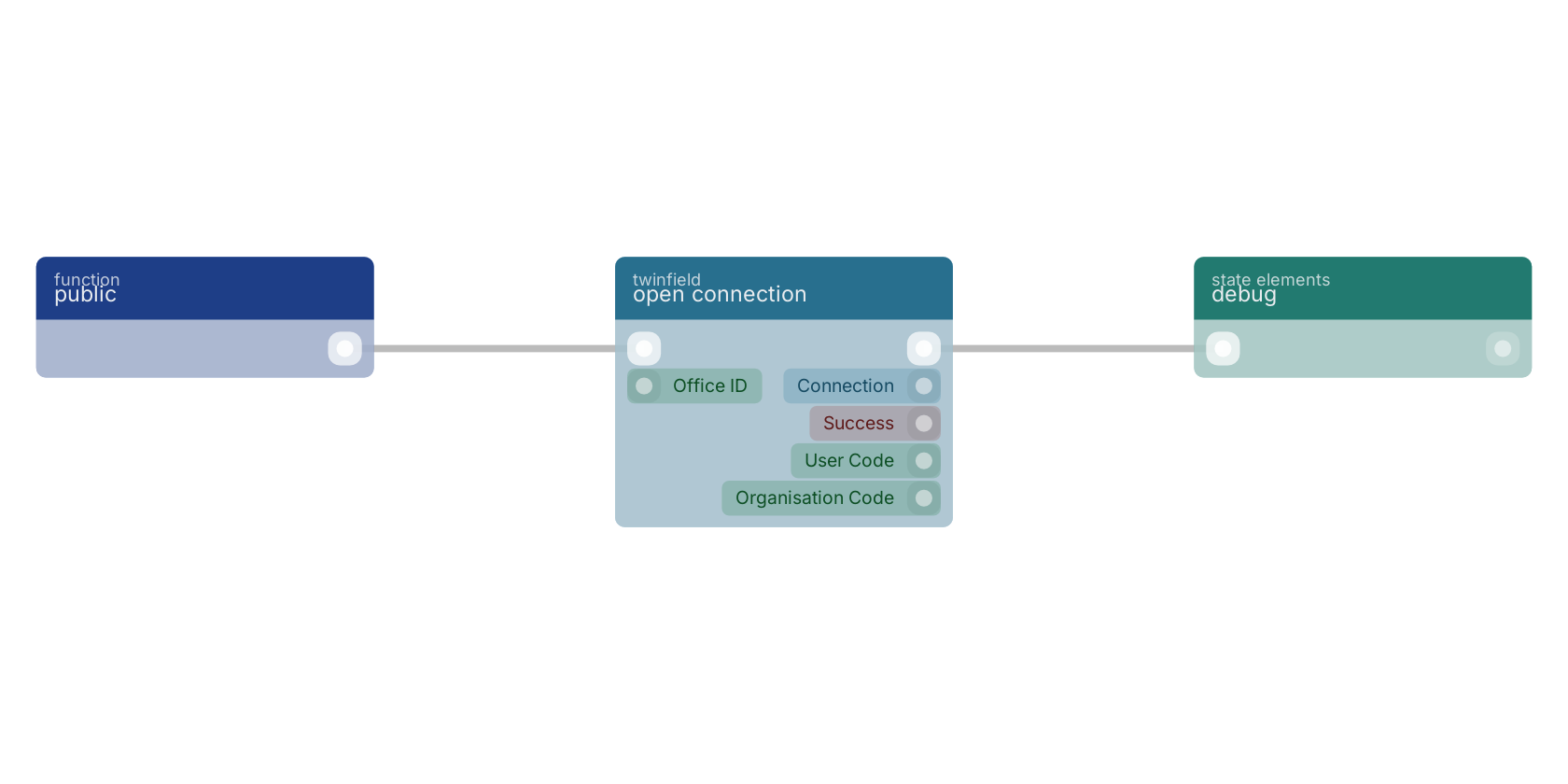

A typical wiring for open connection: a function trigger starts the flow; the flow out pin feeds debug.

Studio canvas example for the open connection block: typical wiring for open connection.

Version history

Introduced in v12.0.1.

Last modified in v14.0.1.
