geolocation from ip

This block is part of the value group and was last modified in core v14.0.3.

geolocation from ip condition v14.0.3

Retrieves location data (city, province, country, continent, timezone) from an IPv4/IPv6 address using a geo database. No coordinates are returned

In pins 1

value required
value
The IPv4 or IPv6 to geolocate from

Out pins 8

success
condition
Indicates if the lookup succeeded
city
value
City nearby the IP
province
value
Province nearby the IP
country
value
Country of the resident of the IP
continent
value
Continent of the resident of the IP
timezone
value
Timezone of the country
Accuracy
number
Accuracy Radius in km
error
value
Shown error if the lookup failed

Resolves an IP to city, province, country, continent, timezone and accuracy_radius (km); NO latitude/longitude outputs exist. An empty ip is looked up as 0.0.0.0. On any failure success stays false, the location pins stay nil, and error carries INVALID_IP, GEOLOCATOR_NOT_AVAILABLE, LOOKUP_FAILED or NOT_FOUND.

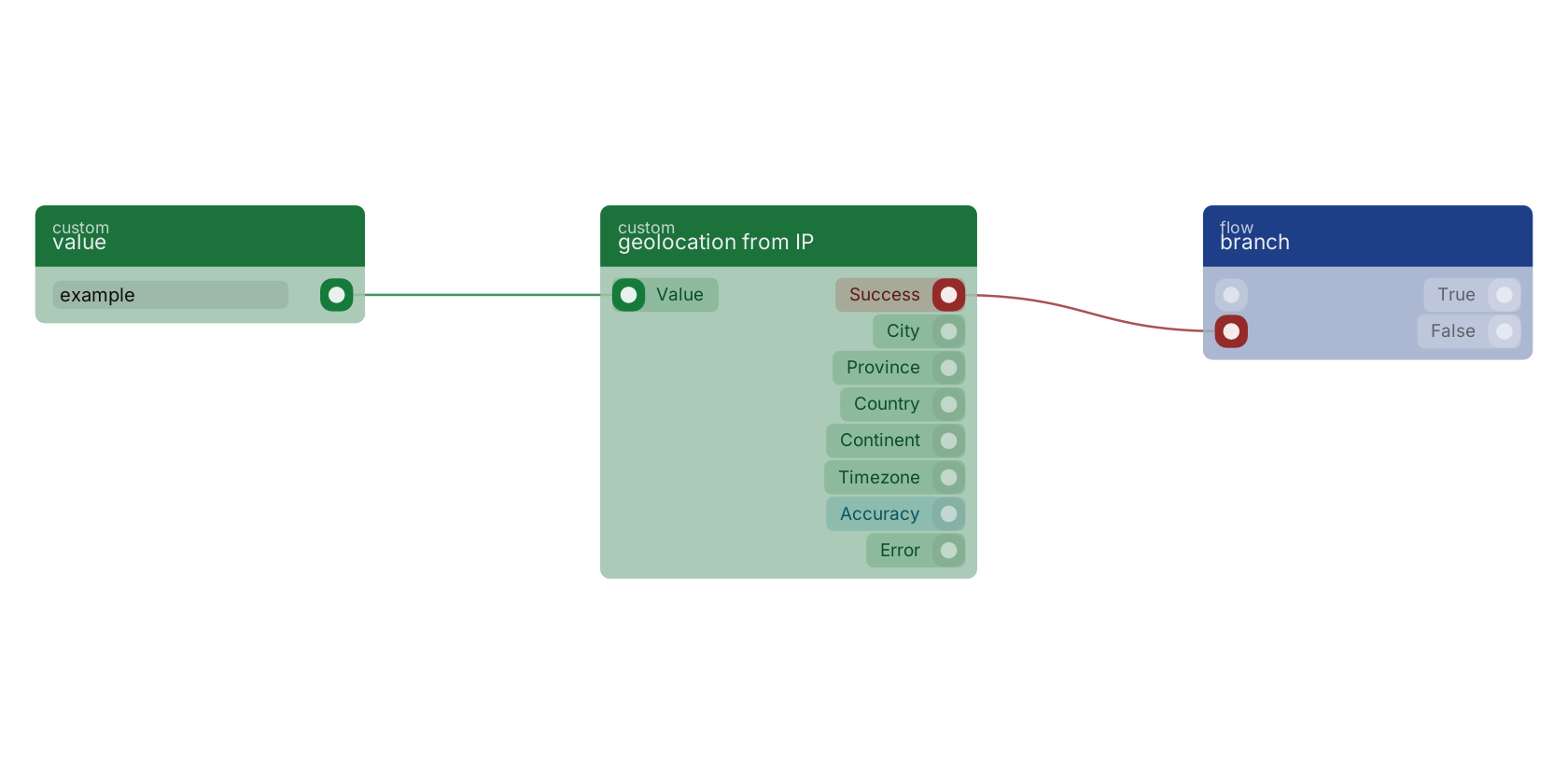

A typical wiring for geolocation from IP: value feeds the ip pin; the success out pin feeds branch.

Version history

Introduced in v14.0.3.
