l33t decoder
This block is part of the value group and was last modified in core v10.4.28.
l33t decoder v10.4.28 In pins 1
- value required
value
Out pins 1
- value
value
Replaces leet-speak tokens with letters, trying the LONGEST token at each position, but advances only ONE character after a match, so the tail of a multi-character token is decoded again. Example: "13" -> "BE" (13->B, then 3->E). Decoded letters keep the mixed upper/lower case of the internal mapping table; unmatched characters pass through unchanged.
leet |

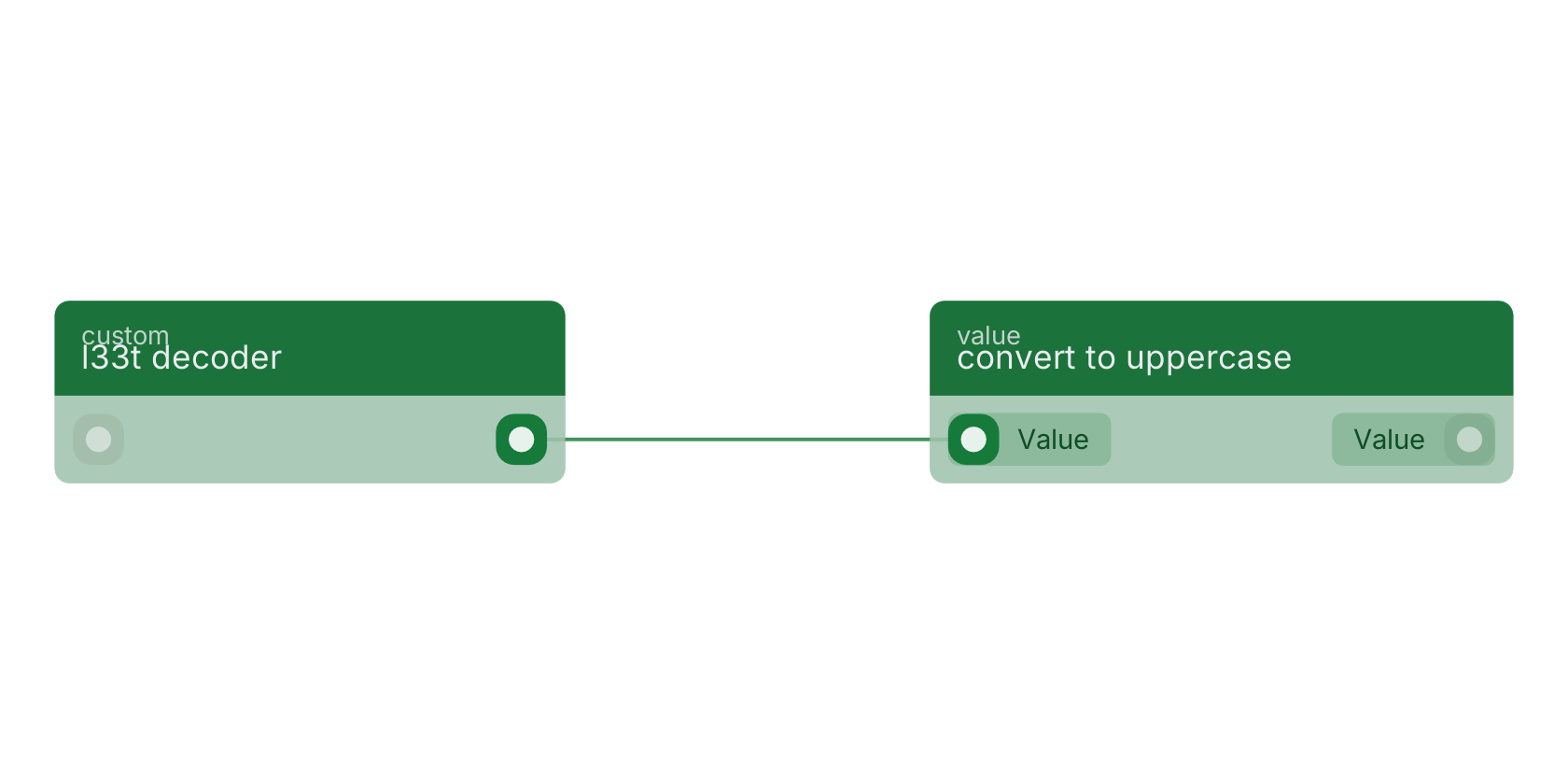

A typical wiring for l33t decoder: the value out pin feeds convert to uppercase.
Version history
Introduced in v10.4.28.
