parser
This block is part of the value group and was last modified in core v10.4.28.
parser v10.4.28 In pins 1
- URL required
value
Out pins 12
- host
value - port
value - protocol
value - hash
value - hostname
value - href
value - origin
value - username
value - password
value - pathname
value - search
value - search params
array
Decomposes the URL: protocol INCLUDES the trailing ":", search INCLUDES the leading "?", hash INCLUDES the leading "#", and search_params_entries is an array of {name,value} objects preserving query order. When the url pin is unwired or the URL cannot be parsed, NO out-pins are set at all -- there is no error signal.

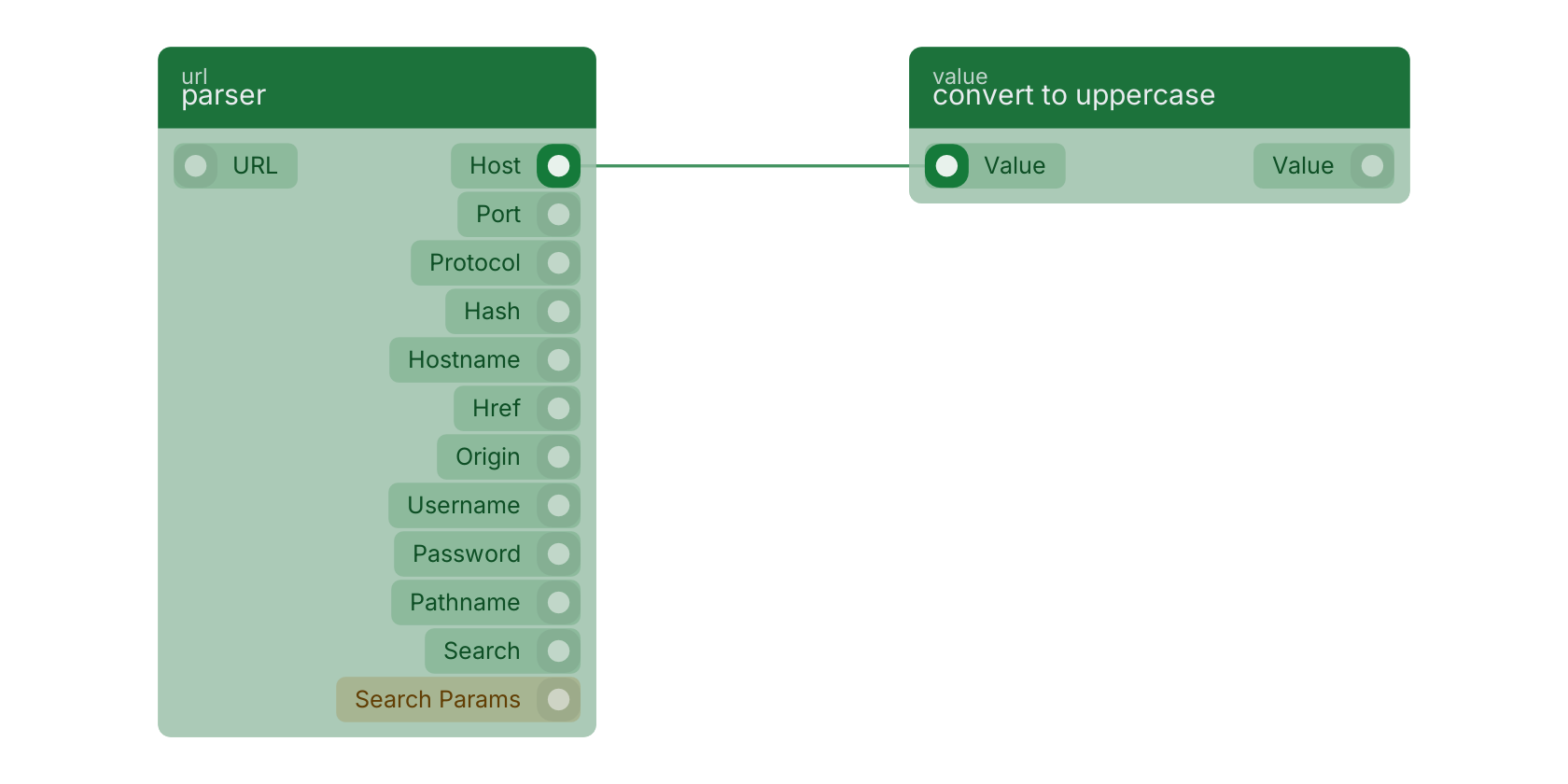

A typical wiring for parser: the host out pin feeds convert to uppercase.
Version history
Introduced in v10.4.28.
