pbkdf2
This block is part of the value group and was last modified in core v10.4.28.
pbkdf2 v10.4.28 In pins 5
- Password required
value - Salt required
value - Iter. required
number - Keylen required
number - Digest required
value
Out pins 1
- value
value
Derives a PBKDF2 key and outputs it as lowercase hex; keylen counts BYTES, so the hex output is 2*keylen characters (default 512 bytes -> 1024 chars). digest selects sha1, sha256, or sha512 -- any other value silently uses sha512. When password or salt is empty, NOTHING is output (the out-pin stays unset); iterations falls back to 10000 only when the pin is entirely absent.
password |

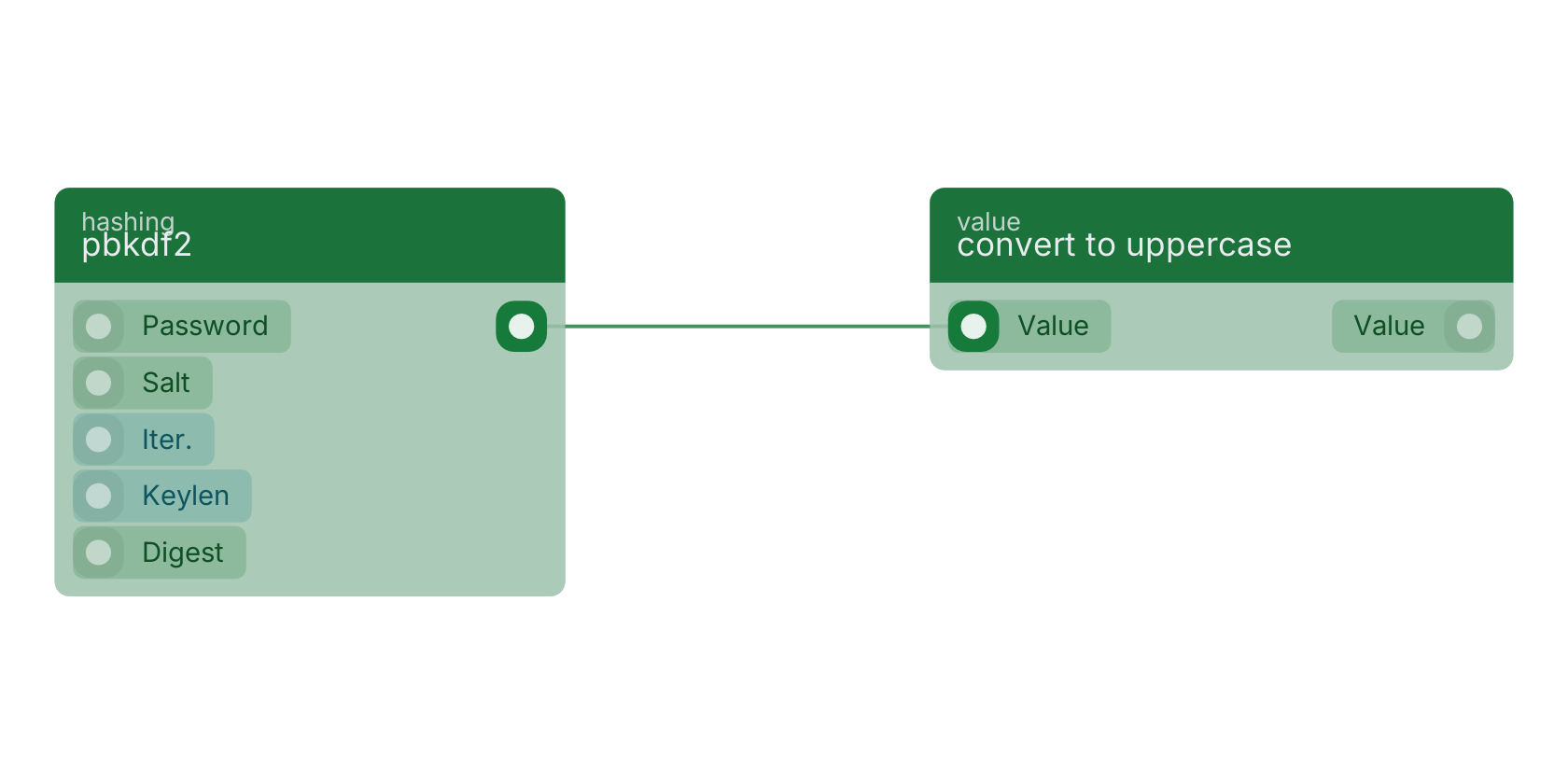

A typical wiring for pbkdf2: the value out pin feeds convert to uppercase.
Version history
Introduced in v10.4.28.
