qr code
This block is part of the value group and was last modified in core v10.4.28.
qr code v10.4.28 A basic QR code.
In pins 3
- value required
value - options
objectHidden when unused
- output
valueDefines the output format, possible options: dataurl OR string. • Hidden when unused
Out pins 1
- value
valueReturns a QR code.
Renders a QR code from the input string: plain text when output="string" (default) or a data URI when output="dataurl". options.scale (1-20, default 4) and options.margin (0-10, default 4) are honored; out-of-range values silently keep the defaults. Empty input or a generation error outputs "" rather than failing.

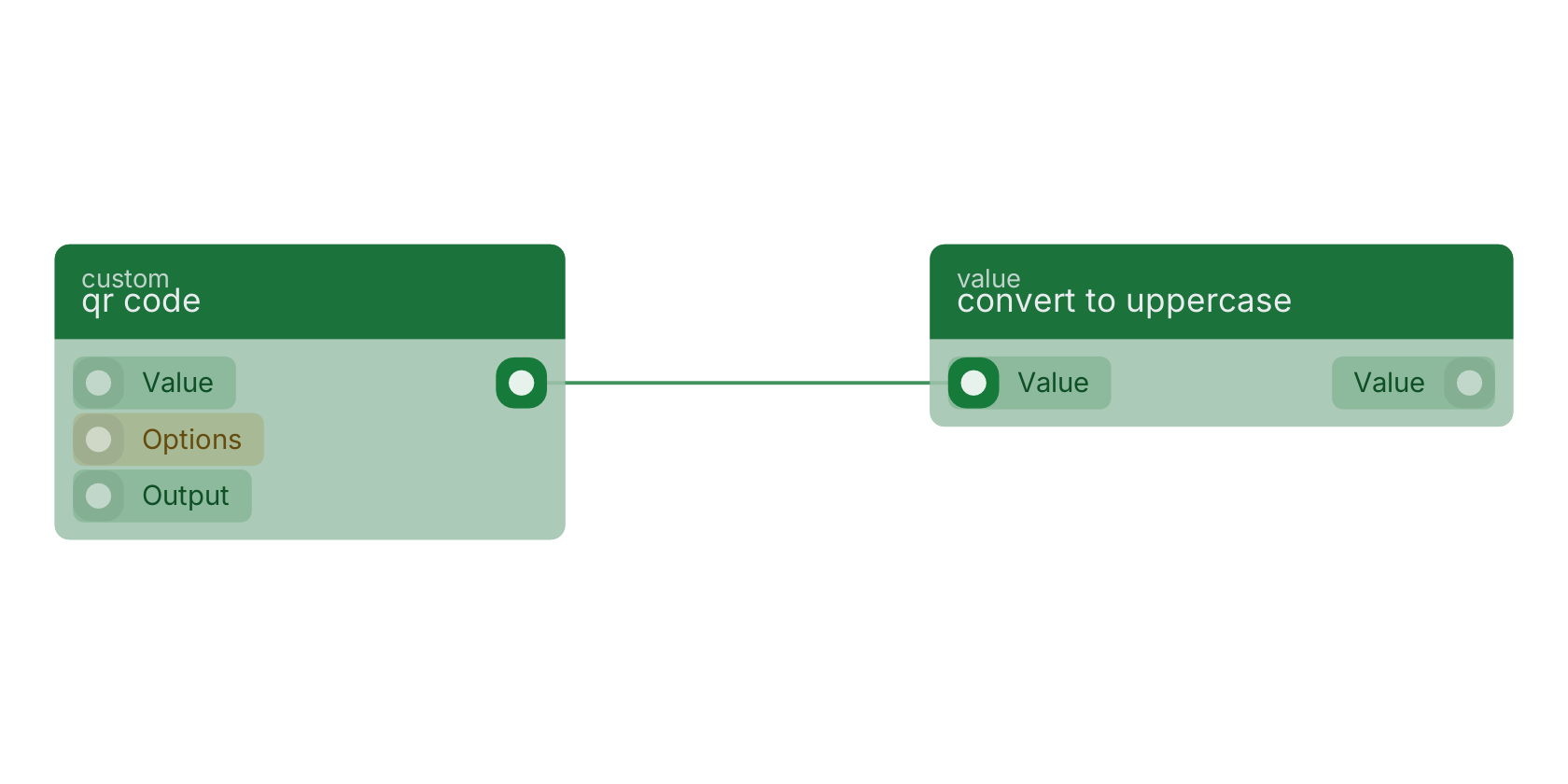

A typical wiring for qr code: the value out pin feeds convert to uppercase.
Version history
Introduced in v10.4.28.
