sha1
This block is part of the value group and was last modified in core v10.4.28.
sha1 v10.4.28 In pins 2
- secret required
value - value required
value
Out pins 1
- signature
value
Outputs the HMAC-SHA1 of value keyed with secret, as lowercase hex on the signature pin. Unwired or empty pins are treated as "" -- the block still emits a signature rather than erroring.

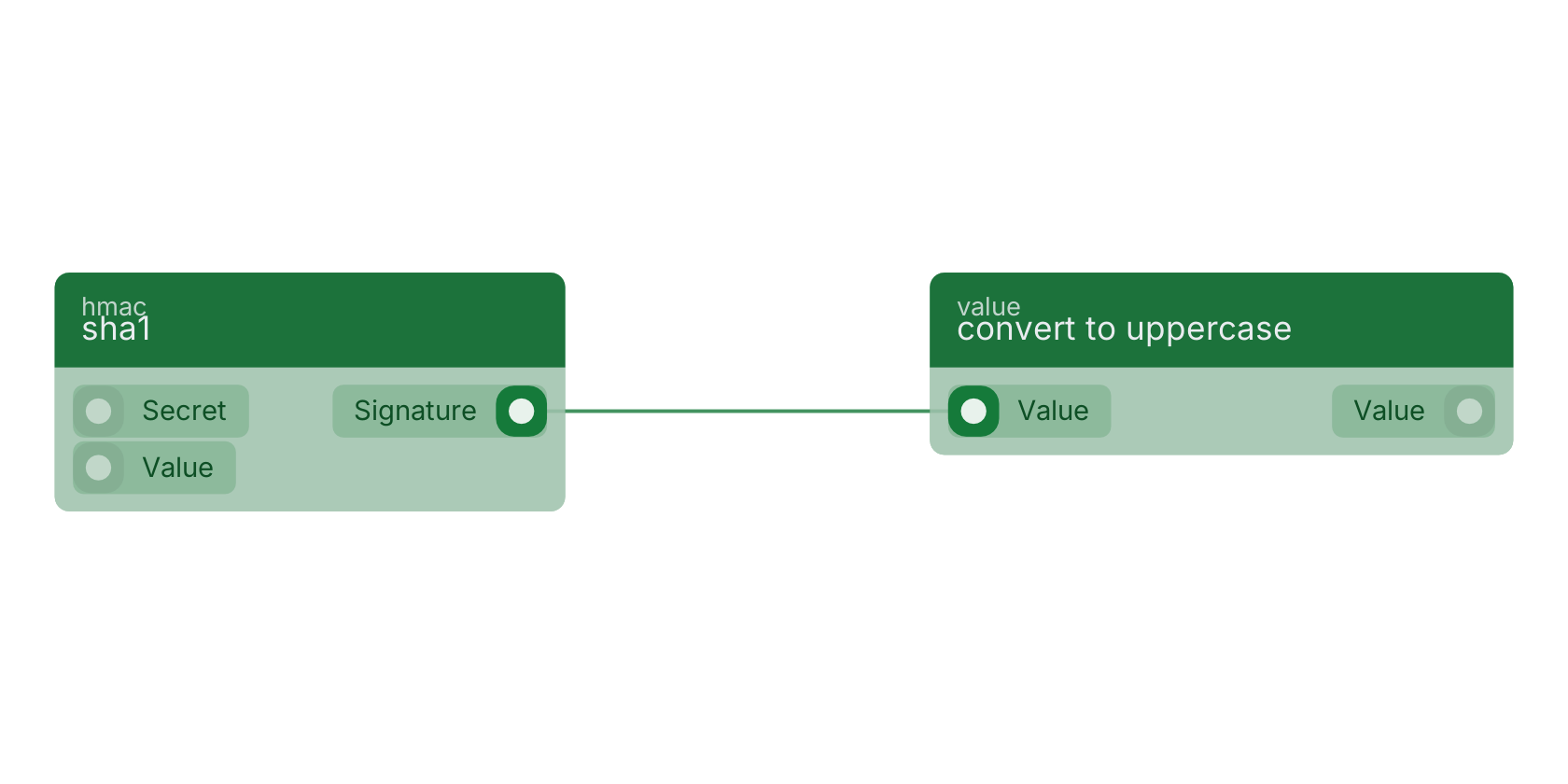

A typical wiring for sha1: the signature out pin feeds convert to uppercase.
Version history
Introduced in v10.4.28.
