get cluster members

This block is part of the virtualisation group and was last modified in core v15.0.0.

LXD integration
get cluster members v13.0.9 Updated v15.0.0

Retreives the LXD cluster members.

In pins 1 + flow
  • flow
  • Connection lxdconnection required

    The LXD connection

Out pins 4 + flow
  • flow
  • Connection lxdconnection

    The LXD connection

  • Success condition

    If successful, this pin returns true.

  • Members array

    The members of the cluster.

  • Error value

    Error message if the cluster members could not be requested.

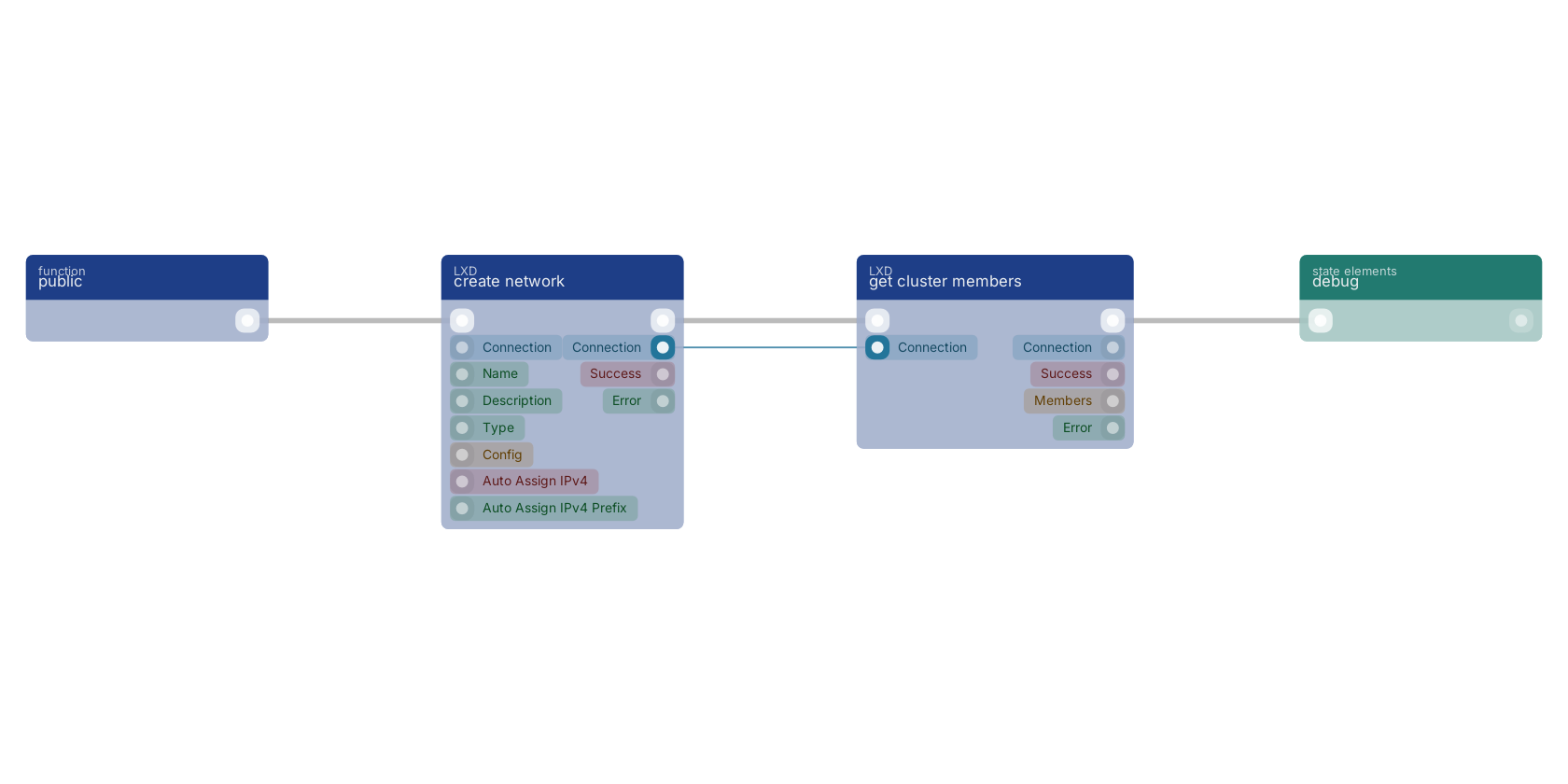

A typical wiring for get cluster members: a function trigger starts the flow; create network feeds the connection pin; the flow out pin feeds debug.

Studio canvas example for the get cluster members block: typical wiring for get cluster members.

Version history

Introduced in v13.0.9.

Last modified in v15.0.0.
