get network info

This block is part of the virtualisation group and was last modified in core v15.0.0.

get network info lxdconnection v13.0.9 Updated v15.0.0

Retreives all the info of a network on LXD server.

In pins 2 + flow

flow
flow
Connection required
lxdconnection
The LXD connection
Network name required
value
The name of the network you want to get info of.

Out pins 7 + flow

flow
flow
Connection
lxdconnection
The LXD connection
Success
condition
If successful, this pin returns true.
Data
object
The info of the network.
Status
value
The status of the network.
Used by
array
All the things in your LXD server that use this network.
IPv4
value
The IPV4 address of the network.
Error
value
Error message if the network could not be requested.

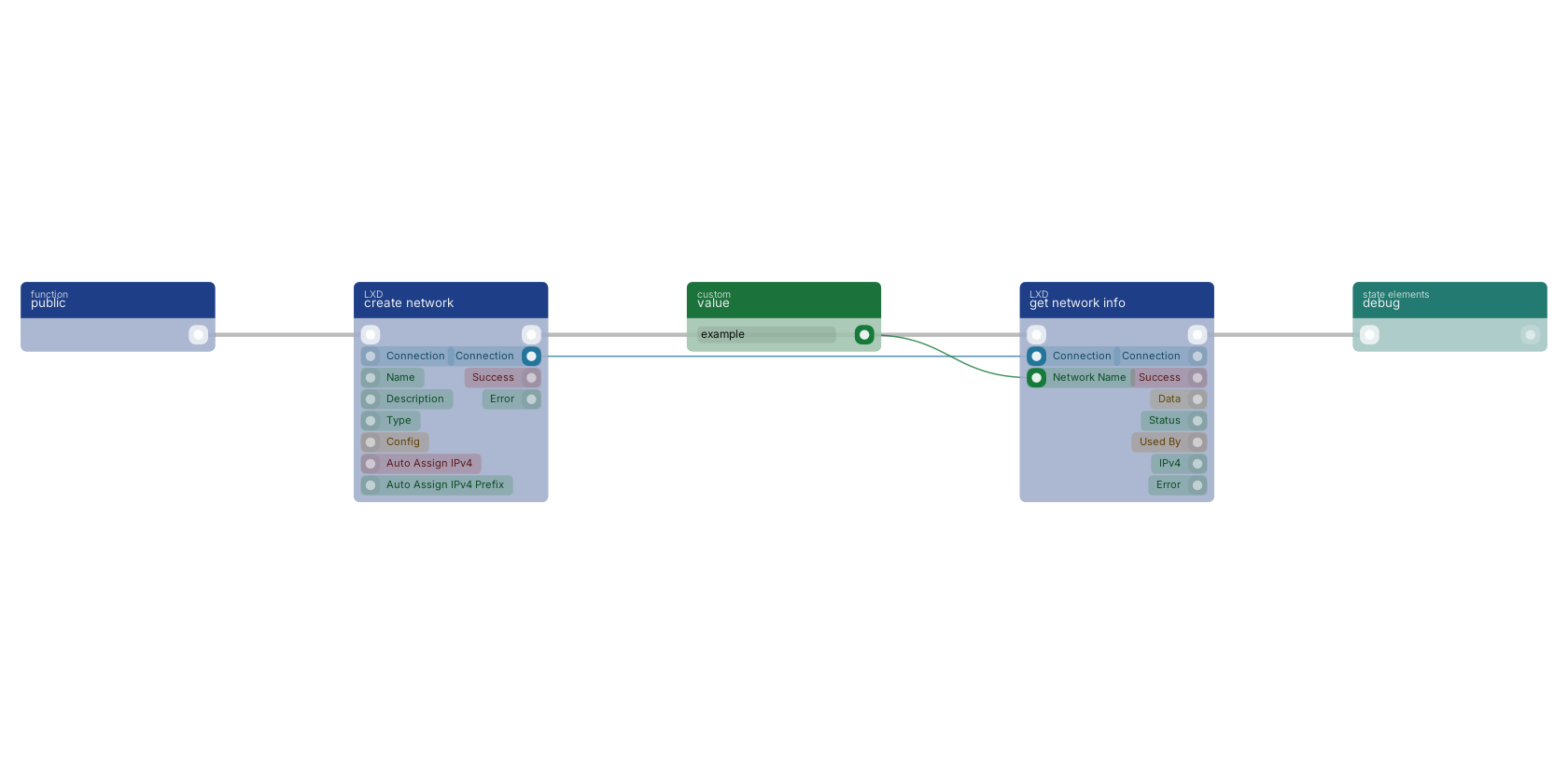

A typical wiring for get network info: a function trigger starts the flow; create network feeds the connection pin; value feeds the network_name pin; the flow out pin feeds debug.

Studio canvas example for the get network info block: typical wiring for get network info.

Version history

Introduced in v13.0.9.

Last modified in v15.0.0.
