update network acl
This block is part of the virtualisation group and was last modified in core v15.0.0.
update network acl v13.0.9 Updated v15.0.0Updates the given network ACL on the LXD server.
- flow
flow - Connection required
lxdconnectionThe LXD connection
- Network ACL Name required
valueThe name of the network ACL to update.
- Config required
arrayArray of all the configs to set, has to be array with objects that all have fields key and value.
- Ingress rules required
arrayArray of all the ingress rules to set, has to be array with objects.
- Egress rules required
arrayArray of all the ingress rules to set, has to be array with objects.
- flow
flow - Connection
lxdconnectionThe LXD connection
- Success
conditionIf successful, this pin returns true.
- Error
valueError message if the network ACL could not be updated.

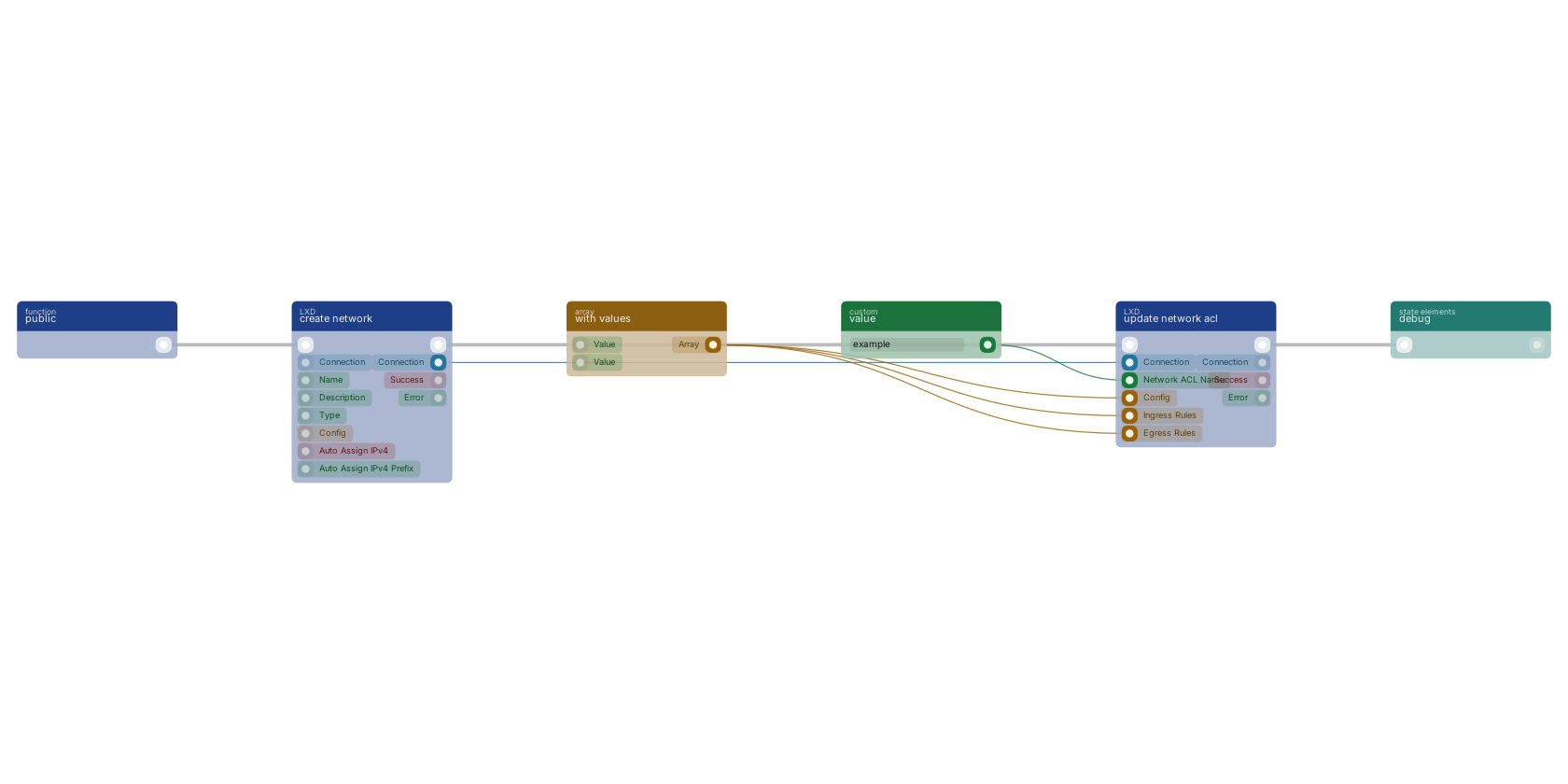

A typical wiring for update network acl: a function trigger starts the flow; create network feeds the connection pin; value feeds the name pin; with values feeds the config pin; with values feeds the ingress_rules pin; with values feeds the egress_rules pin; the flow out pin feeds debug.
Version history
Introduced in v13.0.9.
Last modified in v15.0.0.
