get server info

This block is part of the virtualisation group and was last modified in core v15.0.0.

LXD integration
get server info v13.0.9 Updated v15.0.0

Retreives the information about the LXD server.

In pins 1 + flow
  • flow
  • Connection lxdconnection required

    The LXD connection

Out pins 4 + flow
  • flow
  • Connection lxdconnection

    The LXD connection

  • Success condition

    If successful, this pin returns true.

  • Server Info object

    The info of the server.

  • Error value

    Error message if the server info could not be requested.

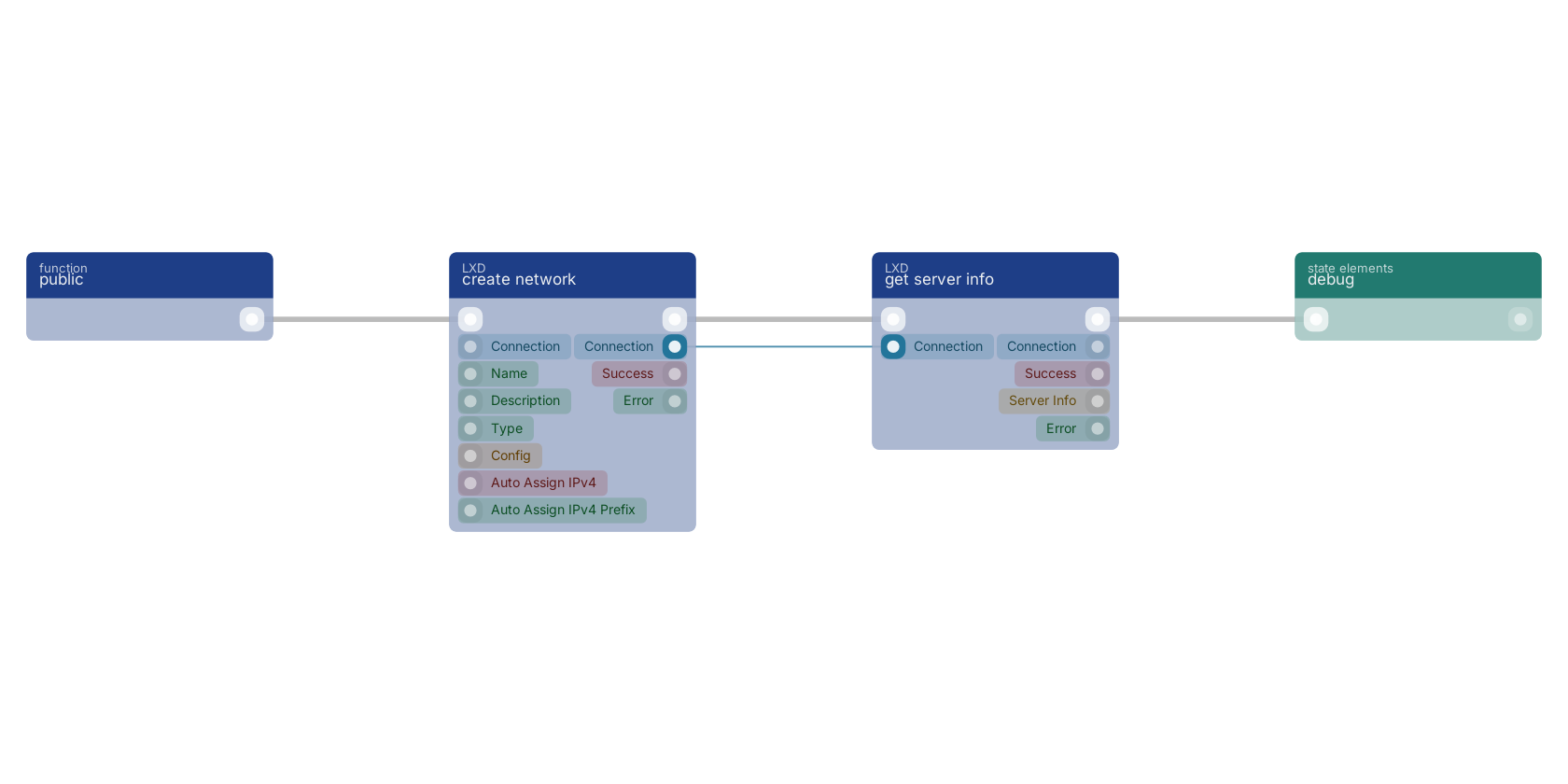

A typical wiring for get server info: a function trigger starts the flow; create network feeds the connection pin; the flow out pin feeds debug.

Studio canvas example for the get server info block: typical wiring for get server info.

Version history

Introduced in v13.0.9.

Last modified in v15.0.0.
