spark on disconnect
This block is part of the websocket group and was last modified in core v10.4.28.
spark on disconnect v10.4.28 Executes a given function if a spark disconnects.
- flow
flow - clear all
conditionClears all previously given disconnect function
- flow
flow - success
condition - error
value - on disconnect
execute_function
Registers the function wired to on_disconnect to run LATER, when the current WebSocket connection drops; the block itself returns immediately with success=true, and the function receives the connection's channel list on its channels pin. success=false with error "No spark found" without a WebSocket, DISCONNECT_NOT_SUPPORTED when the connection cannot register callbacks, or "No function connected" when on_disconnect is unwired. Does nothing in simulation. The clearall pin is declared but not read by the Go executor.

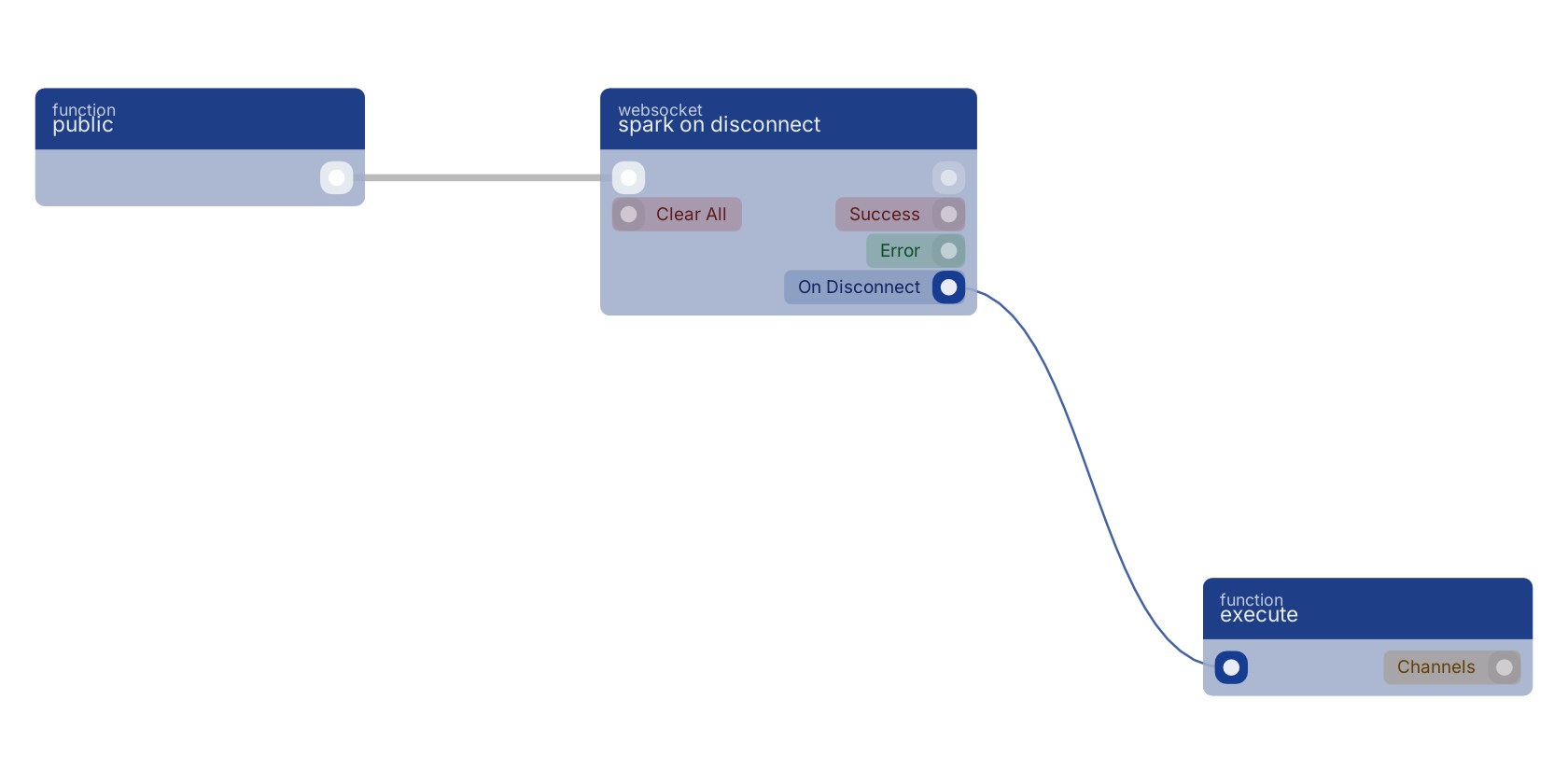

A typical wiring for spark on disconnect: a function trigger starts the flow; the function out pin wires to an execute block.
Version history
Introduced in v10.4.28.
