websocket subscriptions
This block is part of the websocket group and was last modified in core v13.0.5.
websocket subscriptions v13.0.5 Returns all subscriptions registered on the current websocket.
In pins 0 + flow
- flow
flow
Out pins 3 + flow
- flow
flow - success
condition - error
value - channels
array
Outputs the channel names the current WebSocket connection is subscribed to on channels with success=true. Without a WebSocket connection: success=false, error=MISSING_WEBSOCKET, channels=[].

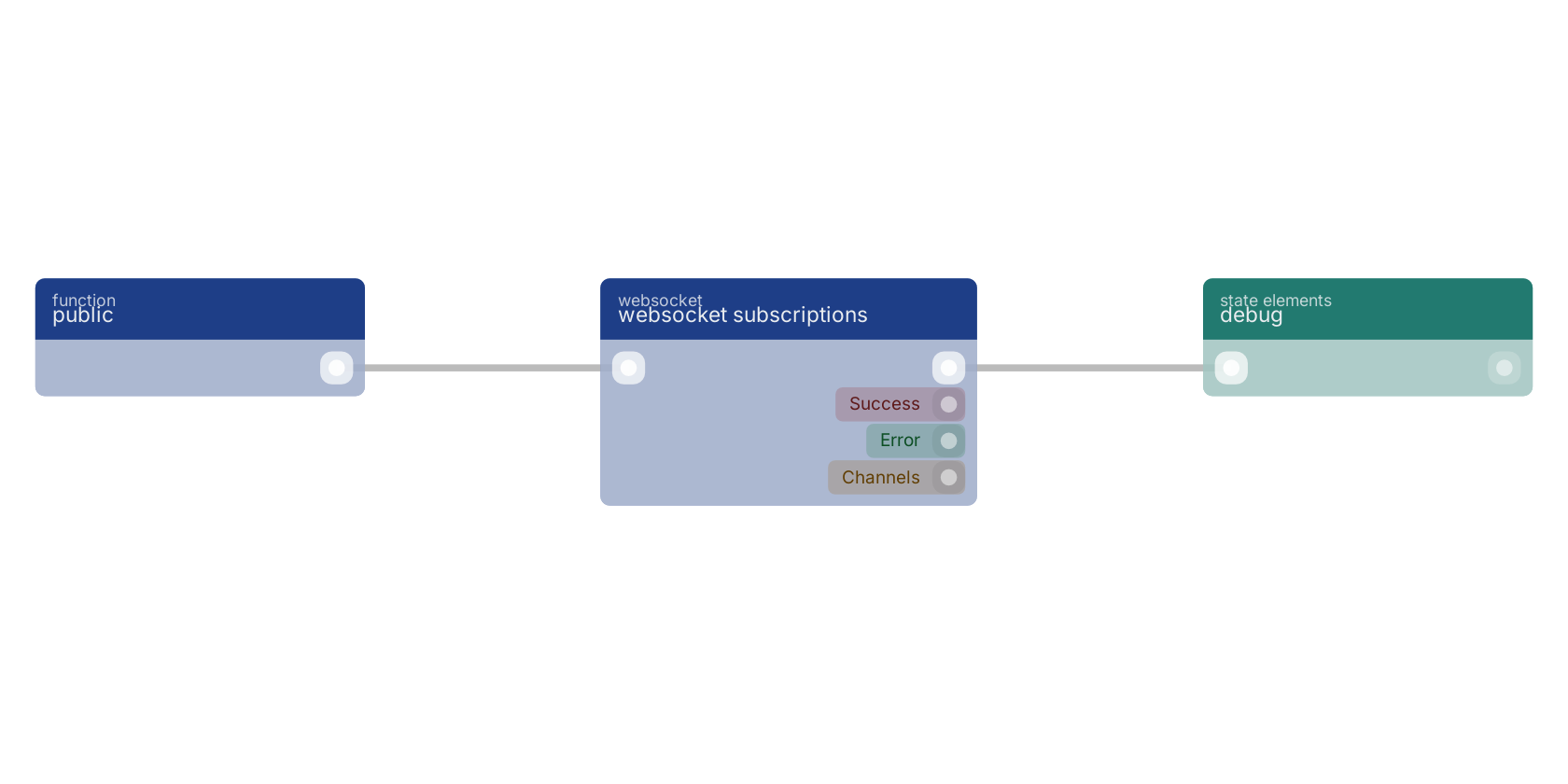

A typical wiring for websocket subscriptions: a function trigger starts the flow; the flow out pin feeds debug.
Version history
Introduced in v13.0.5.
