reply with xml from json
This block is part of the xml group and was last modified in core v13.0.5.
reply with xml from json v13.0.5 Reply to any httpconnection with XML using a JSON object
In pins 6 + flow
- flow
flow - connection required
httpconnection - code
numberHTTP status code to return on this response.
- type
valueSets the Content-Type HTTP header.
- Headers
array<object>Custom HTTP Headers to set, Array of Objects [{ key: Value, value: Value }]
- XML Root required
value - data required
object
Out pins 1 + flow
- flow
flow - connection
httpconnection

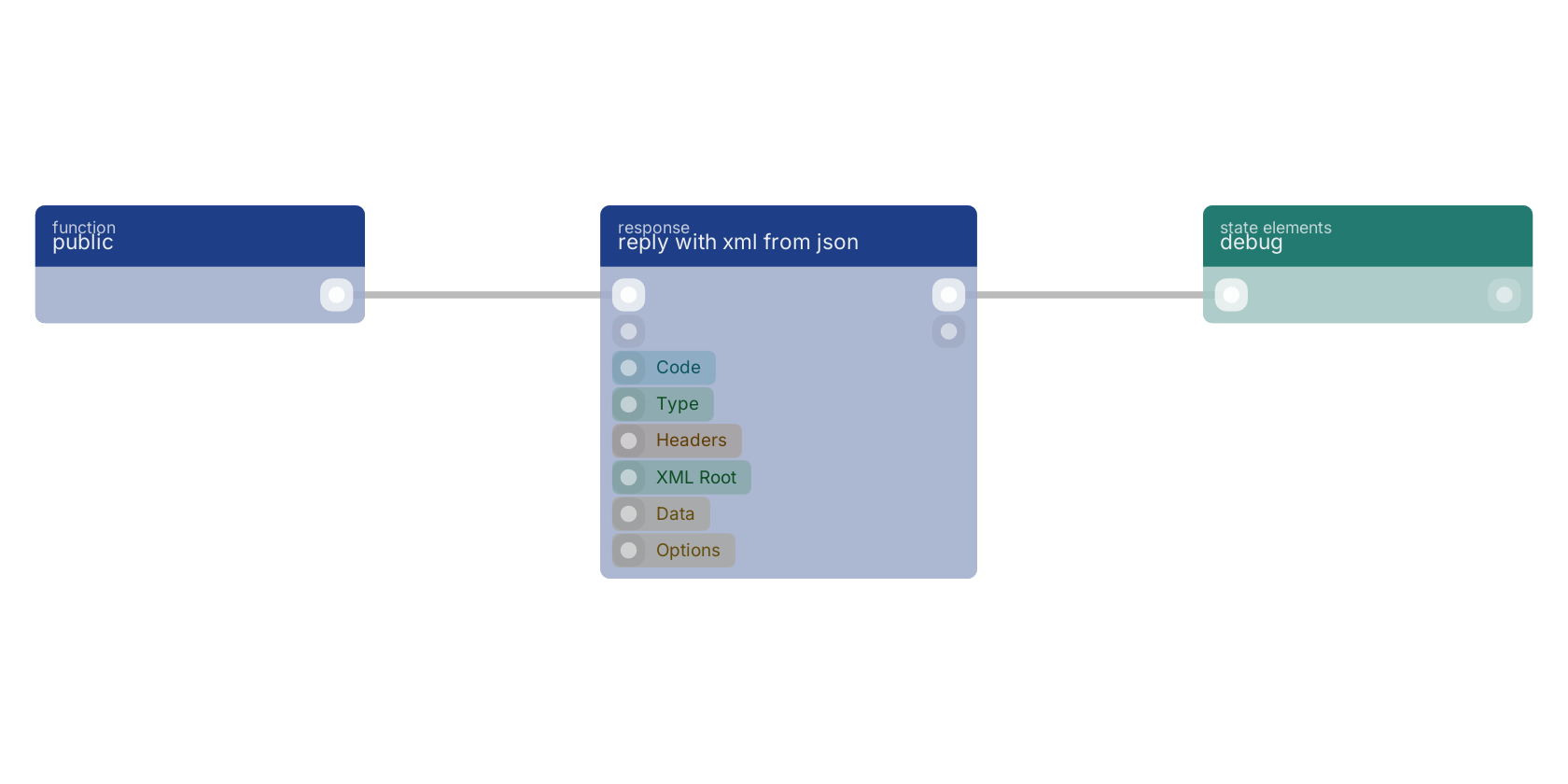

A typical wiring for reply with xml from json: a function trigger starts the flow; the flow out pin feeds debug.
Version history
Introduced in v13.0.5.
