reply with xml

This block is part of the xml group and was last modified in core v13.0.5.

reply with xml httpconnection v13.0.5

Return to any httpconnection with XML content

In pins 5 + flow

flow
flow
connection required
httpconnection
code
number
HTTP status code to return on this response.
Default 200
type
value
Sets the Content-Type HTTP header.
Default text/xml
Headers
array<object>
Custom HTTP Headers to set, Array of Objects [{ key: Value, value: Value }]
xml required
value

Out pins 1 + flow

flow
flow
connection
httpconnection

Sends the xml pin string verbatim as the response body : no escaping or conversion. Content-Type text/xml unless the type pin overrides it, status from the code pin (default 200); a falsy xml value sends an empty string. Flushes immediately mid-flow; an unwired or nil connection sends nothing and outputs nil.

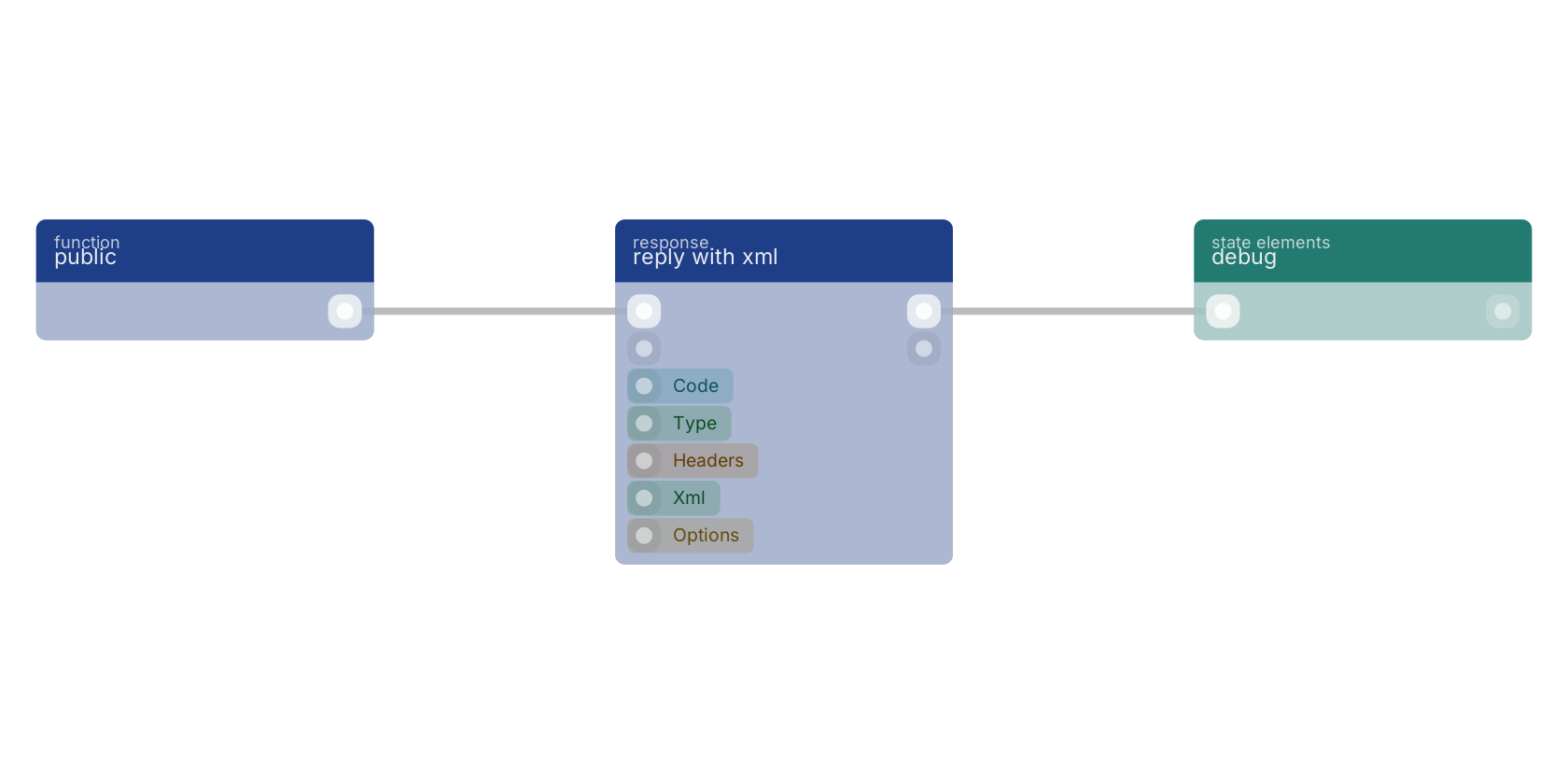

A typical wiring for reply with xml: a function trigger starts the flow; the flow out pin feeds debug.

Version history

Introduced in v13.0.5.
