barcode

This block is part of the zpl group and was last modified in core v10.4.28.

barcode zpl v10.4.28

In pins 2

Orientation required
value
N=Normal | R=Rotated 90 degrees | I = Rotated 180 degrees | B = Rotated 270 degrees
Height required
number

Out pins 1

zpl
zpl

b2

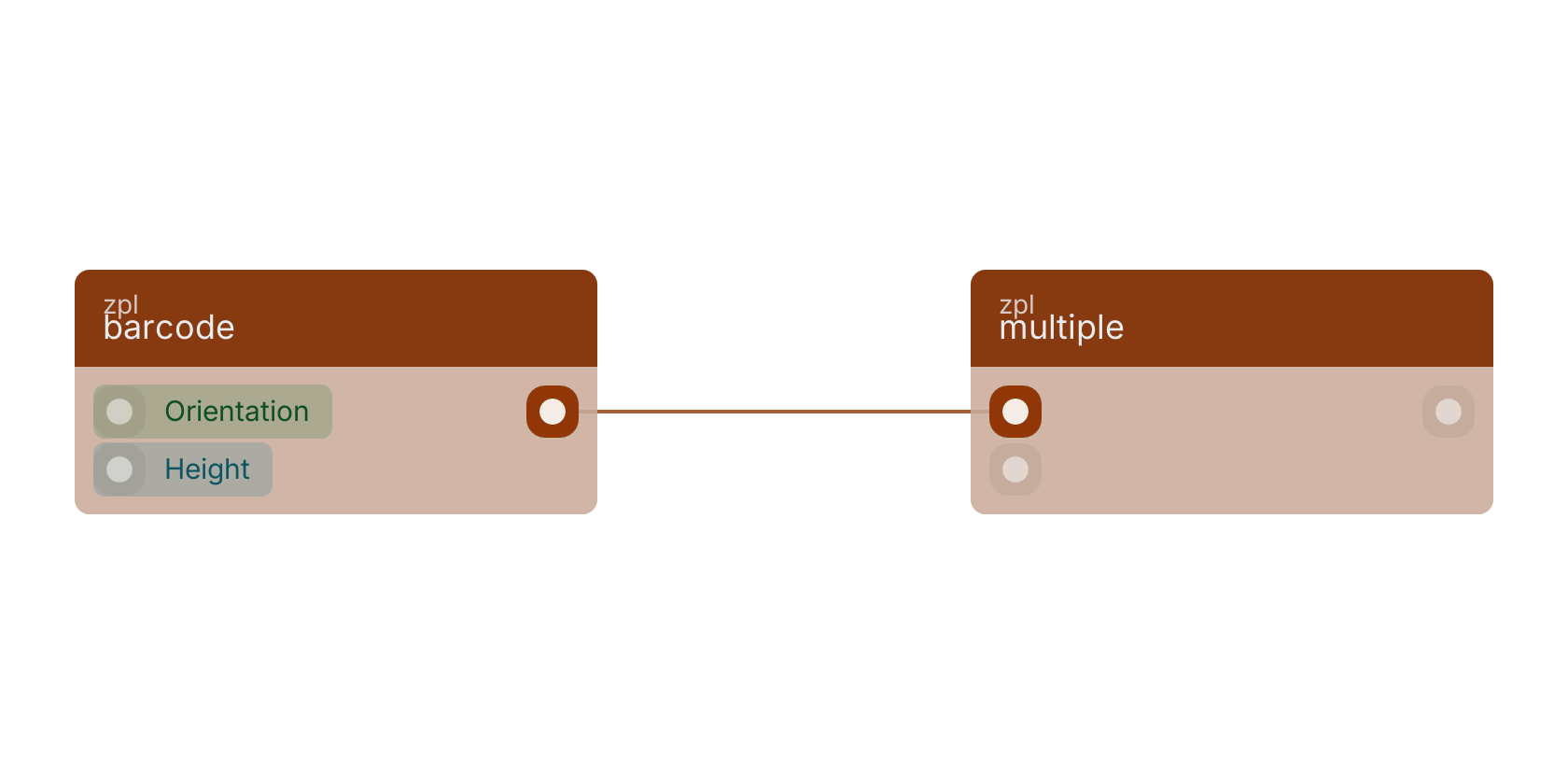

A typical wiring for barcode: the zpl out pin feeds multiple.

Studio canvas example for the barcode block: typical wiring for barcode.

Version history

Introduced in v10.4.28.
