matrix code

This block is part of the zpl group and was last modified in core v10.4.28.

matrix code zpl v10.4.28

In pins 6

Orientation required
value
N=Normal | R=Rotated 90 degrees | I = Rotated 180 degrees | B = Rotated 270 degrees
Height required
number
Quality required
number
0 (default), 50, 100 or 200
Columns required
number
Range 9-49
Rows required
number
Range 9-49
Data Type required
value

Out pins 1

zpl
zpl

bx

matrix

barcode

A typical wiring for matrix code: the zpl out pin feeds multiple.

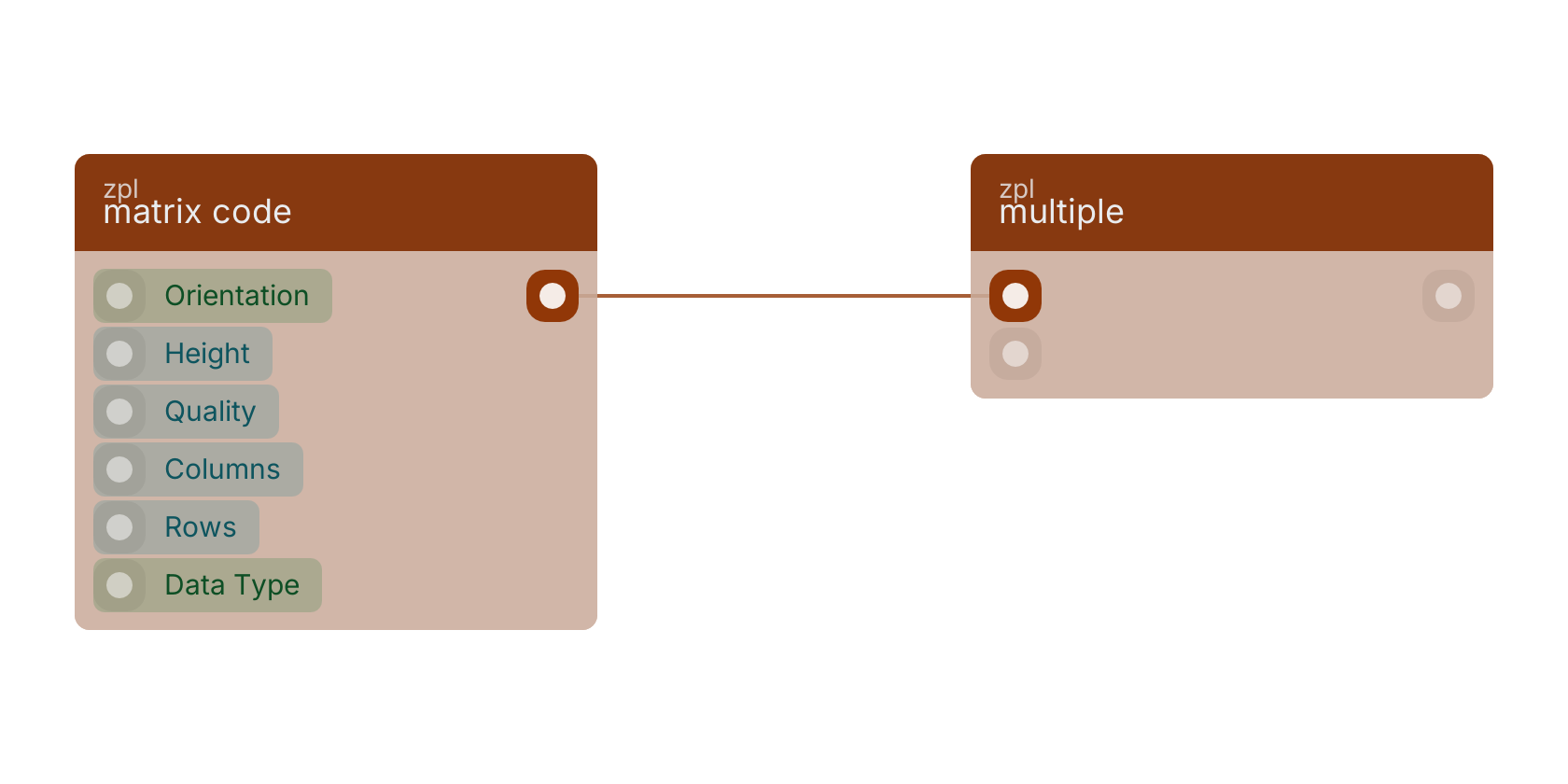

Studio canvas example for the matrix code block: typical wiring for matrix code.

Version history

Introduced in v10.4.28.
