if

This block is part of the zpl group and was last modified in core v10.4.28.

if zpl v10.4.28

In pins 3

true required
zpl
false required
zpl
boolean required
condition

Out pins 1

ZPL
zpl

branch

else

condition

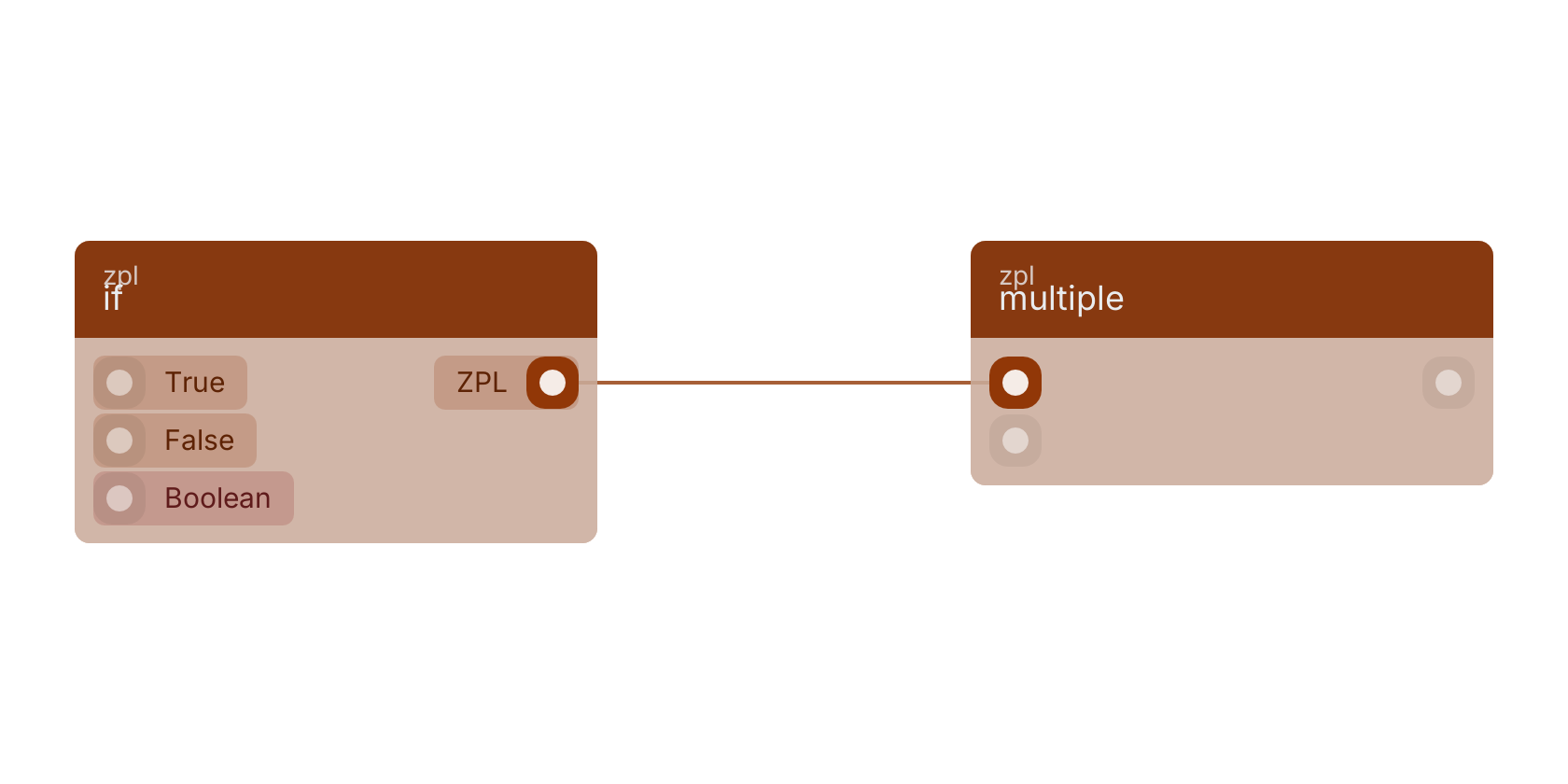

A typical wiring for if: the zpl out pin feeds multiple.

Studio canvas example for the if block: typical wiring for if.

Version history

Introduced in v10.4.28.
